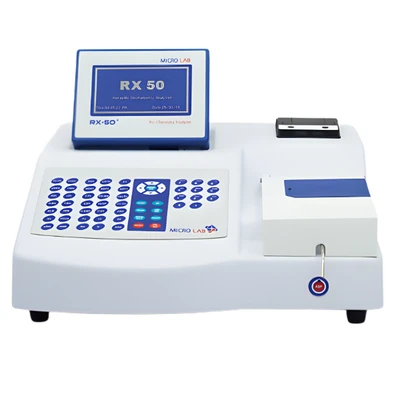

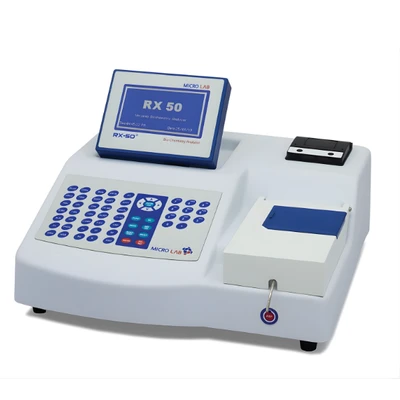

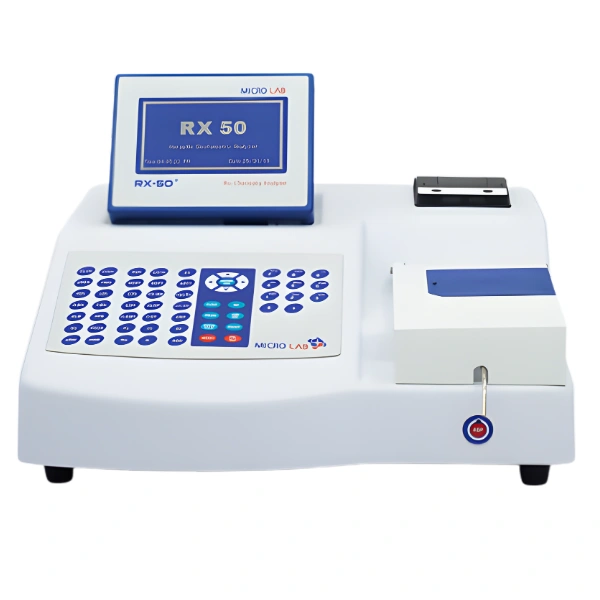

RX-50 Micro Lab Biochemistry Analyzer

New

Specifications

Principle : Absorption spectrometry
Range of measurement From : – 0.1 to 3.0A for 340nm, – 0.1 to 3.5A WL range 405 to 670nm
Nominal spectral range : Automatic via filter wheel
Filters : 340, 405, 450, 505, 546, 578, 630 and 670nm interference type
Bandwidth : 8 nm (± 2nm)
Reading error : ± 5% at 0.10 A / ± 2% at 1.00 A / ± 2% at 2.00 A
Light source : Quartz Halogen lamp 12 V / 20 W, 2000 hours Optional 6V/ 10 W
Zero : Automatic
Settings : Monochromatic and Bichromatic readings.
Detector : Schottkey type Photodiode - Silicon
Power Consumption: Maximum < 80W
Operating Temperature: 10° to 40° C
Maximum Relative Humidity: 80%
Dimensions: 45 cm x 41 cm x 17 cm (Note: One source also lists 38 cm x 41 cm x 15 cm. Please confirm specific dimensions.)
Weight: 6 kgs
Frequency: 50 - 60 Hz
Voltage: 110-220V

highlights

Versatile semi-automatic biochemistry analyzer designed for hospital and laboratory use.
Features user-friendly software for efficient operation.
Supports multiple wavelengths with a comprehensive set of filters.
Includes quality control (QC) capabilities for reliable results.
Compact and lightweight design for convenient placement.

Use Cases :

Hospital Laboratories
Clinical Diagnostic Labs
Research Institutions

Key Features :

User friendly software
End Point Method - Storage of Abs of Reagent blank in memory.
Editing of patient iD, Name (12 characters), Factor Print out of laboratory name & Doctor's name.
For Kinetic test: On line Graph & OD. Graph editing facility. Estimation of result.
Air purge between samples.
Coagulation test like PT with parameters ISI value / INR / Ratio, APTT.
Storage of 1000 test results in the memory with patient ID.
Calculator for lipid profile / globulin ratio / S. Iron TIBC / bilirubin
Storage of 1000 test results in the memory with patient ID.
USB Keyboard, data backup using USB flash drive.
Lamp Saver mode.
35 Direct Test Keys for Test Selection.
Battery Back-up for 90 mins - Optional
Utility Mode for Self diagnostics.
Sample Type : Serum / Plasma / CSF / Urine / Whole Blood / Hemoiysate.

Methods of Calculations :

Absorbance
End Point with standard / factor
Kinetics
Fixed time
Differential
Coagulation
Multipoint upto 10 standards

Warranty

No Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Micro Lab RX-50 Biochemistry Analyzer is a highly versatile and user-friendly solution designed to meet the diagnostic needs of hospitals and clinical laboratories. Equipped with intuitive software, this semi-automatic analyzer simplifies complex biochemical tests, allowing for efficient workflo...

Other Details

EquipMedy.com supplies a focused range of laboratory analyzers, including RX 50 and RX-50 V biochemistry analyzers, ARX-199/199i biochemistry analyzers, electrolyte analyzers, and touch screen bench-top biochemistry systems. The goal is to provide reliable, easy-to-use diagnostic equipment that supports accurate testing and smooth workflow in clinical and research laboratories.
