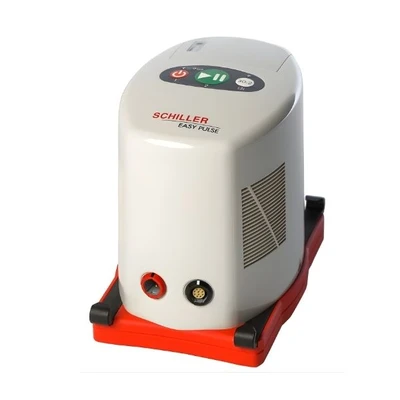

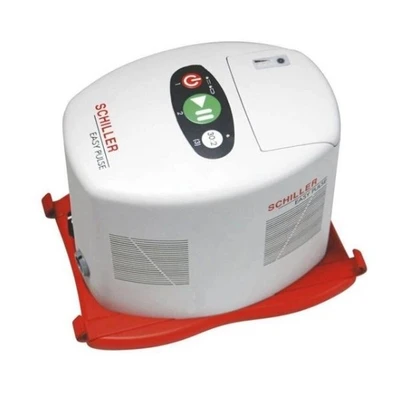

Schiller Easy Pulse CPR Device

Name: Schiller Easy Pulse CPR Device
Brand: Schiller
SKU: d08e56f2-ec54-4c2d-b51e-9197d3019b2b
Rating: 4.2 (55 reviews)

New

Quantity :

Specifications

Device Type : Mechanical CPR / automated chest compression system
Weight : ~3.5 kg (with battery)
Dimensions (H × D × W) : ~180 × 220 × 150 mm
Compression Rate : ~100 compressions per minute
Compression Depth : ~40–52 mm (depends on chest size)
Modes : Continuous or 30:2 cycle
Battery Life : ~45 min per battery
Power : Rechargeable batteries; external DC/USB input
Chest Size Range : Up to ~135 cm circumference
Radiolucency : Yes — allows imaging without pause
Operator : Designed for one person setup (trained)
Protection : Typically dust & moisture rated (varies by market)

highlights

Portable mechanical CPR solution — reduces rescuer fatigue and ensures consistency.
Rapid attachment and operation (trained user can attach in <15 s).
Versatile usage environments, including air transport and confined spaces.
Reliable battery runtime — roughly 45 min, with battery management options.

in the box

Easy Pulse CPR Device
Rechargeable Li-ion batteries (usually 2)
Charging station / power supplies (12–48 VDC input capability)
Slider & attachment straps
User manual and safety documentation
(Optional) Software update interface / USB cable

Use Cases :

✔ Emergency medical services (ambulance, air rescue, maritime transport)
✔ Hospitals — ICU, emergency department, operating rooms, hemodynamic labs
✔ During long patient transport (e.g., helicopter, ambulance)
✔ Settings with limited personnel — e.g., battlefield or isolated rescue situations
✔ Locations equipped with AEDs and advanced resuscitation tools

Key Features :

Automatic chest compressions at ~100 compressions per minute and ~5 cm depth for effective CPR quality.
Continuous mode or 30:2 cycle mode (30 compressions, 2 breaths).
Unique 3D compression system (stamp-and-band) for maximum efficiency.
Compact and lightweight (~3.5 kg with battery) for transport and confined spaces like ambulances or aircraft.
Intuitive controls — simple interface, quick attachment.
Slider & buckle system enables one person to set up the device quickly (training dependent).
Rechargeable battery pack with ~45 min continuous operation per battery.
Replaceable batteries and external DC input possible; USB connection for updates/options.
Suitable for use during transport, in ICU/OR settings, and complex clinical environments.
Radiolucent (X-ray translucent) design allows imaging without interrupting CPR.

Warranty

Product Description

The Schiller Easy Pulse is an automatic mechanical CPR (cardiopulmonary resuscitation) device designed to provide consistent, high-quality chest compressions during cardiac arrest or resuscitation attempts. It is portable, easy to use, and intended to be a reliable alternative to manual CPR, especia...
