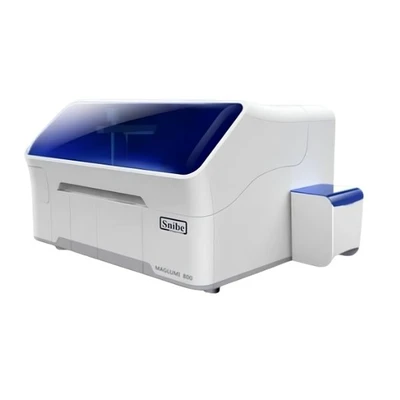

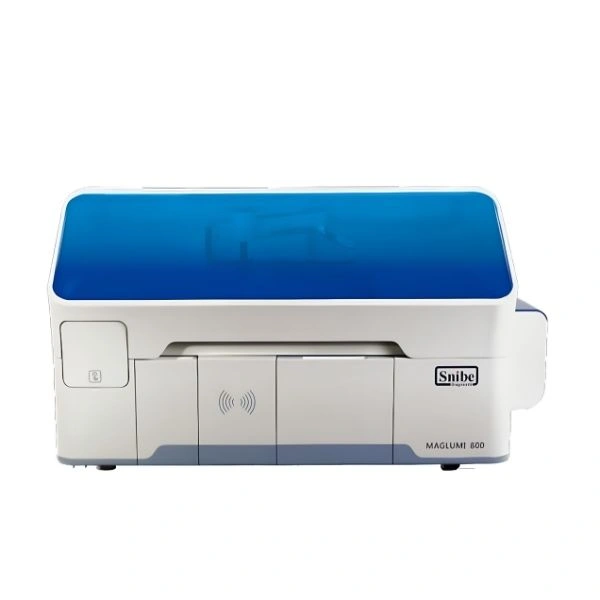

Snibe Maglumi 800 Fully Automated Chemiluminescence Analyzer
New0.0|0 Ratings
Quantity :
1
Specifications
- Product : MAGLUMI 800
- Manufacturer : Snibe / Shenzhen New Industries Biomedical Engineering Co., Ltd.
- System Type : Fully Automated Chemiluminescence Immunoassay Analyzer
- Technology : Flash Chemiluminescence
- Label : ABEI
- Separation Technology : Superparamagnetic microbeads
- Throughput : Up to 180 tests/hour
- Time to First Result : 17 minutes
- Sample Capacity : Up to 40 sample tubes
- Reagent Capacity : 9 reagents onboard
- Cuvette Capacity : Up to 240
- Operation Modes : Random, Batch, STAT
- Sample Loading : Continuous loading
- Reagent Loading : Continuous loading
- Sample Identification : Barcode / automatic numbering
- Reagent Identification : RFID
- Reagent Storage : Refrigerated
- Sample Storage : Refrigerated
- Incubation Temperature : 36.8 ± 0.5°C
- Clot Detection : Yes
- Liquid Level Detection : Yes
- High-Concentration Sample : Automatic/optional dilution
- Reagent Type : Ready-to-use integrated reagent kit
- Calibration : 2-point calibration to adjust master curve
- Calibration Stability : Maximum 4 weeks
- Operating System : Windows 7 / Windows 10 listed in brochure
- Display : Color screen
- LIS Connectivity : Bidirectional TCP/IP and COM
- Power Supply : AC 110/230 V, 50/60 Hz
- Maximum Power : 630 W
- Dimensions : 102 × 72 × 56 cm
- Weight : 73 kg
highlights
- Fully automated CLIA system
- Throughput of up to 180 tests/hour
- 40 sample positions
- 9 reagent positions
- Up to 240 cuvettes on board
- 17-minute time to first result
- Random, Batch and STAT operation modes
- Continuous loading of samples and reagents
- Refrigerated sample and reagent areas
- RFID-based reagent identification
- Barcode recognition for samples
in the box
- MAGLUMI 800 analyzer
- Automated cuvette loading system
- Sample loading area
- Refrigerated sample area
- Refrigerated reagent area
- Reagent RFID identification system
- Barcode/sample identification system
- Pipetting system
- Incubation system
- Magnetic separation/washing system
- Chemiluminescence detection chamber
- Operating/control computer with color display
- LIS communication interfaces
Use Cases :
- Small and medium-sized diagnostic laboratories
- Hospitals and clinical laboratories
- Routine immunodiagnostic testing
- Thyroid testing
- Fertility and reproductive-hormone testing
- Cardiac marker testing
- Diabetes/metabolic testing
- Infectious-disease testing
- Tumor-marker testing
- Other immunoassay applications supported by the MAGLUMI test menu
Key Features :
- Fully automated CLIA system
- Throughput of up to 180 tests/hour
- 40 sample positions
- 9 reagent positions
- Up to 240 cuvettes on board
- 17-minute time to first result
- Random, Batch and STAT operation modes
- Continuous loading of samples and reagents
- Refrigerated sample and reagent areas
- RFID-based reagent identification
- Barcode recognition for samples
- Integrated reagent information and master-curve data through RFID
- Clot detection
- Liquid-level detection
- Automatic/optional dilution for high-concentration samples
- Constant incubation at 36.8 ± 0.5°C
- Bidirectional LIS connectivity
- Titanium pipetting needle with TEFLON coating to reduce carry-over
- Ready-to-use reagent kits with calibrators
- Calibration stability of up to 4 weeks.
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The MAGLUMI 800 is a fully automated Chemiluminescence Immunoassay (CLIA) analyzer from Snibe Diagnostic, designed primarily for small- and medium-sized laboratories. It uses flash chemiluminescence technology with ABEI labeling and superparamagnetic microbead separation technology. The analyzer pro...
Other Details
Similar Products

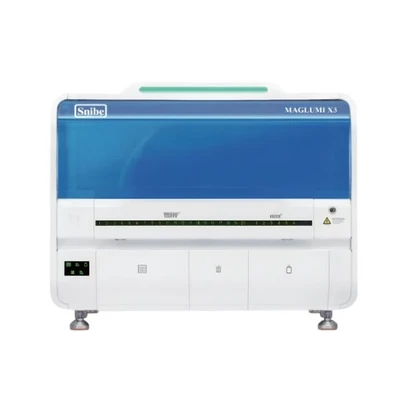

Snibe Maglumi X3 Fully Auto Chemiluminescence Immunoassay CLIA System
