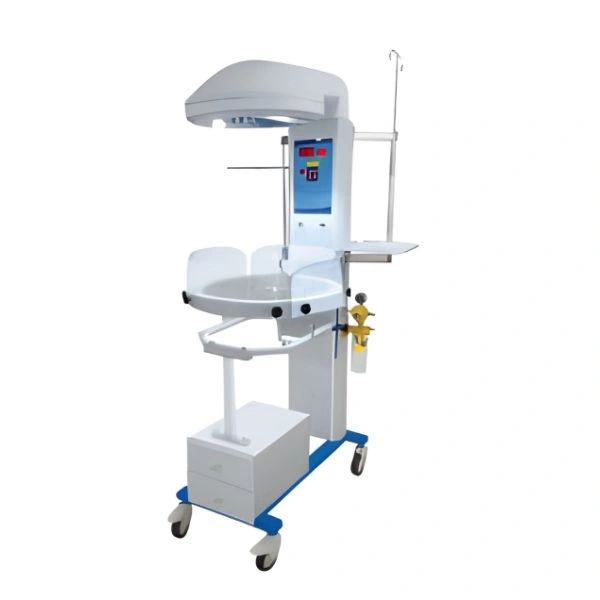

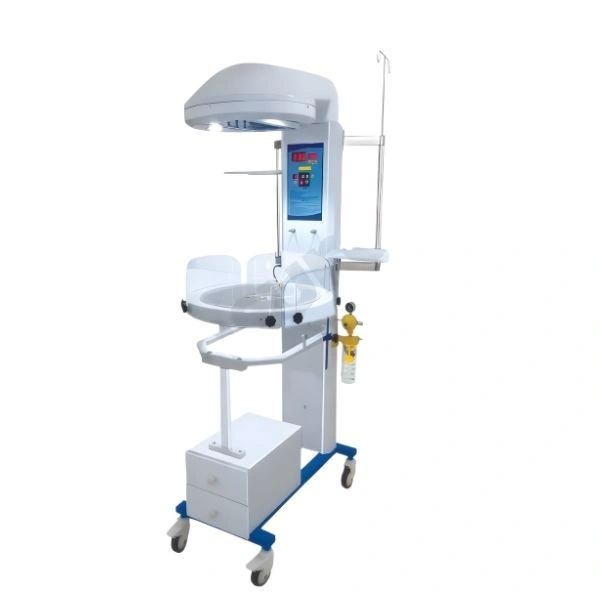

S.S Technomed Tiana -D2 Open Care System

New

Specifications

Product Name : Tiana-D2 Open Care System
Brand : S.S Technomed
Type : Neonatal Open Care System / Infant Radiant Warmer
Control System : Microprocessor controlled
Operating Modes : Servo (Baby), Manual, Optional Air Mode
Heater Type : Silica / Quartz / Ceramic Radiant Heater
Heater Power : 650 Watts
Power Supply : 220V / 50Hz
Fuse : 5 Amp
Temperature Display : Separate Skin & Air Temperature Display
Display : Large LCD panel
Flow Range (Resuscitator) : 5–15 LPM
Height : 1850 mm
Length : 1050 mm
Width : 650 mm
Phototherapy : LED phototherapy (optional / integrated)
Safety Alarms : High/Low Temp, Power Failure, System Failure, Probe Failure, Timer
Application : Neonatal care, NICU, hospitals & clinics
Country of Origin : India
Certification : CE Certified, ISO 9001

highlights

Advanced microprocessor-based temperature control
Servo-controlled warming using skin temperature probe
Automatic switch to manual mode in case of probe failure
Air temperature safety cutoff above 39°C (optional)
Even heat distribution using silica/quartz/ceramic heater
Large baby bed with fold-down side panels for easy access
Integrated phototherapy and examination lighting
Event logging via built-in printer
Modular design with optional oxygen, suction, and resuscitation modules
User-programmable functions such as timer and pre-warming mode

in the box

Tiana-D2 Open Care System main unit
Radiant heater assembly
Baby bed with fold-down side panels
Skin temperature probe
Control panel with LCD display
Examination light
Power cable and fuse
User manual
Optional accessories (depending on configuration): Infant resuscitator/ Oxygen supply module/ Suction unit/ LED phototherapy unit

Use Cases :

Neonatal Intensive Care Units (NICU)
Delivery rooms and labor wards
Pediatric wards
Neonatal resuscitation areas
Post-delivery thermal stabilization of newborns
Treatment of neonatal jaundice (with phototherapy)
Monitoring and warming of premature or low-birth-weight infants

Key Features :

Microprocessor-controlled system with self-check circuitry for skin, air, and manual control modes.
Three operational modes: Servo (baby mode), manual mode, and optional air mode.
Large LCD display showing heater power and operational parameters.
Separate displays for skin temperature and air temperature.
Temperature unit switching between °C and °F.
Comprehensive alarm system (audio and visual).
650-Watt radiant heater for rapid and uniform warming.
Integrated examination light within heater assembly.
Swivel heater head for easy access and X-ray procedures.
LED phototherapy unit for neonatal jaundice treatment.
Infant resuscitator with adjustable flow range (5–15 LPM).
Inbuilt printer for event logging and records.
Optional accessories: resuscitator, suction unit, oxygen supply.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Tiana-D2 Open Care System is a neonatal care device designed to provide controlled thermal support and easy access to newborn infants, especially premature or low-birth-weight babies. The system integrates a microprocessor-controlled radiant warmer, advanced monitoring features, and safety alarm...
