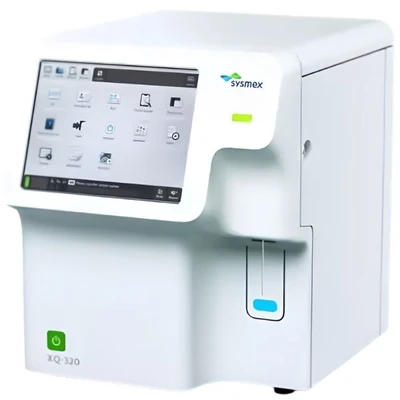

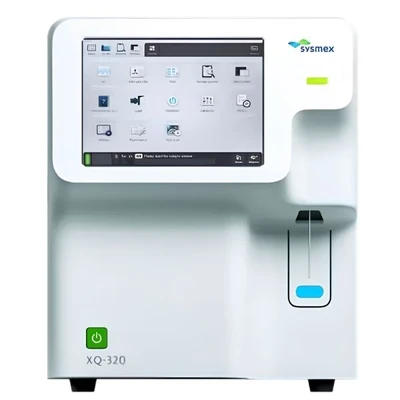

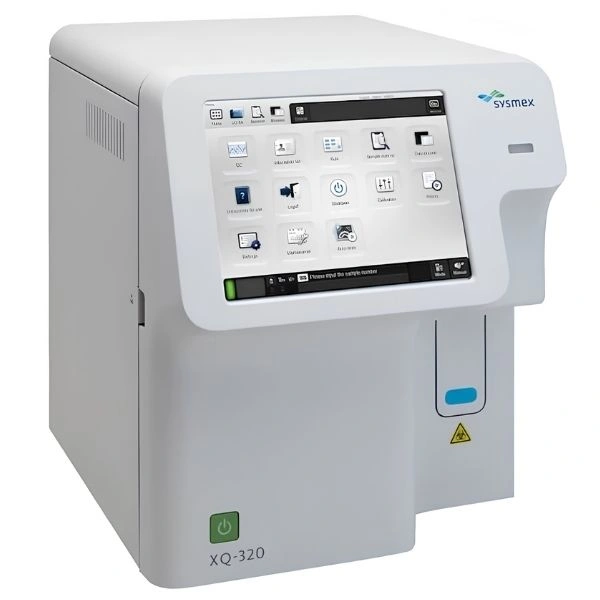

Sysmex XQ-320 Hematology Analyzer
New0.0|0 Ratings
Quantity :
1
Specifications
- Model : XQ-320
- Analyzer Type : Automated Hematology Analyzer
- Differential Type : 3-Part WBC Differential
- Parameters : 17–20 parameters (region dependent)
- Measurement Principle : DC Detection (WBC/RBC/PLT), Non-cyanide HGB Method
- Throughput : 70 samples/hour (WB), 60 samples/hour (PD)
- Sample Volume (WB) : 16 µL
- Sample Volume (Pre-diluted) : 65 µL
- Display : LCD Touchscreen
- Data Storage : 500,000 sample results
- QC Storage : 99 QC files
- Connectivity : Serial Port, LAN, USB
- Dimensions : Approx. 365 × 450 × 440 mm
- Weight : Approx. 22 kg
- Power Supply : AC 100–240 V, 50/60 Hz
- Power Consumption : ≤160 VA
- Operating Temperature : 15–30°C
- Operating Humidity : 20–85%
highlights
- High throughput: Up to 70 samples/hour
- Fast reporting: CBC results in under 60 seconds
- Low blood requirement: Useful for neonatal/pediatric testing
- Reliable QC: Onboard Levey-Jennings charts and QC lockout
- Large storage capacity: Stores up to 500,000 sample records
- Traceability: Reagent lot tracking for each sample
- Space-saving design: Suitable for compact lab setups
in the box
- Sysmex XQ-320 Main Analyzer Unit
- Power Cable
- User Manual / Operating Instructions
- Sample Probe Assembly
- Starter Reagent Kit (varies by distributor)
- QC Material (optional)
- Calibration Material (optional)
Use Cases :
- Hospital laboratories
- Diagnostic laboratories
- Physician office laboratories
- Emergency / STAT testing labs
- Community healthcare centers
- Routine CBC screening
- Monitoring anemia, infection, leukemia, thrombocytopenia, and other hematological disorders
Key Features :
- Fully automated CBC analysis with 3-part WBC differential
- Provides results in less than 1 minute
- Compact design for small laboratory spaces
- Very low sample aspiration volume (16 µL) — ideal for pediatric or limited samples
- Dedicated neutrophil count
- Touchscreen user interface for easy operation
- Automatic wake-up and quick shutdown functions
- Minimal weekly maintenance
- Supports HL7 connectivity for LIS/EMR integration
- Advanced QC management with BeyondCare™ Quality Monitor
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The Sysmex XQ-320 Automated Hematology Analyzer is a compact, fully automated 3-part differential hematology analyzer designed for low- to medium-volume laboratories, hospitals, physician office labs, and diagnostic centers. It delivers fast and accurate Complete Blood Count (CBC) results with relia...
