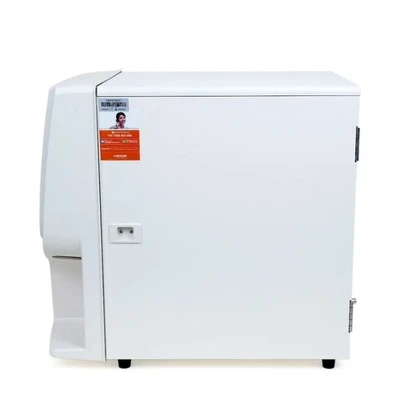

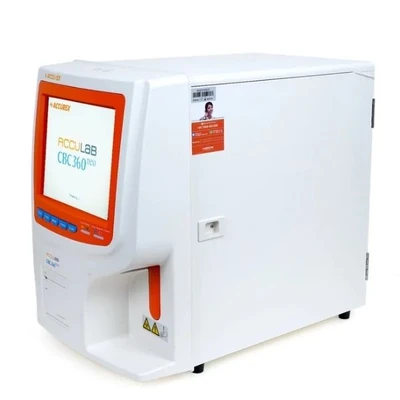

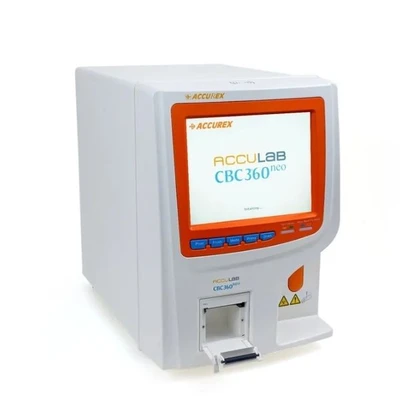

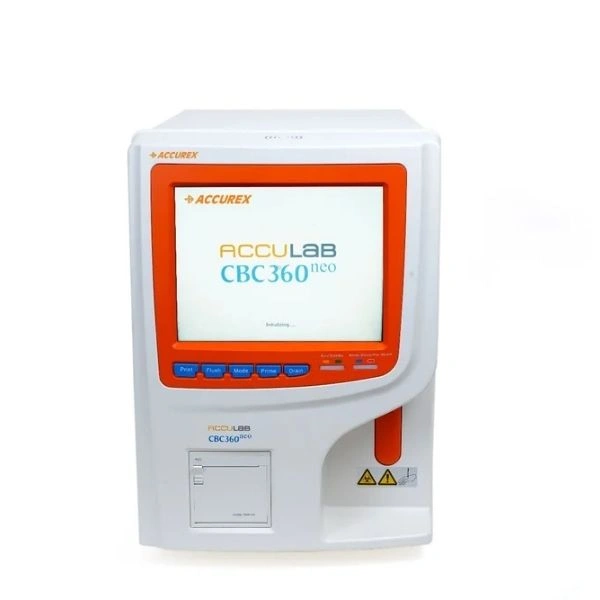

Accurex Acculab CBC 360 Neo Automated Hematology Analyzer

New

Specifications

Measurement principle: Electrical resistance for counting RBC, WBC & Platelets Colorimetric estimation of HGB at 540 nm.
Parameters: WBC, LY, MO, GR, LY%, MO%, GR%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR
Throughout: 60 samples/hour
Micro-aperture: WBC : 100 um RBC / PLT : 68 um
Sample type: Whole blood or pre-diluted sample
Sample volume: Whole blood (venous blood) : 10 ul
Chamber: Pre-diluent (capillary blood) : 20 ul, Pre-diluent (capillary blood) : 20 ul
Reagents: Dual chamber : RBC / Platelets & WBC / HGB
Quality control: 4 QC options : L-J, X-B, X-R & X QC, Graphs plotted with 31 data points.
Data memory: Upto 100,000 (with histogram).
Display: 10.4 inch LCD with 640 x 480 resolution
Printer: Built-in thermal printer
Interface: Support RS-232C, standard network port and USB; keyboard and mouse
Operating environment: Temperature : 15˚C – 35˚C, Humidity : 85% RH
Electrical specification: Voltage : AC 110V/230V 23V Frequency : 50/60 Hz, Power : 180W Fuse specification : 250V/3A

highlights

Fully automated hematology analyzer designed for efficient blood analysis.
Features walk-away operation for enhanced laboratory workflow.
Measures key parameters: WBC, RBC, and HGB.
Equipped with dual chambers for comprehensive analysis.
Includes automated self-checking for reliability and accuracy.

Use Cases :

Routine blood analysis in clinical laboratories.
Efficient hematological testing in hospitals.
Diagnostic workflows requiring walk-away automation.
Monitoring of red blood cell and white blood cell counts.

Key Features :

3-part differentiation of WBC
Automated for — self-checking, background test, calibration, sampling, dilution, mixing, printing, dormancy, alarms, cleaning and maintenance.
High processing speed : 60 samples/hour
Multi-parameter estimation : 20 parameters categorized according to corpuscle type for easy reporting.
Direct command keys for Mode, Prime, Flush, Drain & Record / Print for faster operation.
Run / Standby indicator lights denote the analyzer status i.e. test is being run or analyzer is ready to test.
Whole blood/ Pre-diluent indicator lights denote the sample type in use i.e. whole blood/ pre-diluent.
Dual sample mode with low sample volume: Whole blood (venous) mode : 10 ul;
Pre-diluent (capillary) mode : 20 ul
Audio alarm indication for abnormal findings or system errors.
4 QC methods : L-J, X-B, X-R & X QC
Comprehensive QC graphs with 31 data points for each parameter.
Internal & external probe cleaning facility.
Dormancy mode available to reduce power consumption.
Memory : 100,000 (with histogram).
Dimensions : 670 x 515 x 640 mm
Weight : 27.5 kgs

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Acculab CBC 360 Neo is a 3-part hematology analyzer that utilizes dual chambers to perform simultaneous measurements. One chamber is dedicated to the analysis of RBC and platelets, while the other focuses on WBC and HGB counts. This innovative configuration, combined with its automated capabilit...
