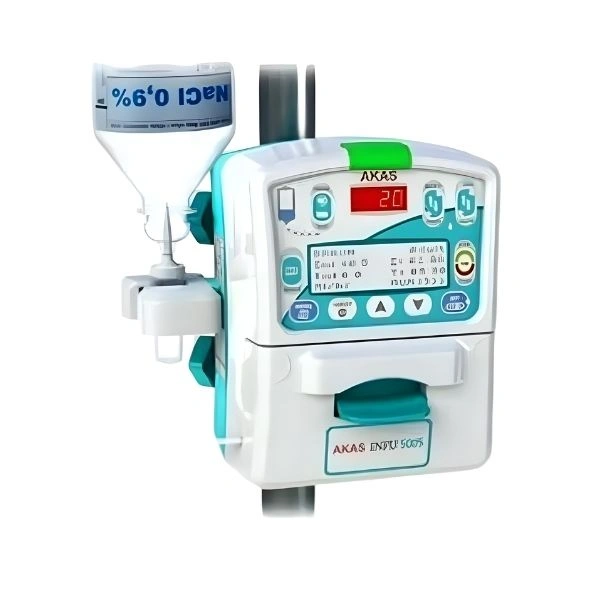

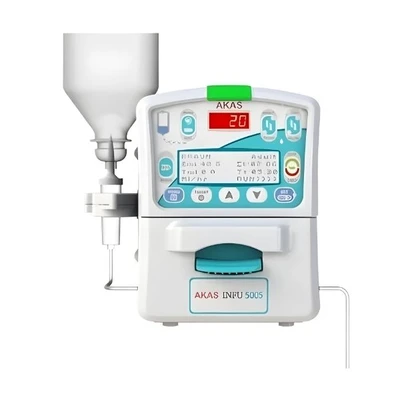

Akas INFU-5005 Infusion Pump

New

4.2|23 Ratings

₹25,000₹49,99950% off

Quantity :

Specifications

Model : INFU-5005 Volumetric Infusion Pump
Device Type : Volumetric cum Drop Counting Infusion Pump
Power Supply : AC 220–240 V ~ 50 Hz
Power Consumption : ~10 VA
Pumping Mechanism : Linear Peristaltic
Display : LCD + 7-segment LED
Infusion Modes : Drop/min & mL/hr
Drop Rate Range : 1 to 150 drops/min (Adult), 1 to 100 drops/min (Pedia)
Volume Rate Range : 0.5 to 1200 mL/hr (Adult), 0.1 to 300 mL/hr (Pedia)
Target Volume : 1 to 9999 mL
Bolus Volume : 0.1 to 50 mL (standard), up to 1000 mL (optional)
Keep Vein Open (KVO) : 0 to 9.9 mL/hr
Alarms : Excess flow, Less flow/occlusion, Air-in-line, Battery low, KVO
Battery Backup : ~5 hrs @ 8 drops/min or 25 mL/hr
Battery Type : Rechargeable Ni-MH, built-in
Dimensions : ~148 × 100 × 190 mm
Weight : ~2.1 kg
Certifications : ISO 13485:2016 (typical)
Safety Features : Free-flow protection, air-in-line detector, sensor malfunction protection
Mounting : Rotatable clamp (pole/rail)
Application : Adult & Pediatric Infusion Therapy

highlights

Accurate Volumetric & Drop Control for precise fluid delivery.
Universal IV Set Support with auto conversion.
Safety-centric Alarms including occlusion, air-in-line, and excess flow alerts.
Battery Backup for uninterrupted operation.
User-friendly Display and Controls for fast clinical setup.

in the box

AKAS INFU-5005 Infusion Pump unit
AC Power Cord
Rechargeable internal battery (built-in)
User Manual / Documentation
Rotatable Mounting Clamp (pole/rail)

Use Cases :

Intensive Care Units (ICU): Continuous controlled infusion of critical medications.
Emergency Rooms: Fast setup and reliable infusion during urgent care scenarios.
General Ward Infusion Therapy: Medication or fluid administration for stable patients.
Gynaecology & Labour Support: Controlled delivery (e.g., oxytocin) with precision.
Pediatric & Adult Patients: Flexible flow rates suitable for different age groups.

Key Features :

Dual Mode Delivery: Supports both drop/min and ml/hr infusion settings for flexibility.
Auto-calculation: Target volume and target time features help automatically compute infusion parameters.
Universal IV Set Compatibility: Works with any IV tubing brand, thanks to an external drop sensor.
Safety Alarms: Includes audible & visual alarms for excess flow, low flow/occlusion, air in line, low battery, and KVO (Keep Vein Open).
Built-in Rechargeable Battery: Provides up to ~5 hours of operation during power interruptions.
Clear Displays: Combines LCD and 7-segment LED for visible data readouts.
Rotatable Clamp: Flexible mounting on mobile poles or rails.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Akas INFU-5005 Infusion Pump is a medical infusion device designed to deliver intravenous fluids—including medications, nutrients, and other therapies—into a patient’s circulatory system at controlled rates. It combines volumetric and drop-count infusion modes, allowing clinicians to choose betw...
