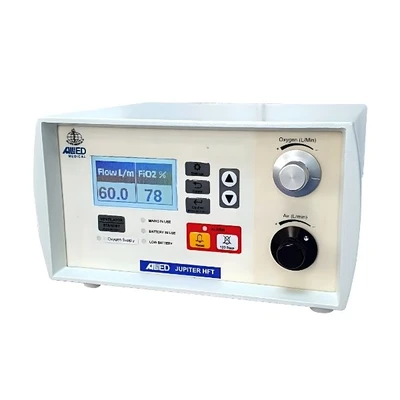

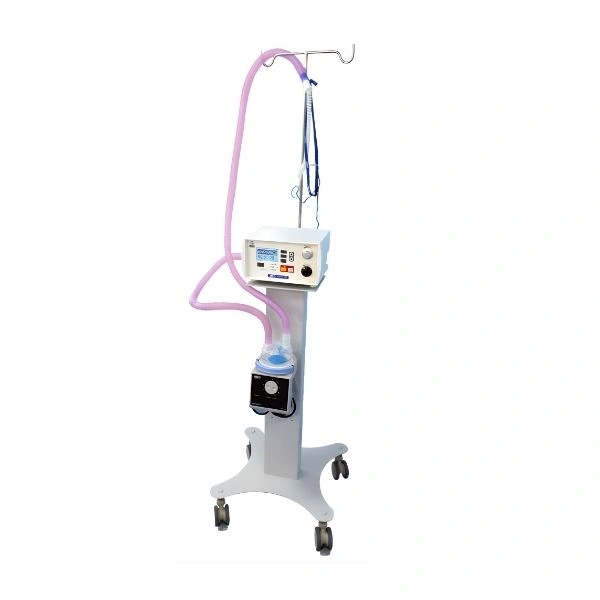

Allied Medical Jupiter HFNC / High Flow Oxygen Cannula Therapy Device

New

₹2,90,000₹375,00023% off

Specifications

Therapy Type : High Flow Nasal Cannula (HFNC) Therapy
Inspiratory Flow Rate : 0–80 L/min (adjustable)
Oxygen Concentration (FiO₂) : 21 % – 100 %
Monitoring : Flow rate & FiO₂ monitoring
Display : 3.2″ LCD (for parameters)
Inlet Oxygen Pressure : 280–700 kPa (45–100 psi)
Power Supply : 220–240 V AC, 50 Hz
Battery Backup : ~2 hrs internal
Alarms : Low battery, Oxygen failure
Main Unit Size : ~H155 × W260 × D215 mm
Trolley Size : ~H935 × W470 × D470 mm
Weight (Main Unit) : ~4.5 kg (without trolley)

highlights

Flow Range: Up to 80 L/min
FiO₂ Control: 21 %–100 %
Heated & Humidified Oxygen Delivery
Built-in Turbine and Blender
Real-time Monitoring
Safety Alarms & Battery Backup
Portable, user-friendly design

in the box

Main HFNC unit with internal turbine
Trolley stand (with mounting)
Heated humidifier
Breathing circuit with high-flow nasal cannula
High-pressure oxygen tubing
Humidifier chamber and distilled water holder
Oxygen sensor
Power cable
Fluid & blood warmer
Feeding pump

Use Cases :

Hypoxemic Respiratory Failure: Helps maintain adequate oxygenation and reduce work of breathing.
Acute Respiratory Conditions: Supports patients with conditions like COPD exacerbations, asthma, or ARDS.
Post-operative Respiratory Support: Enhances oxygenation and secretion clearance after surgery.
ICU & Critical Care: Provides reliable high-flow therapy for spontaneously breathing patients.
Transport & Bedside Use: Portable design allows therapy during intra-hospital movement or at the bedside.

Key Features :

High Flow Delivery: Adjustable inspiratory flow rate from 0–80 L/min to meet patient respiratory needs.
Wide FiO₂ Range: Oxygen concentration control from 21 % to 100 % for tailored therapy.
Heated & Humidified Gas: Supplies heated, humidified gas to improve tolerance and protect airway mucosa.
Built-in Turbine & Blender: Integrated systems for precise flow and oxygen mixing.
Monitoring: Displays flow rate and FiO₂ monitoring for accurate therapy control.
Alarms + Safety: Includes low battery and oxygen failure alarms for safety.
Portable Design: Compact main unit with trolley makes it suitable for ICU, wards, or bedside use.
Battery Backup: Up to ~2 hours internal battery support for uninterrupted therapy.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Allied Medical Jupiter HFNC (High Flow Nasal Cannula / High Flow Oxygen Cannula Therapy Device) is a medical-grade high-flow oxygen delivery system used to provide heated, humidified oxygen-enriched air at high flow rates to patients with respiratory insufficiency. It uses built-in turbine techn...
