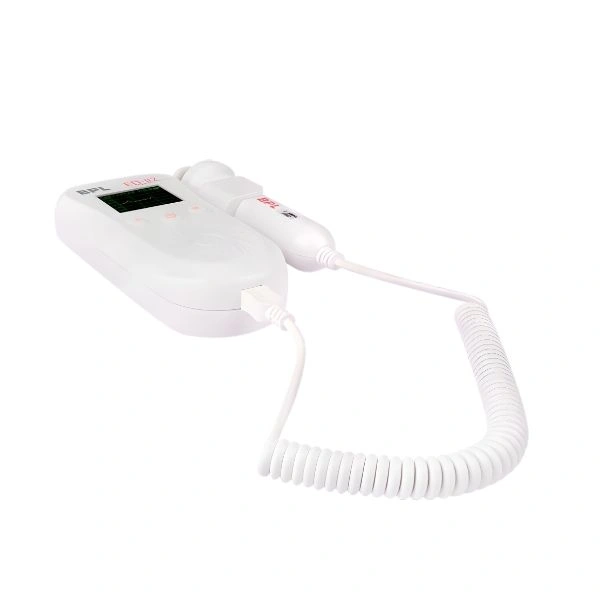

BPL FD‑02 Ultrasound Foetal Doppler

New

₹3,300₹4,99934% off

Specifications

Model Name : FD-02
Display : 1.77″ TFT with backlight
Ultrasound Probe Frequency : 2.5 MHz
Sensitivity (Gestation) : From approx. 12 weeks
FHR Measurement Range : ~50 – 240 BPM
Resolution : 1 BPM
Accuracy : ±2 BPM
Working Mode : Continuous
Ultrasonic Output Power : <40 mW
Audio Output : 3.5 mm jack + built-in speaker
Battery : DC 3.7 V, 14500 mAh Lithium
Auto Shutdown : Yes (approx. 1 min)
Dimensions : 140 × 35 × 108 mm
Weight : ~250 g
Operating Temp. : 0 °C – 40 °C
Humidity Range : 30 % – 90 %
Atmospheric Pressure : 60 kPa – 90 kPa

highlights

Safe for both mother and fetus with no known side effects.
Supports early pregnancy heart rate detection (around 12+ weeks).
Portable design, suitable for travel and home monitoring.
Dual audio and display options for enhanced user experience.
Energy-efficient with automatic shutdown and low battery alerts.

in the box

Fetal Doppler Unit (FD-02)
High-sensitivity 2.5 MHz ultrasound probe (attached)
Rechargeable lithium battery installed
User manual / guide
(Optional depending on seller) Headphone or audio cable

Use Cases :

Prenatal Heartbeat Monitoring: Listen to and monitor the fetal heartbeat during pre-natal care.
Routine Pregnancy Check-ups: Quick heartbeat checks between routine clinical ultrasounds.
Reassurance for Expectant Parents: Provides audible heart sounds for emotional reassurance.
Clinical or Home Use: Suitable for use by healthcare providers or trained users at home (following safety guidance).

Key Features :

Accurate FHR Detection: Detects fetal heart rate safely without side effects for mother or baby.
Digital + Waveform Display: Shows heart rate along with waveform for clear visualization.
Portable & Lightweight: Easy to carry and use both at home and in clinical settings.
Sensitive Probe: 2.5 MHz high-sensitivity ultrasound probe for early pregnancy detection.
Audio Output: Built-in speaker and 3.5 mm headphone jack for high quality sound.
Smart Alerts: Visual alerts in case of irregularities or low signal.
Battery Saver: Low-battery indicator and auto-shutdown to preserve power.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The BPL FD-02 Fetal Doppler is a handheld ultrasound doppler designed for detecting and listening to the fetal heart rate (FHR) during pregnancy. It uses reflected ultrasound waves (the Doppler effect) to pick up the baby’s heartbeat and display the rate visually on a screen and audibly through a bu...
