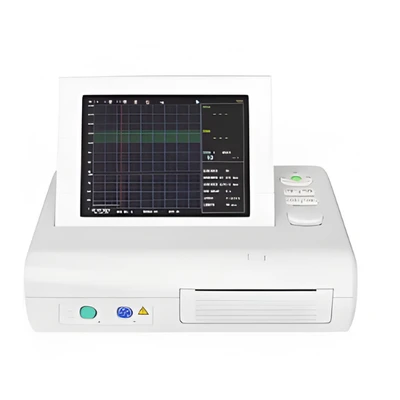

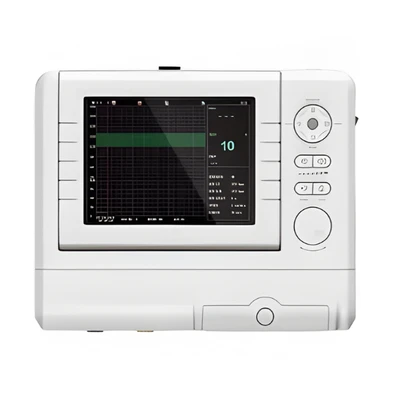

Contec CMS800G Fetal Monitor

New

₹45,000₹55,00018% off

Specifications

Model: CMS 800G
FHR Rate: 50-240 BPM
Frequency: 50Hz/60Hz P<60 VA
Voltage: AC 100-240 V
Display: 8" Color LCD
Dimension: 320 mm (L) x 260 mm (W) x 80 mm(H)
Weight: about 3 Kg
Print Record paper : Z-fold paper
Print width: 112 mm
Paper speed: 1 cm/min, 2 cm/min, 3 cm/min(optional)
FHR Range: 50 BPM~240 BPM
FHR Resolution: 1 BPM
FHR Accuracy: ± 2 BPM
TOCO Range: 0~100%
TOCO Resolution: 1%
TOCO Nonlinear error: ≤ ± 10%

highlights

Clear Visualization: Features a bright 8" color LCD display for clear monitoring curves and data.
Versatile Frequency Support: Operates with both 50Hz and 60Hz frequencies.
Dual Monitoring Capability: Supports twin FHR monitoring, providing comprehensive data for clinical use.
Compact and Adaptable Design: Lightweight and dexterous, suitable for horizontal placement or wall mounting.
Historical Data Review: Waveform data can be reviewed for up to twelve hours.

in the box

◆A three-in-one Transducers(Ultrasound Transducer I, TOCO Transducer, Remote Marker)
◆A User Manual
◆Two abdomen belts
◆An earth line
◆A power cord
◆Two Fuses

Use Cases :

Routine antenatal monitoring
Labor and delivery monitoring
High-risk pregnancy assessments
Monitoring of twin pregnancies
Clinical data acquisition for pregnancies over 28 weeks

Key Features :

Display monitoring curve and data clearly.
Real-time monitoring for a continuous 24 hours..
Optional interface languages: Chinese and English.
Optional twins monitoring.
9-crystal and broad beam transducer.
Extra long-life and high-resolution built-in thermal printer.
Communicate with te central monitoring system by the built-in RJ45.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Contec CMS800G Fetal Monitor is designed to provide clear, reliable fetal monitoring for clinical applications. With its prominent 8" color LCD display, it presents fetal heart rate (FHR) and maternal uterine contraction data with exceptional clarity. This monitor is capable of acquiring essenti...
