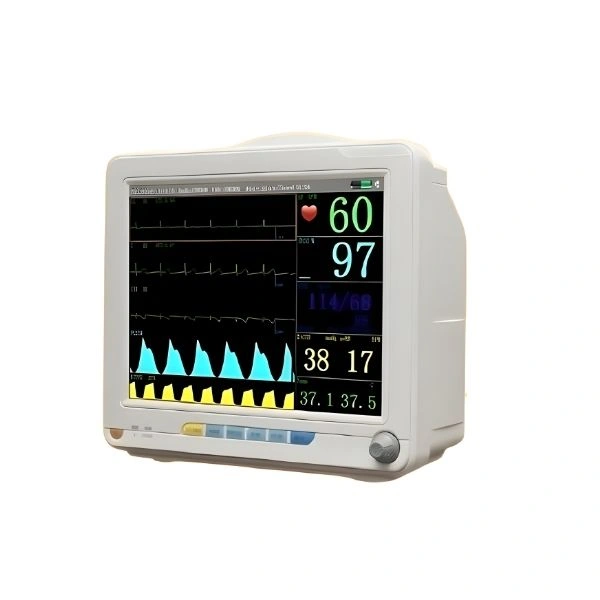

Niscomed Aqua 12 Multi-Parameter Patient Monitor

New

3.5|45 Ratings

₹17,499₹40,00056% off

Quantity :

Specifications

Display : 12.1″ Color TFT LCD, high-resolution (approx. 1024×768)
ECG : 5-lead ECG with waveform and HR/arrhythmia/ST-segment analysis
SpO₂ Range : 0–100% (accurate in clinical range)
Pulse Rate : Typical 30–250 bpm
NIBP Method : Oscillometric (manual/auto modes)
Respiration : Impedance-derived breathing rate
Temperature : Dual channel body temperature
Battery : Rechargeable internal battery (up to ~6–8 h typical)
Data Storage : NIBP lists (e.g., ~400 readings), ECG trend (~6000 s), alarm events (~60)
Networking : Wired/Wi-Fi/Ethernet (optional)
Dimensions : ~300 × 270 × 200 mm
Weight : ~5.5 kg
Power : AC adapter + internal rechargeable battery

highlights

✔ Holistic monitoring of key vitals in one unit.
✔ High-resolution waveforms and numeric data for clear clinical interpretation.
✔ Configurable alarms with trend recall for improved patient safety.
✔ Battery backup & portability – ideal for mobile use and emergency transport.
✔ Flexible scalability – add optional modules as clinical needs change.

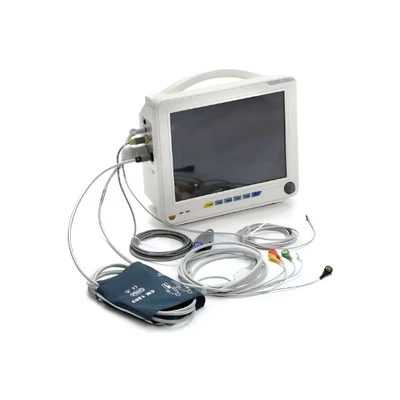

in the box

Niscomed Aqua 12 Multi-Parameter Patient Monitor unit
ECG cable
SpO₂ sensor/probe
NIBP cuff & tubing
Temperature probe
Power adapter & cord
User manual & documentation

Use Cases :

Intensive Care Units (ICU / CCU) — Continuous monitoring of critically ill patients.
Operating Theatres & Peri-Anesthesia — Vital sign tracking during surgical and post-operative care.
Emergency & Trauma Units — Quick assessment during acute interventions.
General Wards & Recovery Rooms — Routine patient surveillance.
Ambulance/Transport Monitoring — Portable design with battery support for uninterrupted patient assessment.
Neonatal, Pediatric & Adult Care — Selectable patient modes for different age groups.

Key Features :

Niscomed Aqua 12 Patient Monitor for continuous multi-parameter monitoring
Monitors ECG, RESP, NIBP, SpO₂, Pulse Rate (PR/HR), and Dual Temperature
Large 12.1-inch high-resolution TFT colour LCD display
Real-time waveform and numerical data display
Advanced ST-segment analysis for cardiac monitoring
Pacemaker detection function
Three-level audible and visual alarm system
Resistant to interference from defibrillators and HF surgical units
Built-in rechargeable lithium battery for uninterrupted monitoring
Stores up to 400 NIBP records
ECG waveform recall up to 6000 seconds
Stores up to 60 alarm event records
Seven-day trend graph storage
Optional EtCO₂, Dual IBP, Nellcor SpO₂, thermal printer, and touch screen
Optional wired and wireless central monitoring system
Lightweight and portable design for bedside and emergency use

Clinical Benefits

Continuously monitors multiple vital signs on a single monitor
Niscomed Aqua 12 Patient Monitor provides accurate real-time patient monitoring
Helps doctors detect changes in patient condition at an early stage
ST-segment analysis supports better cardiac assessment
Pacemaker detection improves monitoring for cardiac patients
Large colour display makes waveforms and patient data easy to read
Audible and visual alarms notify caregivers immediately when values move outside preset limits
Built-in rechargeable battery supports uninterrupted monitoring during patient transport
Large memory makes reviewing previous ECG waveforms, NIBP records, alarms, and trends easy
Optional EtCO₂ and IBP modules expand monitoring capabilities for critical care
Helps improve workflow in hospitals, ICUs, emergency departments, and operation theatres

Standard Parameters :

ECG – Electrocardiogram waveform and heart/pulse rate (5-lead commonly).
SpO₂ – Oxygen saturation and plethysmogram.
Pulse Rate / Heart Rate (PR/HR) – Derived from ECG/SpO₂.
NIBP – Non-invasive blood pressure with systolic, diastolic, and mean values.
RESP – Respiration rate and waveform.
2× Temperature (TEMP) – Dual-channel body temperature.
Optional parameters (based on configuration): EtCO₂, dual IBP (invasive blood pressure), enhanced SpO₂ like Nellcor, thermal printer output, and touchscreen control.

Warranty

Seller

AA Medie QuipLearn More

Product Description

The Niscomed Aqua 12 Patient Monitor is an advanced bedside multi-parameter monitor designed to provide continuous, accurate, and real-time monitoring of a patient's vital signs. It helps doctors and nurses monitor important parameters such as ECG, RESP, NIBP, SpO₂, Pulse Rate (PR/HR), and Dual Temp...
