Shipping time and rates
Shipping about 5-7 days

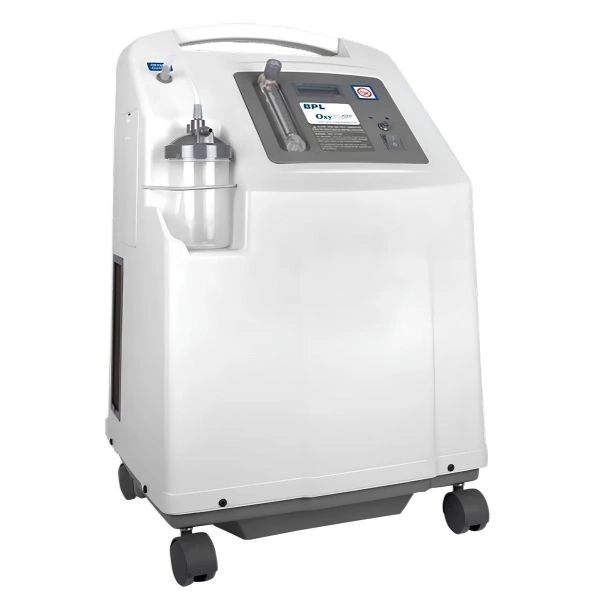

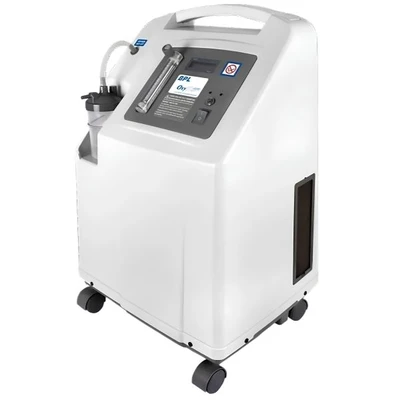

BPL Oxy 10 Neo Oxygen Concentrator
New0.0|0 Ratings
Quantity :
1
Specifications
- Product Type : Stationary Oxygen Concentrator
- Technology : Pressure Swing Adsorption (PSA)
- Oxygen Flow Rate : 1–10 L/min
- Maximum Output Flow : 10 L/min
- Oxygen Concentration : 93% ±3% (87%–95.5%)
- Outlet Channels : Two (Dual Model)
- Oxygen Outlet Pressure : 62 ± 4.5 kPa (8.99 ± 0.65 psi)
- Sound Level : ≤60 dB(A)
- Nebulization Rate : ≥0.2 mL/min
- Input Voltage : AC 220V ±10%
- Frequency : 50 Hz
- Power Consumption : ≤850 VA
- Electrical Classification : Class II, Type BF
- Dimensions : 44.5 × 37.2 × 68 cm
- Weight : 33 kg
- Operating Temperature : 10°C to 35°C
- Operating Humidity : 30%–75% (Non-condensing)
- Storage Temperature : -20°C to 60°C
- Storage Humidity : 10%–93% (Non-condensing)
- Safety Alarms : Low Oxygen, Compressor Failure, High/Low Pressure, Temperature, Power Failure
- Filter Type : Two-stage filtration
highlights
- High-capacity 10 LPM oxygen delivery
- Medical-grade oxygen purity
- Dual outlet configuration (Dual model)
- Intelligent alarm system for patient safety
- Easy-to-read LCD display
- Reliable heavy-duty compressor
- Low maintenance dual-stage filtration
- Optional nebulization capability
- Designed for continuous operation
- Manufactured by BPL Medical Technologies with ISO 13485 certified quality systems.
in the box
- BPL Oxy 10 Neo Oxygen Concentrator
- Nasal Oxygen Cannula (2 Sets)
- Humidifier Bottles (2 Nos.)
- Nebulizer Kit (1 No.)
- Filter Set
- Power Cable
- User Manual
Use Cases :
- Long-term oxygen therapy (LTOT)
- Hospital wards
- Intensive Care Units (ICUs)
- Emergency departments
- Nursing homes
- Home healthcare for patients requiring high-flow oxygen
- Respiratory care for COPD and other chronic lung diseases (as prescribed by a physician)
Key Features :
- Continuous oxygen flow: 1–10 L/min
- PSA (Pressure Swing Adsorption) oxygen generation technology
- Oxygen purity indicator
- Oxygen concentration: 93% ±3%
- Heavy-duty compressor with thermal protection
- LCD display showing usage hours and error codes
- LED indicators for oxygen purity and system status
- Power failure alarm
- Low oxygen concentration alarm
- Compressor failure alarm
- High/Low pressure alarm
- Temperature alarm
- Pressure relief valve for enhanced safety
- Flame-retardant cabinet
- Convenient top handle for easy movement
- Optional in-built nebulizer function
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The BPL Oxy 10 Neo Oxygen Concentrator is a high-capacity stationary oxygen concentrator designed to deliver continuous oxygen flow from 1 to 10 L/min. It uses Pressure Swing Adsorption (PSA) technology to produce medical-grade oxygen from ambient air. The device features an oxygen purity indicator,...
