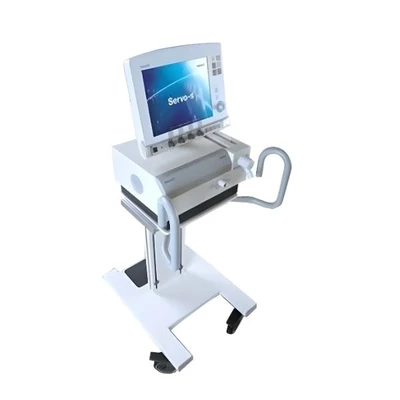

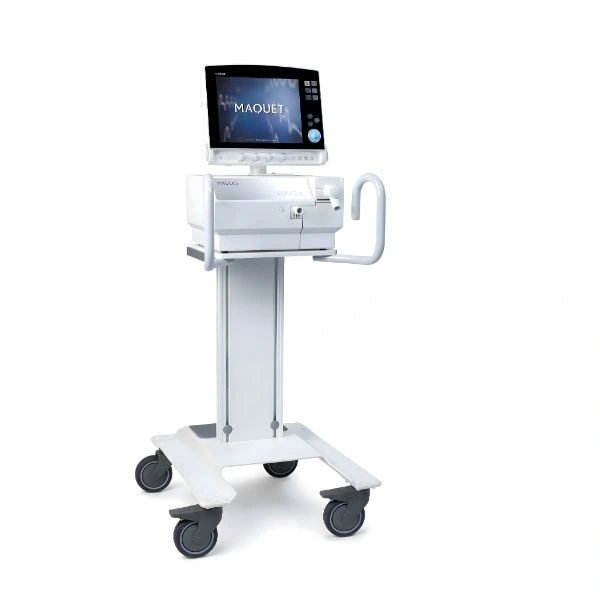

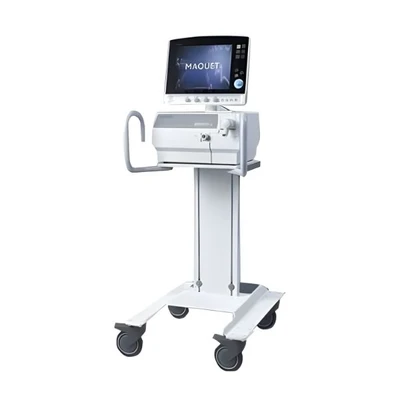

Maquet Servo-S ICU Ventilator

New

Specifications

Brand / Model : Maquet Servo-S Ventilator
Patient Groups : Pediatric, Adult
Ventilation Modes : PC, VC, PRVC, PS/CPAP, VS, SIMV (VC/PC/PRVC) + PS, Bi-Vent/APRV, NIV PC, NIV PS
Tidal Volume : 100 – 2000 mL
Respiratory Rate : 1 – 160 breaths/min
Inspiratory Time (TInsp) : 0.1 – 5 s
I:E Ratio : 1:10 to 4:1
Display : 12.1″ TFT-LCD colour display
Battery Backup : ≥ 1 hour (with 2 charged batteries)
Power Supply : AC 100–120 V or 220–240 V ±10%, 50–60 Hz
Operating Temp. : +10°C to +40°C
Dimensions : ~52 × 38 × 30 cm
Weight : ~18–20 kg

highlights

Proven SERVO Technology: Trusted ventilator platform known for precision and reliability.
Highly Configurable Ventilation Strategies: Tailor ventilation to patient needs across different clinical conditions.
Ease of Use: Ergonomic interface and controls reduce clinician workload and training time.
Flexible Gas Supply: Optional compressor enables use independent of central gas infrastructure.
Transport-Ready Design: Mountable on carts or shelves for seamless care transitions.

in the box

Servo-S Ventilator Unit (main device)
Battery Modules (rechargeable)
User Manual / Quick Start Guide
Alarm System Components (visual/audible)
Consumables & Accessories (tubing, connectors – if bundled)

Use Cases :

ICU Mechanical Ventilation: Support for critically ill patients requiring long-term respiratory assistance.
Invasive Ventilation: Controlled and assisted ventilation for patients unable to breathe independently.
Non-Invasive Ventilation: Support with leakage compensation for patients who can maintain airway patency.
Intra-Hospital Transport: Continuous respiratory support during patient movement within facilities.
Emergency Care: Immediate respiratory intervention in urgent care or resuscitation settings.

Key Features :

Wide Range of Ventilation Modes: Supports pressure control (PC), volume control (VC), pressure regulated volume control (PRVC), SIMV (in various combinations), Bi-Vent/APRV, and NIV modes with leakage compensation.
Intuitive User Interface: Large 12.1-inch TFT-LCD colour display with touchscreen plus rotary dial and direct access knobs for flexible operation.
Excellent Patient Interaction: Sensitive flow trigger and precise inspiratory flow control reduce the patient’s work of breathing.
Transport & Shelf-Mount Design: Can be mounted on a mobile cart or shelf for intrahospital transport support.
Independent Gas Option: With an optional Compressor Mini, the unit can operate without central hospital gas supply.
Visual & Audible Alarms: Robust safety alarm system for pressure, volume, and respiratory events.
Rapid Pre-Use Check: Automated system check streamlines setup preparation.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Maquet Servo-S Ventilator is a high-performance ICU ventilator developed by Getinge / Maquet, designed to deliver advanced respiratory support for both adult and pediatric patients in critical care environments. Built on proven SERVO technology, it provides a wide array of invasive and non-invas...
