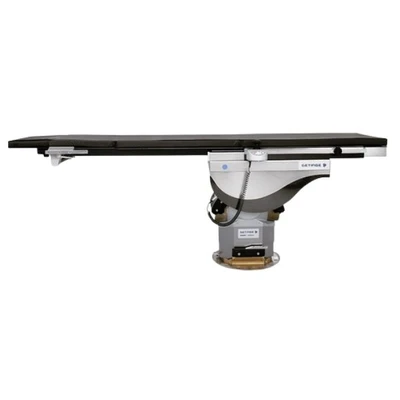

Maquet Magnus OR Table System
New0.0|0 Ratings
Quantity :
1
Specifications
- Table Length : 1,945–2,055 mm
- Table Width : 540 mm
- Width Across Side Rails : 580 mm
- Radiolucent Window : 410 mm
- Height Adjustment (Stationary Column) : 535–1,240 mm
- Height Adjustment (Mobile Column) : 565–1,270 mm
- Longitudinal Shift : 460 mm
- Trendelenburg / Reverse Trendelenburg : 80° / 80°
- Lateral Tilt : 45° left / right
- Back Plate Adjustment : +90° / -60°
- Leg Plate Adjustment : +80° / -90°
- Maximum Patient Weight : Up to 380 kg
- Tabletop Material : Radiolucent Carbon Fiber
- Control Type : Hand Control / Remote Control
highlights
- Supports patient load up to 380 kg
- Longitudinal slide for improved imaging access
- Carbon fiber tabletop for clear fluoroscopy imaging
- Up to 80° inclination
- Up to 45° lateral tilt

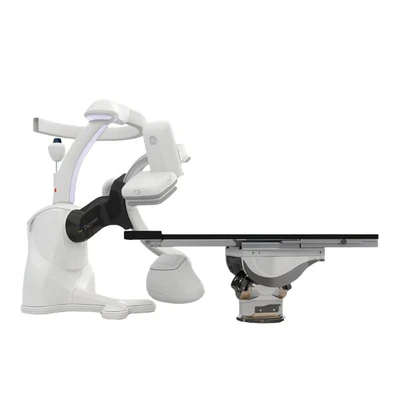

- Compatible with hybrid OR imaging systems
- Improves workflow with faster patient positioning
- Suitable for multidisciplinary OR environments
in the box
- OR Table Column (stationary/mobile depending on model)
- Modular Table Top
- Transporter / Patient Transfer Unit
- Hand Control Unit
- Control Interface
- Power / Charging Accessories
- User Documentation / IFU Manual
Use Cases :
- Neurosurgery
- Orthopedic Surgery
- Trauma Surgery
- Urology
- General Surgery
- Abdominal Surgery
- Thoracic Surgery
- Hybrid OR procedures
- Image-guided interventions
- Minimally invasive surgery
Key Features :
- Extreme Flexibility & Stability – Supports advanced patient positioning with excellent stability during surgery.

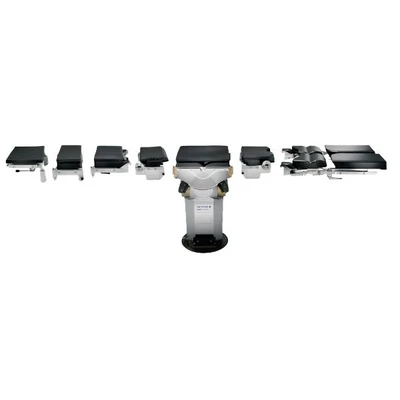

- Modular Tabletop Design – Configurable with multiple tabletop modules for various specialties.
- Excellent Radiolucency – 360° radiolucent tabletop enables superior X-ray and C-arm imaging.
- Ergonomic Height Adjustment – Wide lifting range supports comfortable surgeon posture.
- Slope Saddle Technology – Enables steep Trendelenburg / reverse Trendelenburg positioning.
- Innovative Transfer System – Patient can be positioned outside OR and transferred directly.
- User-Friendly Controls – Remote and hand controls with programmable position memory.
- High Weight Capacity – Supports bariatric and complex surgical cases.
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The Maquet Magnus OR Table System is an advanced modular surgical table designed for a wide range of surgical procedures, including conventional, minimally invasive, and hybrid operating room interventions. It offers exceptional flexibility, patient positioning capability, ergonomic working height, ...
