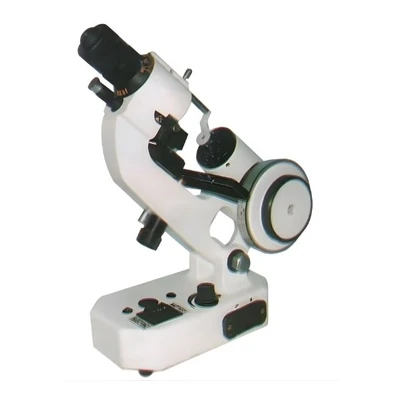

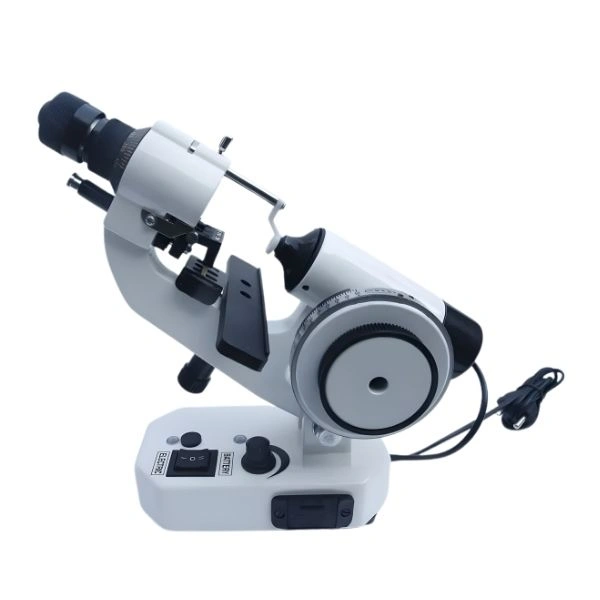

RKSI RL-130 Manual Lensmeter

New

₹13,000₹22,00041% off

Specifications

Model : RL130 Manual Lensmeter
Operation Mode : Manual lensometry
Target Type : Corona / Dot optical target
Lens Diameter : Supported ~30 mm – 80 mm
Sphere Power Range : ±20 D (approx.)
Graduations : 0.25 D steps
Prism Scale : 0 – 5 ∆ (1 grad)
Axis Range : 0° – 180° (manual)
Tilt Angle : 0° – 90° adjustable
Illumination : ~2.3 V light
Power Source : 2×1.5 V AA dry cells or 220 V AC
Material : Aluminium/Plastic/Metal variants
Dimensions : ~300 × 150 × 200 mm
Weight : ~2.5 kg

highlights

Reliable manual operation: No digital components means straightforward maintenance and longer life.
Clear optical target system: Dot/corona target simplifies alignment and improves reading clarity.
Ergonomic tilt & portability: Adjustable tilt and lightweight design enhance usability.
Versatile power options: Usable with batteries or AC power based on your setup.
Cost-effective: Lower cost choice compared to automatic lensometers for basic prescriptions.

in the box

✔ RL130 Manual Lens Meter unit
✔ Lens holder/clamp assembly
✔ Eyepiece and scale assembly
✔ Power accessories (AC adapter and/or batteries)
✔ Instruction manual / user guide
✔ Basic accessories (cleaning cloth, setup tools)

Use Cases :

✔ Verify spectacle prescriptions prior to dispensing.
✔ Measure refractive lens power for spherical and cylindrical lenses.
✔ Determine astigmatic axis orientation manually.
✔ Check prism power and base direction where applicable.
✔ Quality control in optical labs and eyewear retailers.
✔ Teach basic lensometry in optometry and optical training programs.

Key Features :

Manual direct scale measurement of lens power (sphere, cylinder & axis).
Corona/dot target system for optical alignment and reading.
Wide lens support — measures lenses typically 30 mm to 80 mm in diameter.
Adjustable tilt angle (0°–90°) for ergonomic use.
Prism diopter scale (0 – 5 ∆) for approximate prism reading.
Dual power options: Can run on AA dry cell batteries or AC mains.
Compact, portable design suitable for clinics, labs and shops.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The RKSI RL130 Manual Lens Meter is a manual optometry instrument designed to measure and verify the optical powers of ophthalmic lenses, including sphere, cylinder, axis and prism values. It uses a direct manual scale reading system with a clear target (often “dot” or corona target) and is ideal fo...
