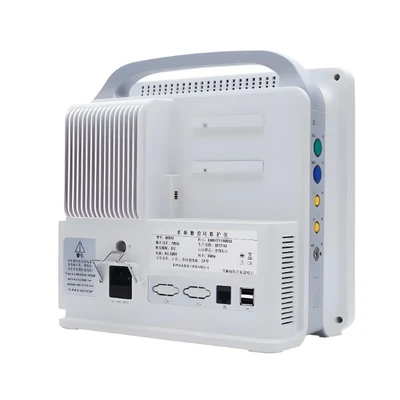

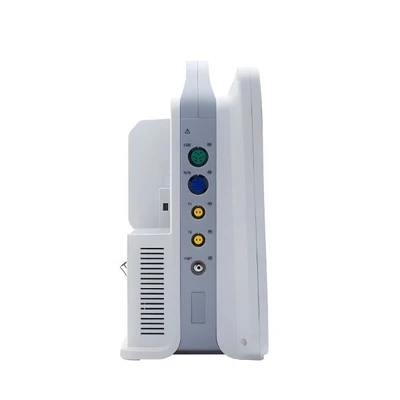

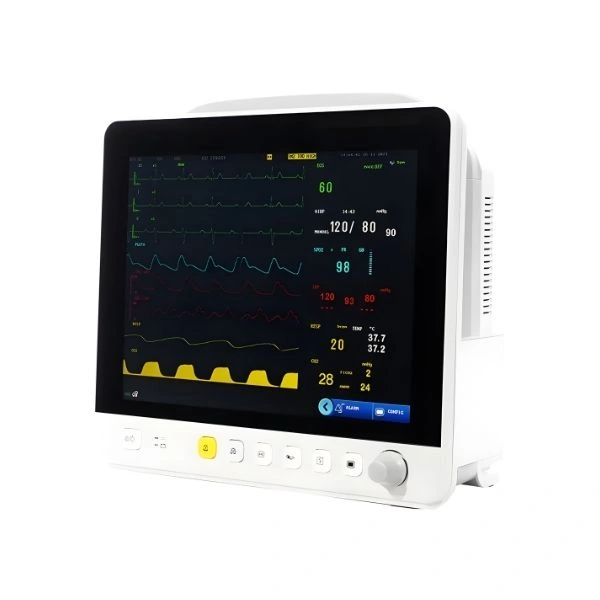

Yonker IE12 Multi-Para Patient Monitor

New

Specifications

Display : 12.1″ Color TFT LCD
Parameters (Standard) : ECG, SpO₂, NIBP, RESP, TEMP, PR
Optional Parameters : EtCO₂, Dual IBP, Nellcor SpO₂
Recording/Printer : Optional thermal recorder
Trend/Storage : 7-day trend; 400 NIBP records; 600+ sec ECG recall; 60 alarms
Battery : Built-in Li-ion (~4 hours backup)
Power Supply : AC 100-240V, 50/60Hz
Dimensions : ~305 × 162 × 290 mm
Weight : ~3.8–4.5 kg (varies with config)
Certifications : CE, ISO13485, ISO9001 (varies by seller)

highlights

Versatile Monitoring: captures essential and advanced vital signs in one unit.
Modular Design: expand functionality as clinical demands grow.
Robust Data Management: extensive recall of trends and alarms aids clinical decisions.
Clinically Flexible: works reliably across patient types and environments.

in the box

Patient monitor main unit
Built-in rechargeable Li-ion battery
ECG lead cable (3/5-lead)
SpO₂ sensor + extension cable
NIBP cuff + air hose
Temperature probe
Power cord (AC) + ground wire
User manual / quick start guide
Warranty card

Use Cases :

Hospital Wards & ICU – continuous monitoring of critically ill patients.
Operating Theatres & Recovery Rooms – intra-operative and post-operative observation.
Emergency Departments – rapid assessment and stabilization monitoring.
Patient Transport – battery-powered monitoring during patient transfers.
Pediatric & Neonatal Care – adjustable settings for smaller patients.
Central Monitoring Systems – integrates with wired or wireless network for multi-bed surveillance.

Key Features :

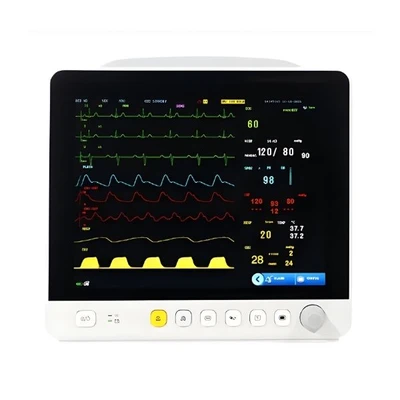

Large 12.1″ Colour TFT Display – high-resolution display for multi-lead waveforms and numerical trends.
Multi-Parameter Monitoring – standard ECG, SpO₂, NIBP, Respiration, Temperature, Pulse Rate.
Modular & Expandable – optional EtCO₂, dual IBP, Nellcor SpO₂, thermal recorder/printer, touchscreen, central monitoring, and trolley/wall mounts.
Trend & Memory Storage – stores up to 7-day trends, 400 NIBP records, 600+ seconds ECG recall, and 60 alarm events.
Multiple Monitoring Modes – diagnostic, monitoring, and surgical modes supported.
Battery Backup – built-in Li-ion battery allows portable monitoring during transport or power disruptions.
Multi-Language Support – interface available in multiple languages for global clinical use.

Standard Parameters :

ECG (Electrocardiography) – 3/5-lead, multiple lead display with heart-rate calculation.
SpO₂ (Oxygen Saturation) – real-time saturation and pulse rate measurement.
NIBP (Non-Invasive Blood Pressure) – oscillometric measurement with manual, auto, STAT modes.
Respiration Rate (RESP) – measured by impedance or via nasal cannula.
Temperature (TEMP) – dual-channel probes for surface/internal measurements.
Pulse Rate (PR) – derived from ECG and SpO₂ signals.
Optional parameters available (with extra modules): EtCO₂ (end-tidal CO₂), dual IBP (invasive blood pressure).

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Yonker IE12 Patient Monitor is a multi-parameter vital signs monitor designed to continuously observe and record key physiological parameters in patients across adult, pediatric, and neonatal care. It features a 12.1″ color TFT display with clear waveforms and numeric data, supports central netw...
