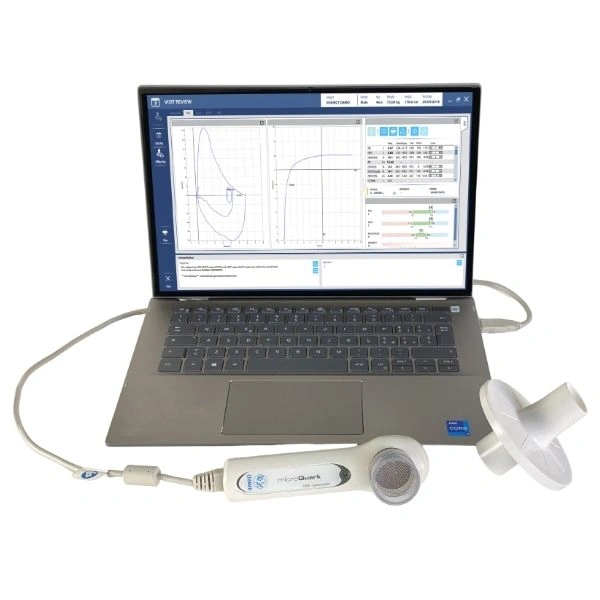

Cosmed Microquark PC Based Spirometer
New0.0|0 Ratings
Quantity :
1
Specifications
- Product Type : PC-Based USB Spirometer
- Measurements : FVC (Pre/Post/Challenge), SVC (Pre/Post), MVV
- Flowmeter : T2 Bidirectional Digital Turbine
- Flow Range : 0–16 L/s
- Ventilation Range : 0–300 L/min
- Volume Range : 0–12 L
- Resolution : 12 mL
- Accuracy : ±2% or 20 mL/s
- Resistance : <0.6 cmH₂O/L/s @ 14 L/s
- Dimensions : 150 × 45 × 53 mm
- Weight : 77 g
- Connectivity : USB
- Power Supply : Via USB
- Software : OMNIA
- PC Requirements : Windows 7 SP1, Windows 8.x, Windows 10 (32/64-bit); CPU ≥2 GHz; RAM ≥4 GB; HDD ≥10 GB; Resolution ≥1366×768; ≥2 USB ports
- Calibration Accessory : Certified 3 L Calibration Syringe (Optional)
- Consumables : Antibacterial/Antiviral Filters, Disposable Nose Clips
- Standards & Certifications : MDD 93/42/EEC, FDA 510(k), EN 60601-1, EN 60601-1-2, ATS/ERS Spirometry Standards
highlights
- Converts any PC into a complete spirometry workstation via USB.
- Uses COSMED's proven bidirectional digital turbine technology.
- Includes OMNIA software for patient management, analysis, and reporting.
- Interactive pediatric motivation graphics enhance testing in children.
- Automatic quality control feedback and test interpretation.
- Supports stand-alone or network installations.
- Generates customizable reports with numerical and graphical results.
- Compact size makes it ideal for portable use.
- Meets current international ATS/ERS spirometry standards
in the box
- microQuark Spirometer Unit
- T2 Flowmeter
- Adapters
- Carrying Case
- OMNIA® Software
- User Manual
Use Cases :
- Pulmonary function screening.
- Respiratory disease diagnosis and monitoring.
- Primary care clinics.
- Pulmonology departments.
- Occupational health examinations.
- Pre-operative respiratory assessment.
- Clinical research studies.
- Hospital outpatient departments.
- Pediatric spirometry testing.
- Health screening camps and mobile respiratory testing.
Key Features :
- Plug-and-play USB connectivity for Windows PC or laptop.
- Lightweight and compact design for portable spirometry screening.
- Validated bidirectional digital turbine flowmeter for high measurement accuracy.
- Full spirometry testing including FVC, SVC, MVV, and Bronchodilator/Bronchial Challenge tests.
- Automatic interpretation based on the latest scientific guidelines.
- OMNIA software with intuitive workflow and comprehensive reporting.
- Pediatric incentive animations to improve patient cooperation.
- Network-ready architecture with HIS integration capability.
- Multi-language software support.
- Compliant with ATS/ERS 2019 Spirometry Standards.
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The COSMED microQuark is a compact, PC-based USB spirometer designed for pulmonary function screening and routine spirometry testing. Its lightweight construction and plug-and-play USB connectivity allow it to transform any compatible desktop or laptop into a spirometry workstation. The device incor...
