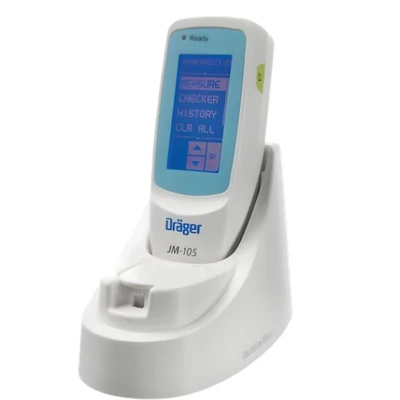

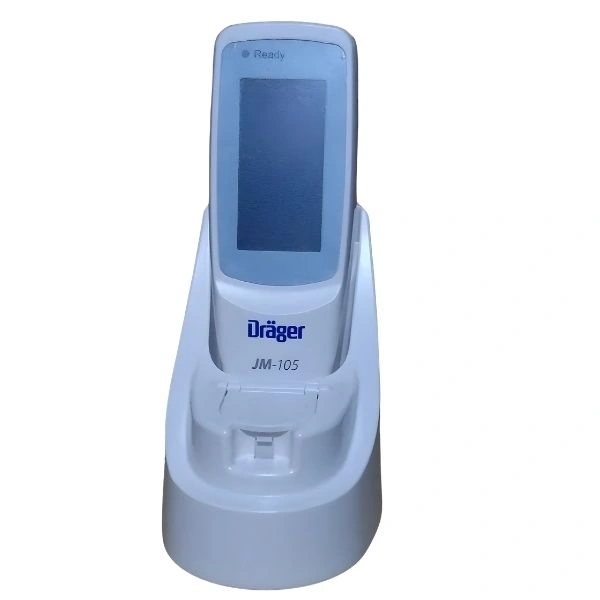

Drager JM-105 Jaundice Meter
NewQuantity :
12345678
- sdfghjkjhgfdfgh
- asdasd
Specifications
- Measurement Range : 0.0 – 20.0 mg/dL (0 – 340 µmol/L)
- Accuracy (SEE) : ±1.5 mg/dL (>35 weeks) / ±1.6 mg/dL (24–34 weeks)
- Light Source : Pulse xenon arc lamp
- Sensors : Silicon photodiodes
- Light Source Life : ~150,000 measurements
- Battery : Internal NiMH
- Measurements Per Charge : ~250
- AC Adapter : Input : 100–240 V, 50/60 Hz / Output : 9 V DC, 500 mA
- Dimensions : Width - 56 mm / Height - 168 mm / Depth - 45 mm
- Weight : ~203 g
- Data transfer : USB / HL7 / CSV
- Operating Temperature : 10°C to 40°C
- Humidity : 30% – 95% (non-condensing)
highlights
- Accurate early detection of jaundice risk in newborns
- Improves patient safety with rapid results
- Enhances workflow by reducing time-consuming lab processes
- Minimizes discomfort for infants and stress for parents
- Provides cost-effective screening over device lifetime
- Supports efficient jaundice management programs
in the box
- JM-105 device unit
- Charging / docking station
- AC adapter
- Reusable probe tip
- User manual / Instructions for Use
Clinical Benefits of Drager JM 105
- Faster Clinical Decision-Making: Results in seconds, compared with the longer processing time for a lab-based TSB sample, allow clinicians to assess jaundice risk without unnecessary delay.
- Reduced Newborn Distress: Non-invasive transcutaneous measurement avoids the pain and stress associated with blood draws.
- Broader At-Risk Detection: Accuracy from 24 weeks gestational age supports screening across a wide range of newborns, including premature infants.
- Improved Protocol Compliance: The integrated flagging feature helps track infants who require follow-up.
- vcvxcvcxv
Key-Features of Drager JM 105 Jaundice Meter
- Non-Invasive TcB Screening: Measures transcutaneous bilirubin without a blood draw, helping reduce stress for fragile newborns and their parents.
- Accurate from 24 Weeks Gestational Age: Supports screening across a wide gestational age range, including premature infants.
- Results in Seconds: Provides readings almost instantly compared with the longer processing time required for lab-based TSB testing.
- Integrated Flagging Feature: Helps identify and track patients who need special attention and supports jaundice management protocols.
- Reusable Probe Tip: The probe tip can be cleaned with an alcohol wipe between uses, eliminating the need for disposable tips.
- Hospital System Connectivity: USB data transfer through HL-7 or CSV makes it easier to transfer screening data into the infant's electronic medical record.
- Built-In Barcode Scanner: Supports Code 39, EAN/JAN, Code 128, and ANSI/HIBC formats, helping reduce manual data-entry errors.
- Compact, Lightweight Design: Weighing 203 g with pocket-sized dimensions, the device is easy to carry and use at the bedside.
Why Choose the Dräger Jaundice Meter JM-105?
- Supports earlier detection: Screening accuracy from 24 weeks gestation supports earlier identification of at-risk infants and may help reduce readmission rates and length of stay.
- Gentler for newborns and easier for staff: Non-invasive TcB measurement avoids repeated heel-stick blood draws during routine screening.
- Lower ongoing screening costs: The reusable probe tip means there is no need for disposable tips with every measurement.
- Fewer manual data-entry errors: Barcode scanning and direct EMR data transfer help reduce transcription mistakes.
- Fits into a complete jaundice management pathway: Can be used alongside Dräger's BiliLux LED phototherapy system when infants require treatment.
- Backed by Dräger's neonatal care expertise: Part of a manufacturer with established experience in NICU and nursery technology.
Warranty
1 Year
Seller
AA Medie QuipLearn More
Product Description
The Dräger Jaundice Meter JM-105 is a transcutaneous bilirubinometer designed to make newborn jaundice screening faster, gentler, and more consistent without adding unnecessary complexity to the nursery workflow. As a Drager bilirubinometer, the JM-105 measures transcutaneous bilirubin (TcB) within ...
Other Details
The Dräger Jaundice Meter JM-105 is a transcutaneous bilirubinometer designed to make newborn jaundice screening faster, gentler, and more consistent without adding unnecessary complexity to the nursery workflow. As a Drager bilirubinometer, the JM-105 measures transcutaneous bilirubin (TcB) within seconds, giving clinicians quick results without the wait and discomfort associated with an invasive total serum bilirubin (TSB) blood draw. One of the practical advantages of the Draeger jaundice meter is its reusable probe tip. Since there is no disposable tip required for each measurement, ongoing screening costs can be kept lower, which can be useful for busy nurseries handling a high number of screenings each day. With HL-7/CSV data transfer and built-in barcode scanning, the Drager JM 105 can also be integrated into the hospital's jaundice management workflow rather than being used only as a standalone device.
