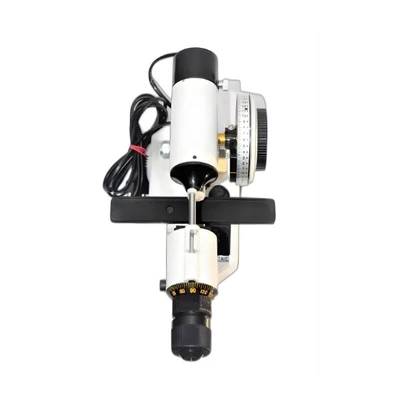

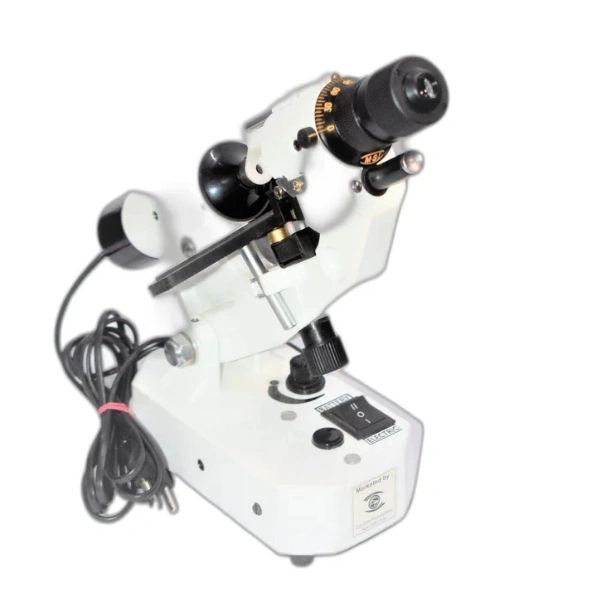

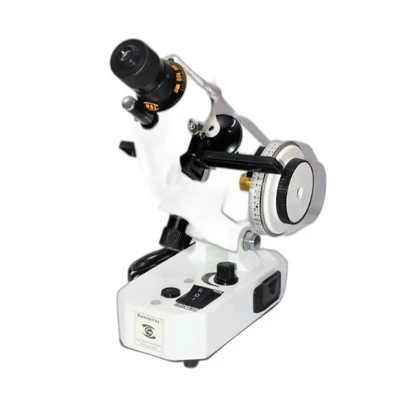

ECP Cross Target Manual Lensometer

New

₹10,900₹15,00027% off

Specifications

Type : Manual lensmeter with cross-line (crosshair) target
Measurement Range : – Sphere Approx. 0 to ±25 diopters (model-dependent)
Graduation : ∼0.125 D (up to ±3 D) / 0.25 D beyond
Cylinder Axis Range : 0° – 180°
Prism Diopter Scale : 0 – 5 ∆ (approximate)
Lens Diameter Support : ~24 mm – 90 mm
Tilt Angle : 0° – 90° (adjustable)
Illumination : LED or halogen light source (varies)
Eyepiece Adjustment : +3 to −5 D (approx.)
Power Source : AC mains / battery options
Dimensions & Weight : Model-dependent (usually ~300 × 150 × 200 mm and ~2.5–4 kg)

highlights

Clear cross-line alignment: Crosshair target enhances precision when centering lenses.
No digital dependency: Fully manual operation reduces complexity, power needs and maintenance.
Adjustable and versatile: Tilt-adjustable platform makes it comfortable to use for lenses of various shapes and sizes.
Cost-effective: Lower price point than automated or digital lensmeters — ideal for basic clinics, labs or optical shops.
Durable construction: Mechanical design suitable for daily clinical use with minimal service requirements.

in the box

✓ Manual lensmeter unit (cross target design)
✓ Lens holder/clamp assembly
✓ Eyepiece and cross-line reticle optical assembly
✓ Power adapter and/or batteries (as applicable)
✓ Instruction manual / user guide
✓ Basic accessories such as dust cover, adjustment tools, cleaning cloth

Use Cases :

Verifying spectacle prescriptions before dispensing corrective eyewear.
Measuring spherical and cylindrical power of lenses brought in by patients.
Determining axis orientation for astigmatic lenses.
Checking prism power and base direction (on some models).
Training and education in optometry labs and optical technician courses.

Key Features :

Manual scale reading system: Easy-to-use graduated scales for sphere, cylinder and axis measurements.
Cross-line (crosshair) target: Provides clearer optical reference points for precise alignment.
Tilt-adjustable lens table: Allows measurement at different angles (often 0°–90°) for easy handling.
Wide lens support: Typically supports a range of lens diameters (~24–90 mm) depending on model.
Power source flexibility: Works with AC mains and/or batteries in many manual units.
Prism indication: Some models include a prism scale for approximate prism power measurement.
Simple, robust design: No digital electronics reduce maintenance and power needs.

Warranty

No Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

Manual Lensometer (Cross‑Line Reticle) (Cross Target Manual Lensmeter) is a manual optical diagnostic instrument used by opticians, optometrists and ophthalmic technicians to measure and verify the prescription of spectacle lenses. It uses an optical cross-line (crosshair) target together with manua...
