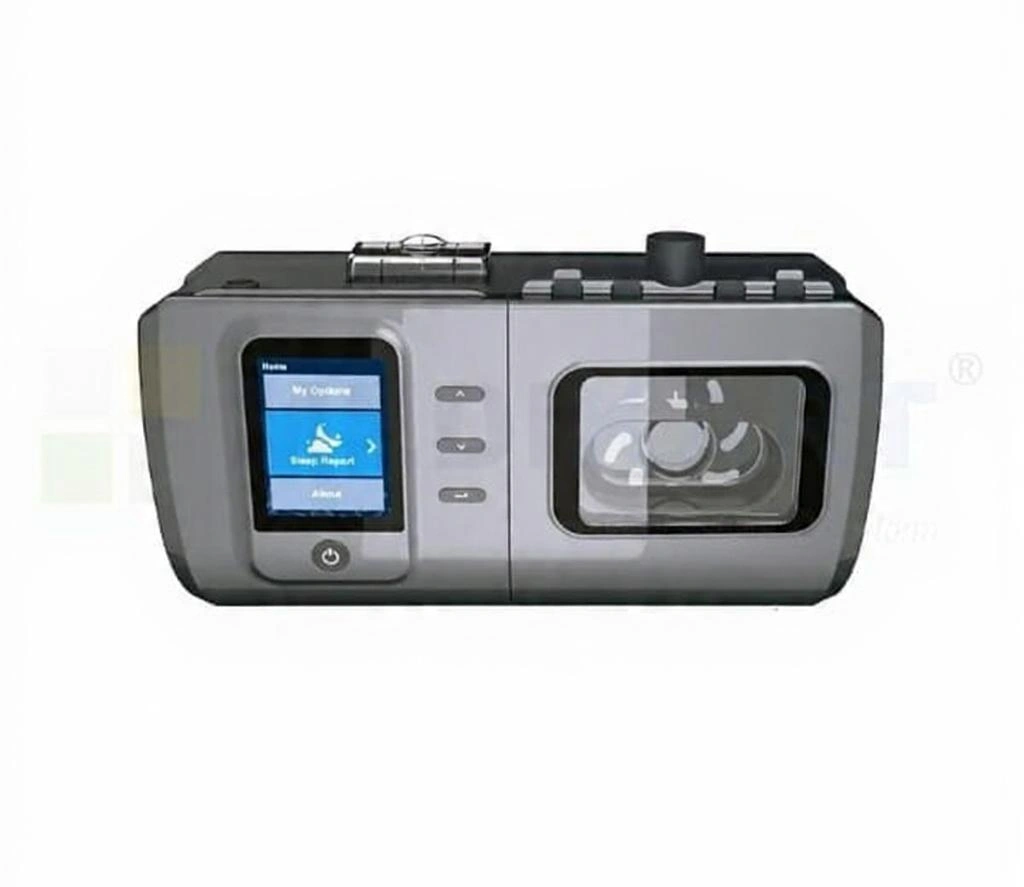

Elvionix ELV Respio Bipap

New

4.3|14 Ratings

₹24,000₹35,00031% off

Quantity :

Specifications

Model: ELV Respio BiPAP
Therapy Modes: CPAP, Auto, S, T, ST, APCV
Pressure Range: 4–30 cmH₂O
IPAP Range: 4–30 cmH₂O
EPAP Range: 4–20 cmH₂O
Display: 2.8" TFT Color Display (320 × 240)
Noise Level: <28 dB
Data Storage: SD Card
Backup Rate: 5–50 breaths/min (adjustable)
I Ratio: 10–80%
Ramp Time: 0–60 minutes (1-minute increments)
Inspiratory Trigger: 1–5 Levels
Expiratory Level: 1–5 Levels
Inspiratory Sensitivity: 1–5 Levels
EPR: 0–3 Levels
Humidifier: Integrated Heated Humidifier (0–5 Levels)
Water Chamber Capacity: 220 mL
Auto ON/OFF: Yes
Auto Altitude Adjustment: Yes
Leak Compensation: Yes
Awake Detection: Yes
Breath Event Detection: Yes
Power Supply: Input 100–240V AC, 50–60Hz, 1–2A
DC Output: 24V DC, 2.5A
Dimensions: 28 × 14 × 9.5 cm
Weight (with Humidifier): 1.6 kg

highlights

Intelligent AST (Automatic Synchronization Technology) for enhanced patient comfort
Multiple therapy modes including CPAP, Auto, S, T, ST, and APCV
Pressure support up to 30 cmH₂O
Ultra-quiet operation with noise level below 28 dB
Integrated heated humidifier with anti-dry protection
Real-time therapy data display
Automatic leak compensation and altitude adjustment
Adjustable backup rate for personalized therapy
SD card data storage for easy therapy tracking
Auto ON/OFF functionality for convenient use
Compact, lightweight design with user-friendly interface

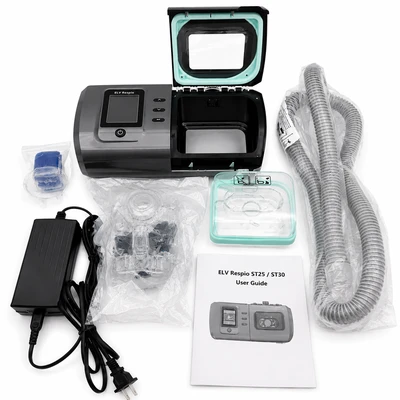

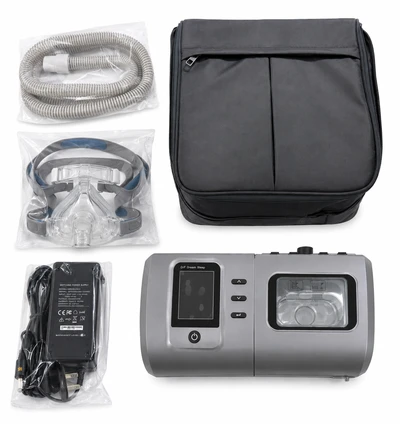

in the box

ELV Respio BiPAP Main Unit
Heated humidifier & water tank
Breathing Tube
Full Face Mask
Power Adapter and Power Cord
User Guide
Carrying Bag

Use Cases

Obstructive Sleep Apnea (OSA)
Central Sleep Apnea (CSA)
Chronic Obstructive Pulmonary Disease (COPD)
Obesity Hypoventilation Syndrome (OHS)
Chronic respiratory insufficiency
Home-based non-invasive ventilation (NIV)
Sleep clinics and respiratory care centers
Post-discharge respiratory support under medical supervision

Key Features

AST for intelligent pressure synchronization
Supports CPAP, Auto, S, T, ST, and APCV modes
Pressure support up to 30 cmH₂O
Integrated heated humidifier
Ultra-quiet operation (<28 dB)
Auto leak compensation
SD card data storage
Auto ON/OFF function
Compact and lightweight design

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The ELV Respio BiPAP ST25/ST30 is an advanced non-invasive ventilation device designed to deliver comfortable and effective respiratory support for patients with sleep apnea and other breathing disorders.

Featuring intelligent synchronization technology, multiple therapy modes, an integrated heat...
