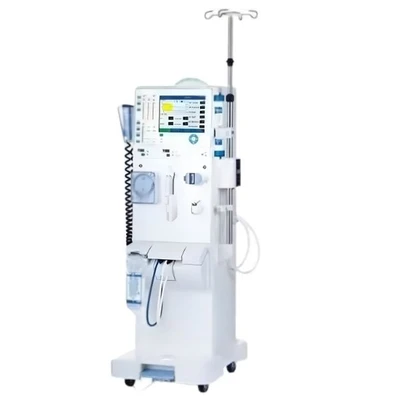

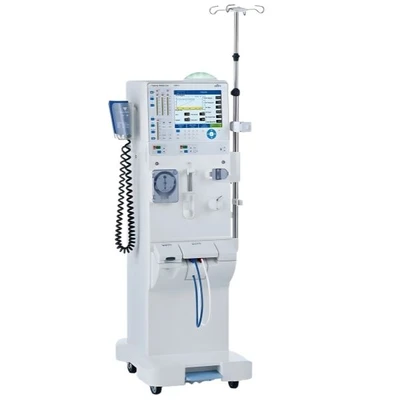

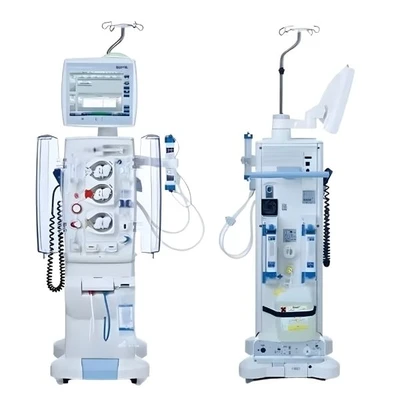

Fresenius 4008S NG Hemodialysis Machine

New

Specifications

Product Name : Fresenius 4008S NG Hemodialysis Machine

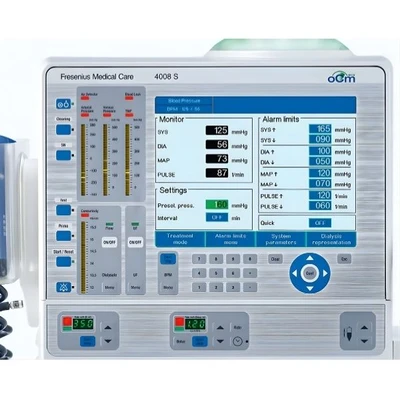

Display : 10.4-inch TFT-LCD display
Dimensions (H × W × D) : Approx. 1370 × 500 × 650 mm
Weight Approx. : 80 – 86 kg
Power Supply : 100 – 240 V AC
Frequency : 50 – 60 Hz
Current Consumption : Approx. 9 A at 230 V
Blood Flow Rate : 10 – 600 mL/min
Dialysate Flow Rate : 300 / 500 / 800 mL/min
Ultrafiltration Rate : 0 – 4 L/h
Water Inlet Pressure : 1.5 – 6.0 bar
Water Inlet Temperature : 5 – 30 °C
Hot Rinse Temperature : 85 – 95 °C
Maximum Drain Height : 1 m
Concentrate Supply Pressure : 0 – 100 mbar
Central Concentrate Supply : Optional (0 – 500 mbar)
Dialysis Modes : Hemodialysis, single-needle dialysis, ultrafiltration programs
Monitoring Systems : OCM dialysis dose monitoring, blood pressure monitoring
Fluid Purification : DIASAFEplus dialysis fluid filter
Connectivity : Network interface for Therapy Data Management System

highlights

Continuous dialysis dose monitoring using OCM technology
Ultrapure dialysis fluid generation with DIASAFEplus filtration
Dry bicarbonate system (Bibag) to reduce contamination risk
Efficient resource utilization with AdaptedFlow technology
Integrated patient monitoring including blood pressure measurement
Flexible dialysis modalities and customizable treatment profiles
Network connectivity for treatment data management and documentation
Ergonomic design and intuitive operation for dialysis staff

in the box

Fresenius 4008S NG Hemodialysis Machine (Main Unit)
Integrated blood pump system
Bicarbonate cartridge holder (Bibag interface)
Dialysate mixing and delivery system
Power cable and connection accessories
Operator / User manual
Installation and service documentation
Optional patient data management interface modules

Use Cases :

Hospital dialysis units
Standalone dialysis clinics
Nephrology departments
Maintenance hemodialysis for chronic kidney disease (CKD)
Acute kidney injury (AKI) dialysis treatment
Single-needle dialysis treatments
Ultrafiltration therapy

Key Features :

Online Clearance Monitor (OCM) for continuous dialysis dose and efficiency monitoring.
DIASAFEplus dialysate filtration system producing ultrapure dialysis fluid.
Bibag® dry bicarbonate concentrate system for hygienic dialysate preparation.
Single-needle dialysis capability (SN or Click-Clack method).
Integrated Blood Pressure Monitor (BPM) for patient vital monitoring.
AdaptedFlow technology automatically optimizes dialysate flow and reduces resource consumption.
Therapy Data Management System (TDMS) connectivity for treatment data recording and analysis.
Central Concentrate Delivery System (CDS) compatibility for dialysis centers.
Ergonomic and intuitive operating interface with simplified parameter programming.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Fresenius 4008S NG (Next Generation) Hemodialysis Machine is an advanced renal replacement therapy system designed to deliver safe, efficient, and reliable dialysis treatment for patients with kidney failure. The system combines proven dialysis technology with enhanced monitoring, treatment auto...
