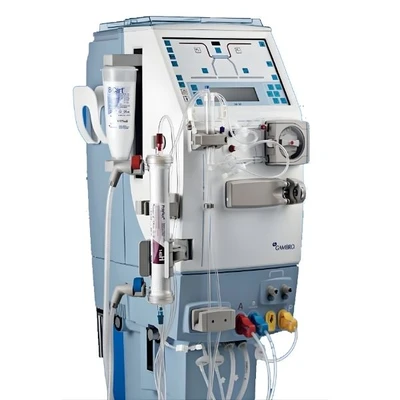

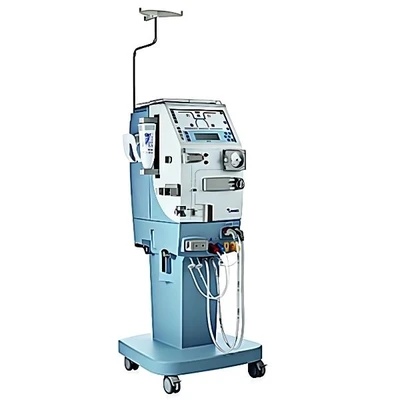

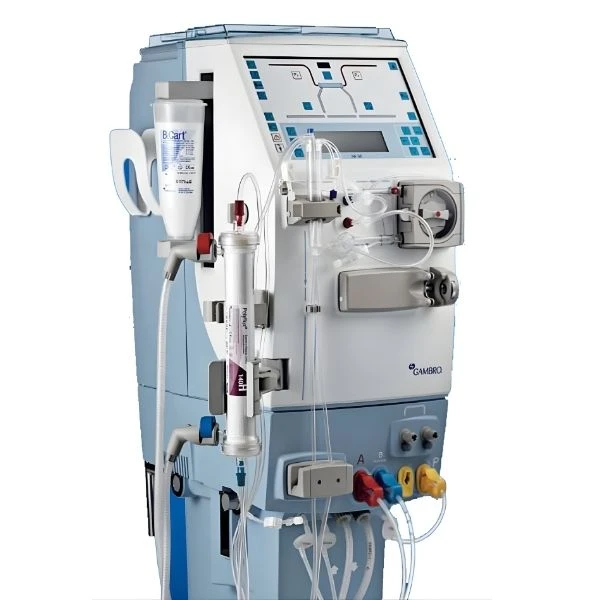

Gambro Ak 96 Hemodialysis Machine

New

Specifications

Product Name : Gambro AK 96 Hemodialysis Machine
Dialysis Modality : Hemodialysis (HD), Single-needle dialysis
Blood Flow Rate : 20 – 500 mL/min
Dialysate Flow Rate : 300 – 700 mL/min
Ultrafiltration Rate : 0 – 4 L/h
Ultrafiltration Accuracy : ±50 mL/h or ±1%
Heparin Pump Rate : 0 – 10 mL/h
Arterial Pressure Range : −700 to +750 mmHg
Venous Pressure Range : −700 to +750 mmHg
Air Bubble Detection : Ultrasonic sensor
Blood Leak Detection : Infrared detector
Dialysate Sodium Range : 130 – 160 mmol/L
Bicarbonate Range : 20 – 40 mmol/L
Dialysate pH Measurement Range : 1.0 – 9.9
Water Inlet Pressure : 0.12 – 0.6 MPa (1.2 – 6 bar)
Water Temperature : 5 – 30 °C
Power Supply : 115 / 230 V AC
Frequency : 50 – 60 Hz
Power Consumption : Up to 2025 W
Dimensions (H × W × D) : Approx. 1305 × 585 × 620 mm
Weight : Approx. 60 kg
Operating Temperature : 18 – 35 °C
Connectivity : RS232 / RS422 external interface
Disinfection Methods : Thermal (heat), citric acid, hypochlorite, peracetic acid, formaldehyde

highlights

Real-time dialysis adequacy monitoring using Diascan® technology
Integrated hygienic fluid pathway to minimize infection risk
Automated treatment setup to reduce staff workload
Flexible dialysate flow and profiling options for personalized therapy
Thermal and chemical disinfection programs for machine hygiene
Compact mobile design with lockable castors
Battery backup support for uninterrupted treatment

in the box

Gambro AK 96 Hemodialysis Machine (Main Unit)
Integrated blood pump module
Heparin syringe pump
Dialysate preparation and monitoring system
Bicarbonate cartridge holder (BiCart interface)
Power cable and connection accessories
User / operator manual
Installation and maintenance documentation

Use Cases :

Hospital dialysis units
Standalone dialysis centers
Nephrology departments
Maintenance dialysis for chronic kidney disease (CKD)
Acute kidney injury (AKI) dialysis treatment
Self-care or home dialysis programs under trained supervision

Key Features :

Diascan® dialysis dose monitoring for real-time Kt/V measurement.
Automated priming, connection, and rinse-back functions to simplify treatment setup.
Integrated hygiene chain with U9000® ultrafilter and drainable fluid pathways.
Thermal disinfection cycle up to 93 °C for improved microbiological safety.
Heparin syringe pump for controlled anticoagulation during dialysis.
Variable dialysate flow control for flexible treatment options.
Blood leak detection and air bubble detection systems for patient safety.
Battery backup capability to safely complete treatment during power failures.
Standby mode to reduce water and concentrate consumption between sessions.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Gambro AK 96 Hemodialysis Machine is an advanced renal therapy system designed to deliver safe and effective hemodialysis (HD) treatment for patients suffering from kidney failure. Developed by Gambro (now part of Baxter International), the system combines high treatment performance with operati...
