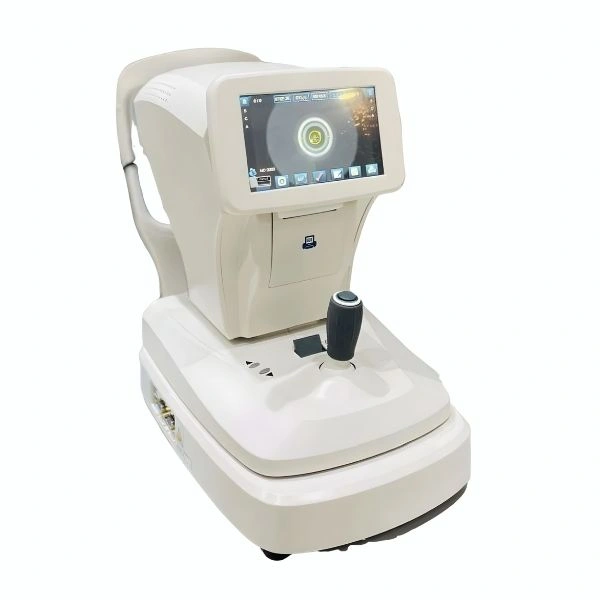

G-Matroninx R100+ Digital Autorefractometer

New

Specifications

Model Name / Number : R100+
Display : 7″ TFT LCD Touch Screen
Measurement Mode : Refractometry Mode (Auto & Manual)
Vertex Distance (VD) : 0 mm, 12 mm, 13.5 mm, 15 mm
Sphere Range (SPH) : -30 D to +25 D (various step options)
Cylinder (CYL) : 0.00 D to ±10.00 D
Axis Range : 1° – 180°
Pupil Distance (PD) : 10 mm – 85 mm
Minimum Pupil Diameter : 2.00 mm
Measuring Time : < 0.5 s
Corneal Power Range : 33.00 D – 67.00 D
Corneal Astigmatism : 0.00 D – 15.00 D
Built-In Printer : 57 mm thermal printer
Power Supply : AC 100–240 V, 50/60 Hz
Weight : ~18 kg
Dimensions : 725 mm (L) × 385 mm (W) × 575 mm (H)

highlights

Fully automated refractive measurement—with both manual focus and auto-measure functionality.
ouchscreen interface improves ease of navigation during exams.
Integrated thermal printer for fast hard-copy results.
Broad measurement capabilities accommodate a wide range of refractive errors.
Compact, ergonomic design suitable for clinical tabletop use.

in the box

Auto Refractometer unit (G Matronix R100+)
Power cable(s) compatible with local mains supply
Built-in thermal printer with paper roll
User Manual / Instruction Guide
Protective packaging materials

Use Cases :

Objective refractive error assessment in eye clinics and hospitals.
Prescription measurements during routine eye exams.
Pre-optical prescription screening before glasses or contact lens fitting.
High-volume optometry practices looking to improve speed and precision.
Patient screening and refractive assessments by optometrists and ophthalmic technicians.

Key Features :

Touchscreen Control – Adjustable 7″ TFT LCD touchscreen for intuitive operation and clear result display.
Auto-Measure Function – Automatic measurement with minimal operator input speeds up testing.
Hartmann Imaging Processing – Advanced imaging technology for accurate refractive data acquisition.
Wide Measurement Range – Capable of both low and high refractive error ranges for broad patient applicability.Wide Measurement Range – Capable of both low and high refractive error ranges for broad patient applicability.
Built-In Thermal Printer – Quick printed results directly from the device.
Data Recording – Stores multiple measurement values per eye for review and record-keeping.
Adjustable Display – Tilt and angle adjustment for operator comfort.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The G Matronix Auto Refractometer R100+ is an advanced, automated refractive eye diagnostic device designed for optometrists, ophthalmologists, and eye clinics. It rapidly and accurately measures refractive errors such as myopia, hyperopia, and astigmatism. The instrument features a digital touchscr...
