G-Matronix SLK-5700T Digital Auto Lensmeter

New

Specifications

Model Name : SLK-5700T Digital Auto Lensmeter
Operation Mode : Automatic / Digital
Display Color : LCD (approx. 5.6″ / full graphic)
Sphere Range : ~ –25.00D to +25.00D (steps 0.01 / 0.06 / 0.12 / 0.25D)
Cylinder Range : ~ –10.00D to +10.00D (steps 0.01 / 0.06 / 0.12 / 0.25D)
Axis Range : 0° – 180° (1° steps)
Prism Measurement : 0 – 10D (approx.)
PD Range : Single eye: 20–39.5mm; Binocular: 40–85mm (0.05mm steps)
Lens Diameter Range : ~15mm – 100mm
Contact Lens Range : ~ –25.00D to +25.00D (BC 6.00–9.00)
Printer : Built-in Thermal Printer
Power Supply : AC 100–240V, 50/60Hz (max ~40W)
Weight : ~3.6–4.0 kg
Dimensions : ~194 × 210 × 408 mm

highlights

Fast & Accurate Digital Measurement — Delivers reliable readings quickly for high-volume practices.
Advanced Optical Sensor System — Green LED + cluster measurement enhances precision and repeatability.
User-Friendly Operation — Automatic detection and measurement with minimal setup.
Compact & Durable Design — Practical for everyday use in clinical and retail environments.
Built-In Printing — Immediate physical output of results.

in the box

Main SLK-5700T Digital Auto Lensmeter Unit
Power Cable(s)
Built-in Thermal Printer Paper Roll
User Manual / Instruction Guide
Protective Packaging

Use Cases :

Prescription Verification: Confirming the correct optical power of newly made spectacle lenses.
Optical Retail & Eye Clinics: Routine lens measurements and checks in optometry practices and optical shops.
Contact Lens Measurement: Checking power and base curve specifications for compatible contact lenses.
Progressive & Multifocal Lens Analysis: Measuring complex lens designs with accuracy.
Quality Control: Ensuring lens parameters meet prescription requirements in lab environments.

Key Features :

Automatic Digital Operation: Measures lenses with minimal operator input, reducing manual errors and speeding up workflow.
Advanced LED/Cluster Technology: Utilizes green LED cluster measurement and Hartmann sensor principles for stable and accurate readings across lens types (including progressive and high-bend lenses).
Wide Measuring Ranges: Covers broad sphere, cylinder, axis, PD, and lens diameter values to suit most spectacles and contact lenses.
Built-In High-Speed Thermal Printer: Prints measurement results instantly for documentation or patient records.
Auto Lens Detection: Automatically identifies lens type and adjusts measurement mode accordingly.
Compact and Ergonomic Design: Lightweight and space-efficient profile fits well on optical counters.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

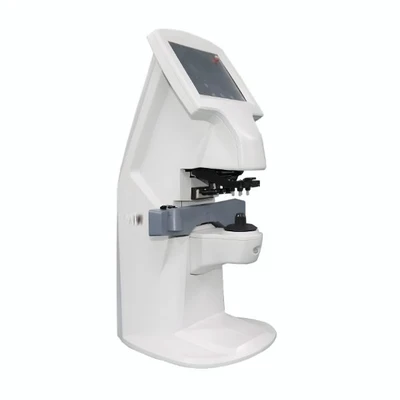

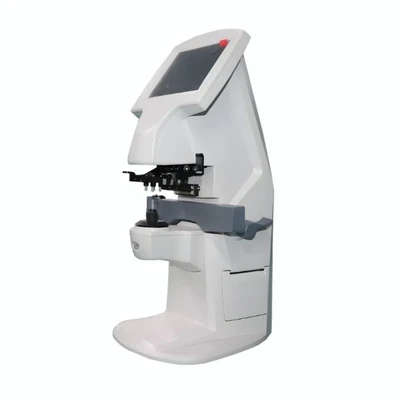

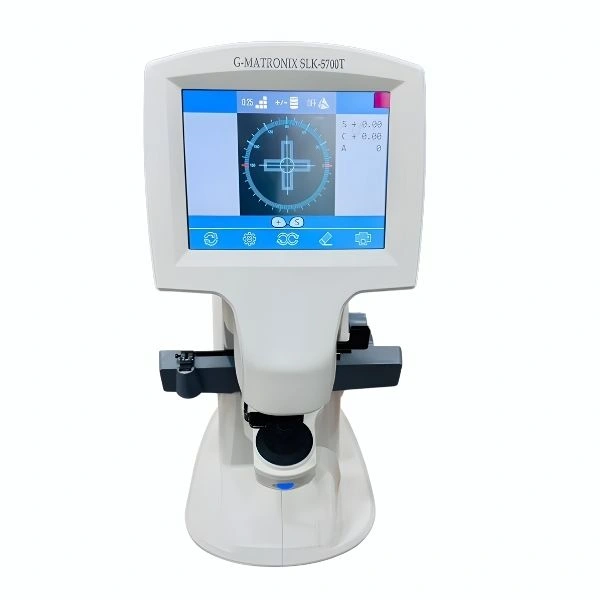

The G-Matronix SLK-5700T Digital Auto Lensmeter is a fully automatic digital lens measuring device designed for opticians, ophthalmic clinics, and optical labs. It provides fast, accurate measurements of lens powers (sphere, cylinder, axis), pupillary distance (PD), prism, and more—helping verify pr...
