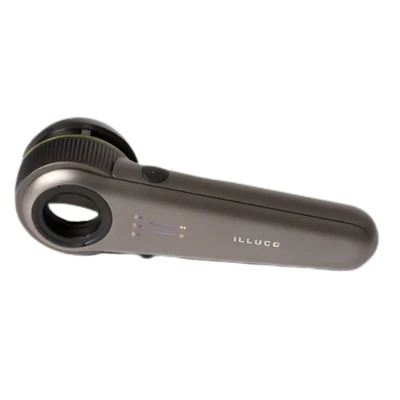

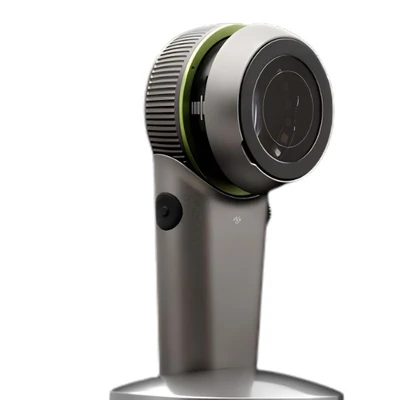

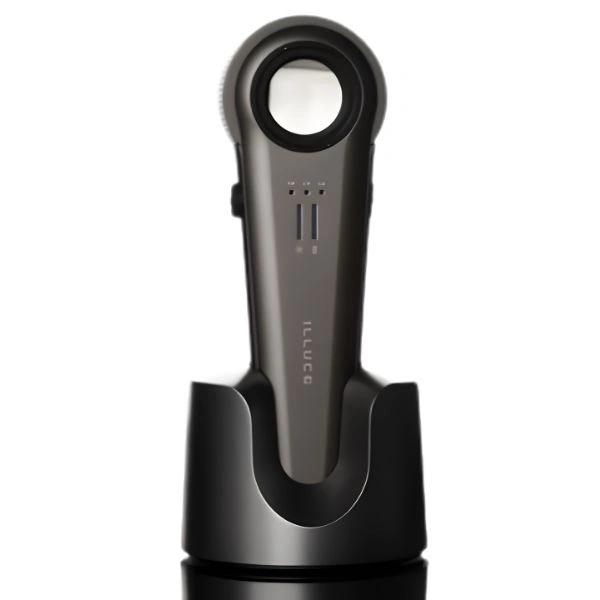

ILLUCO IDS-9100 Dermatoscope - 12x Optical Magnification

New

0.0|0 Ratings

Quantity :

Specifications

Product Name : ILLUCO IDS-9100 Dermatoscope
Magnification : 12x Optical Magnification
Aperture / FOV : 20 mm
Optical Resolution : 0.006 mm
Resolution Capability : 80 Line Pairs
Illumination Modes : Cross-Polarized, Parallel-Polarized, UV
UV Wavelength : 365 nm
UV Output : 18 mW
LED Configuration : 16 White LEDs + 4 UV LEDs
Brightness Levels : 4 Levels
Color Temperature : 6500K
Polarization : Cross & Parallel
Battery Type : Rechargeable Lithium-Ion
Battery Capacity : 3500 mAh / 3.7V
Continuous Runtime : Up to 300 minutes
Standby Time : Up to 14 days
Charging Interface : USB-C
Smartphone Compatibility : Yes
Diopter Adjustment : -6 to +6 dpt
Housing Material : Full Metal Body
Infection Control : Infection Control Film
Weight : Approx. 306 g
Distortion Rate : Approx. 4.0%

highlights

First dermatoscope with 12x optical magnification
Enhanced lesion visualization with ultra-high resolution optics
UV illumination for fluorescence-based examination
80 line-pair resolution capability
Natural skin tone rendering with high CRI illumination
41% lower distortion versus certain competing dermatoscopes
Wide detailed imaging with minimal repositioning
Durable premium metal-body construction
Long battery runtime with fast USB-C charging
Smartphone-ready imaging and clinical documentation support

in the box

IDS-9100 Main Unit
Compact Universal Clamp
Leather Pouch
USB-C Charging Cable
Infection Control Film
User Manual
Lens Cleaning Cloth

Use Cases :

Dermatology clinical examinations
Skin lesion and mole assessment
Melanoma screening
Pigmentation analysis
Vascular structure visualization
Fluorescence imaging using UV mode
Detection of infections and subsurface abnormalities
Dermatology teaching and documentation

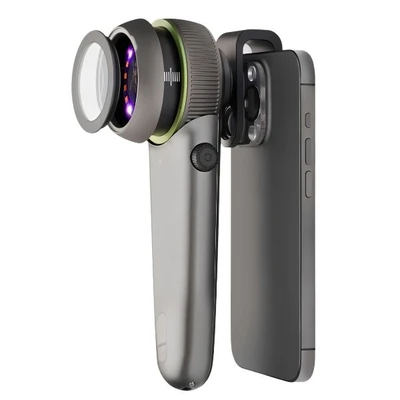

Smartphone-based dermoscopic imaging
High-detail dermatological diagnostics

Key Features :

12x optical magnification
12 lighting settings (3 modes × 4 brightness levels)
Cross & parallel polarization modes
Integrated 365 nm UV illumination
High color rendering index for accurate skin tone visualization
Ultra-sharp 0.006 mm optical resolution
Reduced image distortion (approximately 40% lower than leading competitor)
20 mm aperture / field of view
Smartphone and camera compatibility
USB-C charging support
Rechargeable 3500 mAh lithium-ion battery
Up to 300 minutes continuous runtime
Up to 14 days standby time
Full metal body construction
Infection control film system
Adjustable diopter range from -6 to +6 dpt
Four-step brightness adjustment
Compact universal clamp included

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The ILLUCO IDS-9100 Dermatoscope is an advanced clinical dermatoscope engineered for enhanced clarity and precision during skin examinations. It is promoted as the first dermatoscope offering true 12x optical magnification, enabling highly detailed visualization of skin structures and lesions.

The ...
