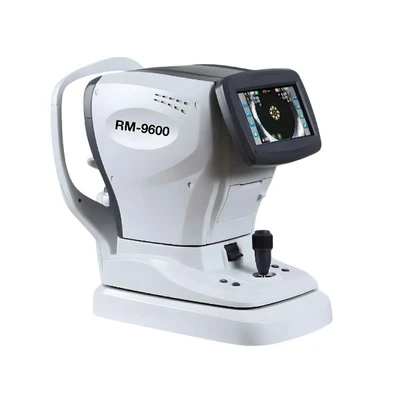

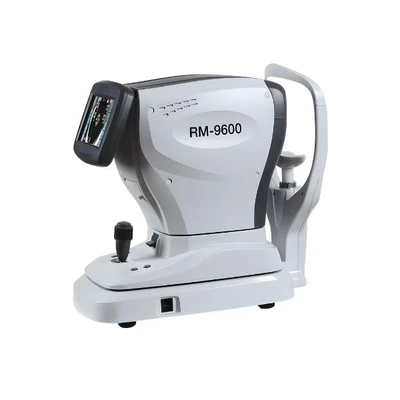

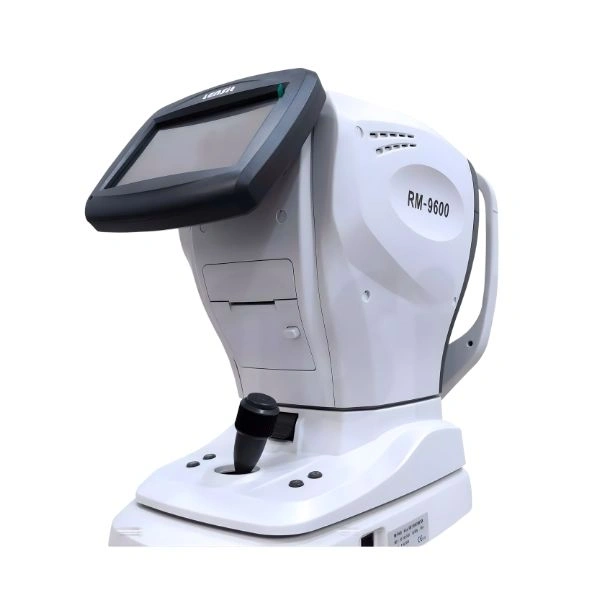

Lensit RM 9600 Auto Refractometer

New

₹1,92,000₹318,00040% off

Specifications

Model Name : Lensit RM-9600 Auto Refractometer
Measurement Modes : Refraction / Keratometry (depending on variant)
Vertex Distance : 0.0, 12.0, 13.75, 15.00 mm
Sphere (S) : –25.00 D to +22.00 D (0.12 / 0.25 D step) (VD=12 mm)
Cylinder (C) : 0.00 to ±10.00 D (0.12 / 0.25 step)
Axis (A) : 0 ° – 180 ° (1 ° step)
Pupil Distance (PD) : 10 mm – 85 mm
Min. Measurable Pupil Diameter : Ø2.0 mm
Keratometry (Optional) : Curvature Radius: 5 – 10 mm (0.01 mm step)
Corneal Refractive Power : 33.75 D – 67.50 D (0.12 / 0.25 D step)
Corneal Cylindrical Power : 0.00 – 15.00 D (0.12 / 0.25 D step)
LCD Display : 7.0″ Color LCD (angle adjustable)
Printer : Thermal printer with easy loading & auto cutter
Data Output : RS-232 / Bluetooth
Power Supply : AC 100-240 V, 50/60 Hz, 50 W
Dimensions (W×D×H) : 262 × 487 × 467 mm
Weight : ~17.5 kg

highlights

Automatic positioning & tracking
IOL measurement mode
7-inch adjustable touchscreen display
Motorized chin rest & height adjustment
Built-in fast thermal printer
ARM Cortex-A8 processor
Supports pupil size measurement
Comfortable ergonomic design

in the box

Lensit RM-9600 Auto Refractometer unit
Motorized Chin Rest and Height Adjustment unit
User Manual (documentation)
Power Cable
Thermal Printer Paper (for built-in printer)
Protective Dust Cover (may vary by seller)

Use Cases :

Objective refraction measurements to determine refractive errors.
Assessing sphere, cylinder, axis, and pupil size before further clinical tests or prescriptions.
Supporting eyeglass/contact lens prescriptions by providing reliable baseline refractive data.
Handling high patient volumes efficiently in clinics and hospitals due to its automatic features and motorized adjustments.
Providing data connectivity for seamless integration with clinic systems and record-keeping.

Key Features :

Advanced refraction measurement technology for precise sphere, cylinder, and axis measurements.
Automatic positioning & tracking — identifies the optimal measuring position and keeps focus, reducing operator workload.
IOL measurement mode for patients with intraocular lenses.
7-inch adjustable touchscreen display (90° angle) for comfortable operation whether seated or standing.
Motorized chin rest & height adjustment for smoother and faster patient alignment.
Built-in fast thermal printer with easy paper loading and auto cutter.
ARM Cortex-A8 processor for quick and accurate measurements.
Supports pupil size measurement and data output via RS-232/Bluetooth.
Comfortable ergonomic design suitable for high-volume clinical workflows.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The LENSit RM-9600 Auto Refractometer is a professional ophthalmic diagnostic instrument designed to accurately measure refractive errors of the eye. It combines advanced refraction measurement technology with an ergonomic design to support fast, reliable eye exams. The instrument includes automatic...
