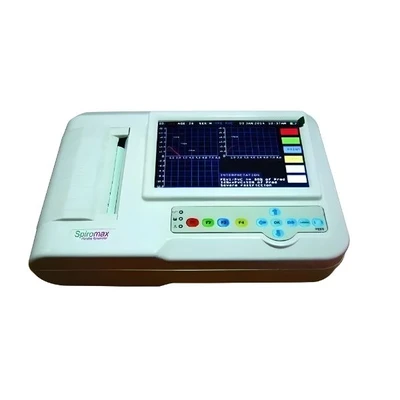

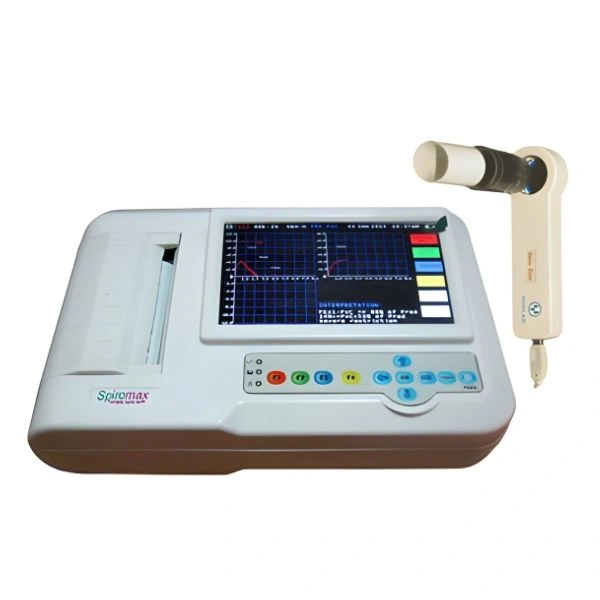

Medicaid Spiromax Portable Spirometer

New

Specifications

Display : Color TFT screen (approx. 140 × 80 mm)
Flow Measurement : Bi-directional digital turbine
Volume Measurement : Flow integration method
Flow Range : 0.03 – 20 L/s
Volume Range : 0 – 12 L (BTPS)
Data Storage : Up to ~200 patient records
Connectivity : USB interface
Power Supply : Rechargeable battery + mains power
Operating Temp : 0 – 50 °C
Weight : ~750 g
Dimensions : ~165 × 150 × 40 mm

highlights

Comprehensive Testing: Supports essential spirometry tests (FVC, SVC, MVV) in a portable form factor.
Local & Portable: Combines mains and battery power for flexibility in varied clinical environments.
Easy Data Management: On-device storage and PC export capability simplifies record keeping and trend analysis.
Print-Ready Reports: Built-in printer enables immediate hard-copy output for patient files.
Compact & Lightweight: Designed for quick transport and use on the go (~750 g).

in the box

✔️ Main Spiromax Portable Spirometer Unit
✔️ Digital turbine flow sensor
✔️ USB cable for data transfer
✔️ Adult mouthpieces
✔️ Pediatric mouthpiece adapters
✔️ Nose clips
✔️ Operating manual / documentation
✔️ Carrying case

Use Cases :

Hospital Pulmonary Diagnostics: For routine lung function testing in respiratory wards and general medicine departments.
Clinics & Diagnostic Centers: Supports basic pulmonary testing services in outpatient settings.
Pre-operative Evaluation: Assessment of lung function before surgical procedures.
Occupational Health Testing: Screening of lung health in environments with respiratory risk exposures.
Portable Field Use: Lightweight design enables lung function assessment during community health camps or mobile healthcare units.

Key Features :

High-resolution color TFT display for clear visualization of spirometry parameters and curves.
Built-in thermal array printer for instant hard-copy printouts.
Bi-directional digital turbine flow meter ensures accurate flow measurement.
Supports multiple spirometry tests including Forced Vital Capacity (FVC), Slow Vital Capacity (SVC), and Maximum Voluntary Ventilation (MVV).
Data storage capacity for up to ~200 patient records.
Dual power operation with rechargeable battery and mains power support.
USB connectivity for easy data transfer to PCs for analysis, reporting or record keeping.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Medicaid Spiromax Portable Spirometer is a compact, digital pulmonary function testing (PFT) device designed to measure lung function by analyzing airflow and lung volumes during forceful breathing maneuvers. It is suitable for hospitals, clinics, diagnostic centers, and portable respiratory ass...
