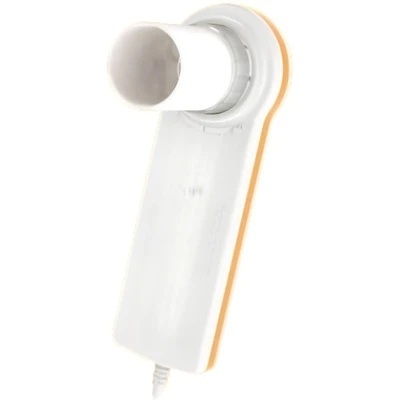

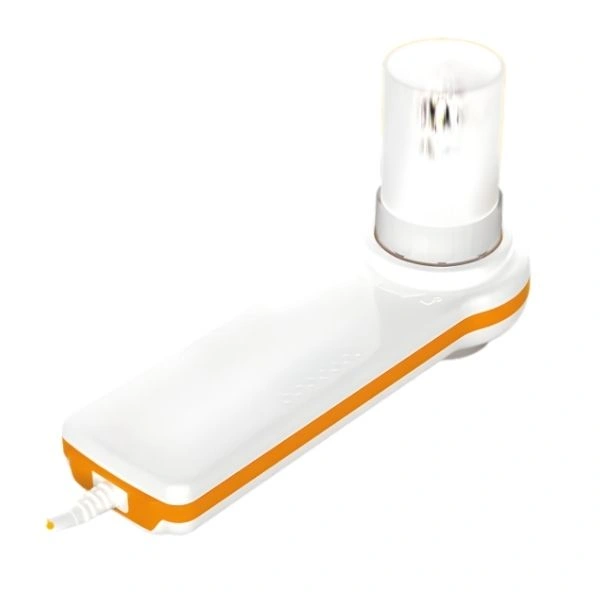

MIR Minispir PC Based Spirometer

New

₹1,35,000₹189,00029% off

Specifications

Flow Sensor : Bi-directional digital turbine
Flow Range : ±16 L/s
Volume Acuracy: ±3% or 50 mL
Flow Accuracy : ±5% or 200 mL/s
Parameters Measured : FVC, FEV1, FEV1/FVC / PEF, FEF25–75 / VC, IVC, MVV / Lung age and additional respiratory indices
Connection : USB (PC-based operation)
Power Supply : Powered via USB (no external power required)
Software : MIR Spiro / WinSpiro (Windows & Mac compatible)
Data Handling : Stored directly on PC with export capability
Dimensions : ~142 × 49.7 × 26 mm
Weight : ~65 g
Design : Compact, handheld, highly portable
Temperature Sensor : Semiconductor (BTPS correction)
Measurement Method : Turbine-based flow measurement
Compliance : ATS/ERS 2005 & 2019 standards / ISO 23747 & ISO 26782
Environmental / Operational : Operates via PC environment (software dependent) / Designed for clinical and field use with no calibration required for disposable turbines

highlights

Converts any PC into a full spirometry workstation
Highly portable and lightweight for field or bedside use
Provides instant interpretation and quality control grading
Ensures high accuracy with turbine flowmeter technology
Supports infection control with disposable turbine options
Seamless integration with hospital systems and databases

in the box

Minispir Spirometer device
USB cable (integrated/connection cable)
Nose clip
Carrying case
Spirometry software (MIR Spiro / WinSpiro)
User manual

Use Cases :

Pulmonary function testing in hospitals and clinics
COPD and asthma screening
Occupational health assessments
Use in primary care and respiratory labs
Pediatric spirometry testing with incentive tools
Research and clinical trials requiring spirometry data

Key Features :

Plug & Play USB device (no internal memory or display)
Real-time spirometry on PC screen (flow/volume & volume/time curves)
Supports tests: FVC, VC, MVV, PRE/POST bronchodilator comparison
EMR/EHR connectivity (HL7, GDT, FHIR integration)
Integrated temperature sensor for automatic BTPS correction
Pediatric incentive animations to improve patient compliance
Wide range of predicted values (GLI, ERS, etc.)
Compatible with MIR Spiro / WinSpiro software (Windows & Mac)
Compliant with ATS/ERS guidelines & ISO standards

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The MIR Minispir is a USB PC-based spirometer designed for software-driven pulmonary function testing. It connects directly to a computer and performs spirometry through dedicated software, providing real-time test results and graphical analysis. It is a plug-and-play, portable solution ideal for he...
