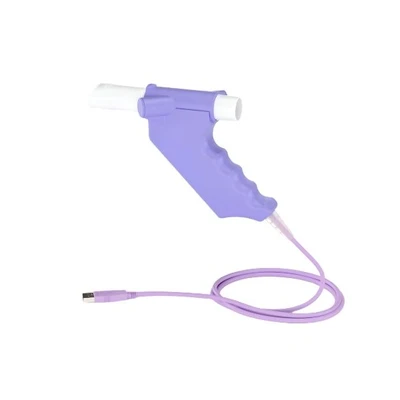

NDD Easy On Pc Handheld Spirometer

New

0.0|0 Ratings

Quantity :

Specifications

Product type : PC-based diagnostic spirometer
Measurement technology : TrueFlow™ ultrasound flow measurement
Measurement range : ±16 L/s
Flow resolution : 4 mL/s
Flow accuracy : ±2.5% or ±0.020 L/s
PEF accuracy : ±5% or ±0.200 L/s
Volume accuracy : ±2.5% or ±0.050 L
MVV accuracy : ±5% or ±5 L/min
Resistance : Approx. 0.3 cmH₂O/L/s at 16 L/s
Sample rate : 400 Hz
Testing age range : Spirometry ≥4 years
Test capacity : >10,000 tests
Device classification : Type BF applied part
PC connection : USB
Data management : EasyOne Connect; SQLite / MS SQL Server
EMR/Data export : HL7, XML, GDT
Printing : Direct printer or network
Operating temperature : 0–40°C / 32–104°F
Relative humidity : 5–90%
Atmospheric pressure : 620–1060 hPa
PC storage requirement : 1 GB installation/system; up to 4 GB data
RAM : 2 GB
Supported Windows : Windows 7, 8/8.1, 10 and 11
Standards : ATS/ERS 2005, ATS/ERS 2019, ATS/ERS 2022 interpretation strategies
Regulatory/quality standards : IEC 60601-1, IEC 60601-1-2, IEC 62304, IEC 62366, ISO 13485, ISO 14971, ISO 26782, ISO 23747
Regulatory status : FDA 510(k) clearance; MDR (EU) 2017/745; CE marked
Part number : 2700-3

highlights

The patented TrueFlow™ technology eliminates routine device calibration, helping simplify workflow and reduce maintenance requirements. A calibration check using a 3-L syringe can still be performed where required by organizations or protocols

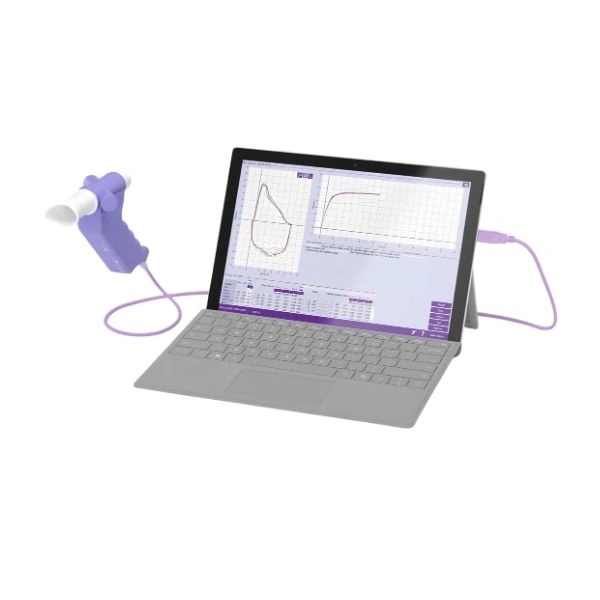

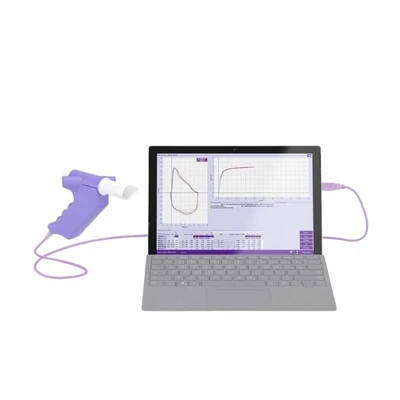

The sensor connects directly to a Windows PC, laptop or compatible tablet through USB, with EasyOne Connect providing the testing and data-management environment.
EasyOne Connect provides quality grading, interpretation, customized reports, predicted-value selection, pediatric incentives, external PFT data import and EMR integration.
The manufacturer specifies resistance to shock and vibration, strong cable protection and operation across a range of environmental conditions.
Data can be exported/integrated using HL7, XML and GDT, while data management is supported through SQLite and MS SQL Server.

in the box

Easy on-PC spirometer/sensor
EasyOne Connect software

Use Cases :

Hospitals and clinics – routine pulmonary function assessment
Pulmonology departments – diagnostic spirometry
Primary-care practices – respiratory screening and assessment
Occupational health – workplace respiratory testing
Pediatric testing – with animated incentive screens to encourage children
Pre- and post-bronchodilator testing
Respiratory disease assessment and follow-up
Research and clinical testing
EMR-integrated pulmonary function testing
Occupational programs requiring NIOSH/OSHA or similar compliance.

Key Features :

Calibration-free TrueFlow™ ultrasound technology
Accurate and reliable spirometry measurements
USB connection to PC/laptop
Powered by EasyOne Connect software
Real-time flow-volume and volume-time graphs
Instant test-quality feedback and interpretation
Pediatric animated incentive displays
Supports adult and pediatric spirometry from 4 years of age
Highly resistant to shock and vibration
Strong cable protection for demanding clinical environments
Supports customized reports
Large selection of predicted/normal value sets
Supports provocation protocols
EMR/EHR connectivity
Supports HL7, XML and GDT data interfaces
More than 10,000 tests can be performed
Supports ATS/ERS 2005 and 2019 spirometry standards.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The NDD Easy on-PC is a compact, PC-driven diagnostic spirometer designed for pulmonary function testing. It uses ndd’s TrueFlow™ ultrasound technology to measure respiratory flow and volume without requiring routine calibration. The device connects directly to a Windows-based PC or laptop through U...
