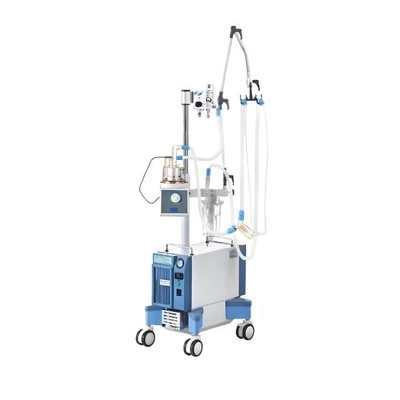

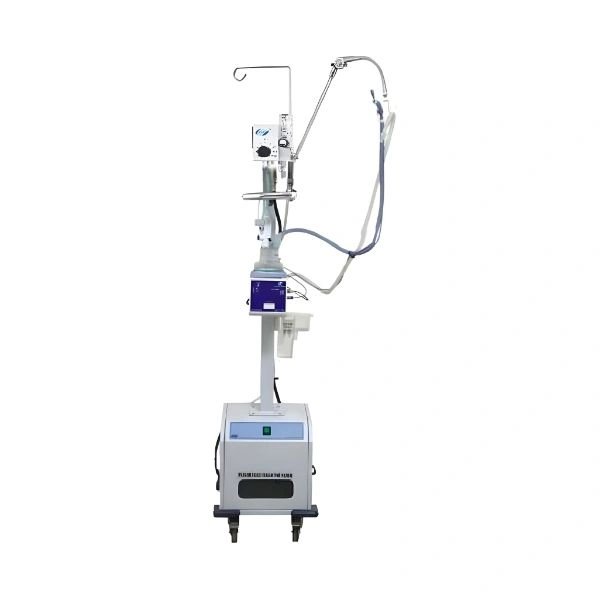

S.S Technomed Restohealth-01 Bubble CPAP System

New

₹3,20,000₹420,00024% off

Specifications

Product Name : SS Technomed Restohealth-01 Bubble CPAP System
Ventilation Mode : CPAP (Bubble CPAP) Mode
Scope of Application : Support for spontaneous breathing in newborns
Flow Regulation : 0–10 L/min (varies by air-oxygen blender)
Oxygen Concentration : 21 % – 100 %
CPAP Pressure Range : 300 Pa – 1000 Pa (3 cm H₂O – 10 cm H₂O)
Pressure Warning : Pneumatic sound alarm
Indicator Light : Operational status indicator
Working Noise : ≤ 55 dB (A)
Gas Input : Medical oxygen 0.3 MPa – 0.4 MPa
Power Supply : AC 220 V ± 22 V, 50 Hz ± 1 Hz
Certification : CE Certified, ISO 9001:2008

highlights

Continuous positive airway pressure delivery without mechanical ventilation.
Maintains functional residual capacity and enhances lung compliance in newborns.
Reduces the need for invasive ventilation in eligible patients.
Designed for low power consumption and quiet operation.
Portable and compact with a removable water tank for ease of use.

in the box

Restohealth-01 Bubble CPAP Unit (main device)
Water reservoir/bottle for bubble pressure generation
CPAP pressure adjustment bar/probe
Pneumatic alarm and indicator light assembly
Power cable and necessary connectors

Use Cases :

Support of neonates with respiratory distress requiring non-invasive respiratory support.
Premature and low birth-weight infants to help prevent alveolar collapse and improve oxygenation.
NICU (Neonatal Intensive Care Unit) settings where gentle CPAP is indicated.
Pediatric wards for infants needing CPAP therapy.
Transport CPAP support when connected to a power and oxygen source.

Key Features :

Bubble CPAP Mode: Provides stable continuous airway pressure delivered through a water column generator.
Adjustable Pressure: CPAP pressure can be set from 3 cm H₂O up to 10 cm H₂O using the CPAP pressure bar.
Automatic Water Level Control: Built-in mechanism ensures constant CPAP pressure levels.
Removable Water Tank: Reduces interruptions and allows easy maintenance.
Oxygen Mix Range: Supports oxygen concentrations from 21 % to 100 % (with an appropriate air-oxygen blender).
Pneumatic Alarm: Sound pressure warning for safety.
Low Noise: Operating sound typically ≤ 55 dB (A), suitable for NICU environments.
Indicator Light: Operational status display for easy monitoring.
CE & ISO Certified: Meets international quality standards.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The SS Technomed Restohealth-01 Bubble CPAP System is a neonatal Continuous Positive Airway Pressure (CPAP) support device that delivers a gentle, continuous positive pressure of gas to spontaneously breathing infants via a nasal interface. By maintaining positive pressure throughout the breathing c...
