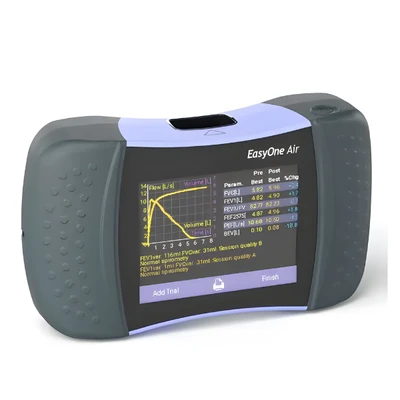

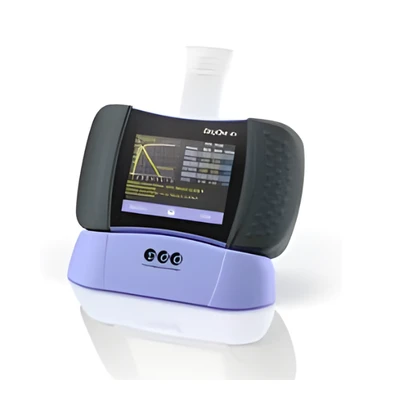

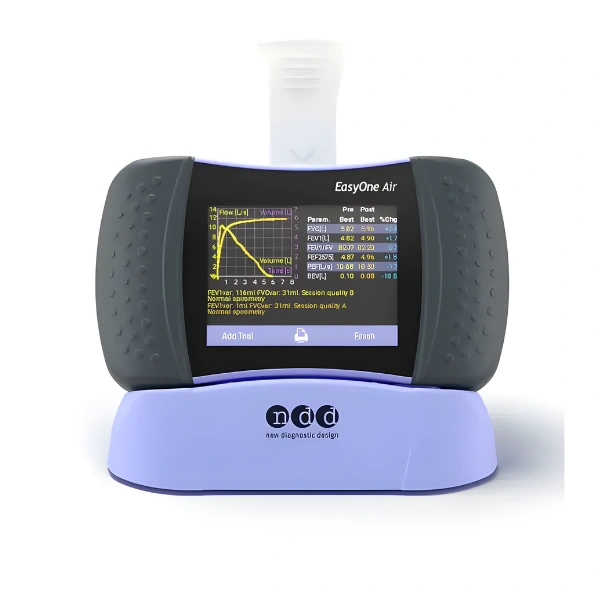

NDD EasyOne Air Portable & PC Spirometer

New

Specifications

Printing options : Direct to printer or with EasyOne Connect software
Data management : EasyOne Connect (SQLite, MS SQL Server)
Export : HL7, XML, GDT, with EasyOne Connect software
Data links : USB, Bluetooth
Test storage : >10,000 tests
Age range : Spirometry ≥4 years
Dimensions : 87 x 155 x 36 mm (H x W x D), 356 g
Device classification : Type BF applied part
Operating conditions : Temp 0 - 40 °C/ 32 - 104 °F, Rel. Humidity 5 - 90%, Atmosph. Pressure 700 - 1060 hPa
Power supply : Rechargeable lithum-ion battery, USB power supply
Rechargeable battery : Exchangeable, 3.6 VDC
Measuring range : ± 16 l/s
Flow Resolution : 4 ml/s
Flow Accuracy (except PEF) : ± 2% or 0.020 l/s
PEF Accuracy : ± 5% or 0.200 l/s
Volume Accuracy : ± 2% or 0.050 l
MVV Accuracy : ± 5% or 5 l/min
Resistance : <1.5 cm H20/l/s at 14 l/s

highlights

Utilizes TrueFlow™ technology for reliable, calibration-free spirometry.
Features a vivid color touchscreen for effortless navigation and data entry.
Offers both standalone portable use and PC connectivity.
Complies with ATS/ERS and NIOSH/OSHA standards.
Bluetooth and EMR integration for seamless connectivity.
Includes pediatric incentive screens for enhanced patient engagement.

Use Case :

Measure response and progress due to treatment, medication, and respiratory therapy
Smoking cessation programs
Occupational health assessments
Bedside pulmonary function testing
Clinical practice settings

Parameters :

FVC - ATI, BEV, EOTV, FEF10, FEF25, FEF25-75, FEF25-75_6, FEF40, FEF50, FEF50/FVC, FEF50/VCmax, FEF60, FEF75, FEF75-85, FEF80, FET, FET25-75, FEV.25, FEV.5, FEV.5/FVC, FEV.75, FEV.75/FEV6, FEV.75/FVC, FEV.75/VCmax, FEV1, FEV1/FEV6, FEV1/FVC, FEV1/FVC6, FEV1/VC, FEV1/VCmax, FEV1Q, FEV3/FVC, FEV3/VCmax, FEV3, FEV6, FVC, MEF20, MEF25, MEF40, MEF50, MEF60, MEF75, MEF90, MMEF, MTC1, MTC2, MTC3, MTCR, PEF, PEFT, t0, VC, Vcmax
FVL - ATI, BEV, CVI, E50/I50, EOTV, FEF10, FEF25, FEF25-75, FEF25-75_6, FEF40, FEF50, FEF50/FVC, FEF50/VCmax, FEF60, FEF75, FEF75-85, FEF80, FET, FET25-75, FEV.25, FEV.5, FEV.5/FVC, FEV.75, FEV.75/FEV6, FEV.75/FVC, FEV.75/VCmax, FEV1, FEV1/FEV6, FEV1/FIV1, FEV1/FIVC, FEV1/FVC, FEV1/VC, FEV1/VCmax, FEV3/FVC, FEV3/VCmax, FEV1Q, FEV3, FEV6, FIF25, FIF 25-75, FIF50, FIF50/FEF50, FIF75, FIV.25, FIV.5, FIV1, FIVC, FVC, MEF20, MEF25, MEF40, MEF50, MEF60, MEF75, MEF90, MIF25, MIF50, MIF75, MMEF, MMIF, MTC1, MTC2, MTC3, MTCR, PEF, PEFT, PIF, t0, VC, VCmax
SVC - ERV, IC, IRV, Rf, VC, VCex, VCin, VCmax, VT
MVV - MVV, MVV6, MVVtime, Rf, VCext, VT

Key Features :

View real-time graphs, quickly, enter patient data, and easily navigate with the high-resolution color touch screen.
Reliable design tried and tested at large screening events.
Extremely robust TrueFlow™ measurement technology.
Performs up to 100 complete tests with one battery charge.
Proven completely calibration-free device.
Portable mode: store data on EasyOne® Air spirometer with real-time curve display.
PC mode: use your laptop or desktop PC for spirometry maneuvers.
Bluetooth and USB modules connect printers and synchronize data.
Integrate into all major EMR/EHR systems via HL7, XML, GDT, or API.
Reference projects to all major EMR systems available on request.
Calibration-free with proven lifetime stability.
Contact and resistance-free measurement.
Outstanding accuracy and robustness.
Patented technology.
Customize reports and choose the parameters to be displayed.
Choose graphs to be displayed.
Color reports for better visibility.
Arrange graphs and parameters through EasyOne Connect.
Choose between Z-score, % predicted and LLN through EasyOne Connect.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The NDD EasyOne Air Portable & PC Spirometer is a flexible, accurate, and proven spirometry solution designed to meet the needs of healthcare providers of all sizes. Its innovative TrueFlow™ technology ensures reliable, calibration-free results, providing worry-free operation for a lifetime. The int...
