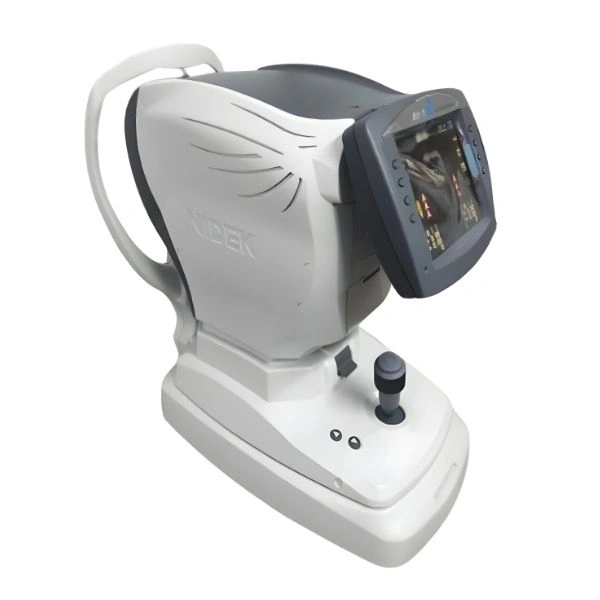

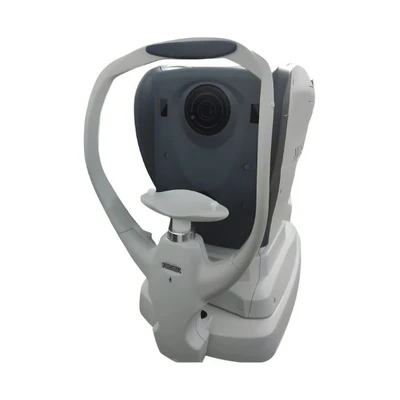

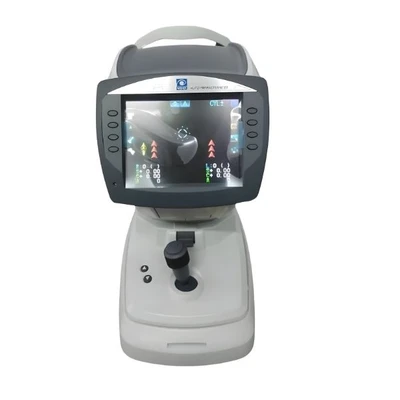

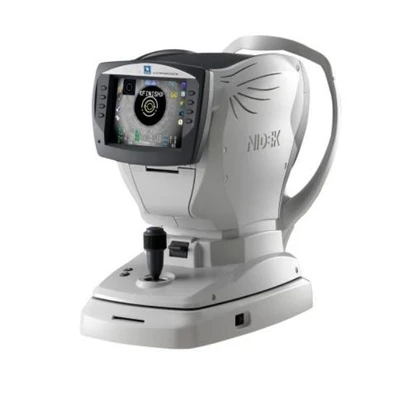

Nidek AR-1 Auto Refractometer

New

₹4,50,000₹550,00018% off

Specifications

Model Name : NIDEK AR-1 Auto Refractometer
Measurement Type : Objective refractive measurement (sphere, cylinder, axis)
Sphere Range : –30.00 to +25.00 D (VD = 12 mm)
Cylinder Range : 0 to ±12.00 D
Axis Range : 0° – 180°
Measurement Increments : 0.01 / 0.12 / 0.25 D; 1°/5°
Pupillary Distance (PD) : 30 – 85 mm (1 mm increments)
Pupil Size Measurement Range : 1.0 – 10.0 mm (0.1 mm increments)
Minimum Measurable Pupil Diameter : Φ2 mm (approx)
Display : 6.5″ tiltable colour LCD
Printer : High-speed thermal printer with auto cutter
Interfaces : RS-232C (×2), USB (×1), LAN (×1)
Power Supply : AC 100 – 240 V, 50/60 Hz
Power Consumption : ~100 VA
Dimensions (W×D×H) : ~260 × 495 × 457 mm
Auto Tracking : Y-direction auto tracking & auto shot

highlights

Large-area pupil imaging (up to 6 mm) helps assess how pupil size affects refractive results.
SLD + CCD combination improves measurement reliability in challenging clinical scenarios such as low-transparency media.
Auto tracking and auto-shot streamline workflow, saving time in busy clinical settings.
Built-in printer + multiple communication interfaces support modern clinic workflows.

in the box

Auto Refractometer unit (AR-1)
Reference Eye (Model Eye)
Protective Cover
Printer Paper Roller
User’s Manual
Power Cord

Use Cases :

Objective refractive assessments (sphere, cylinder, axis) as part of routine eye exams.
Preliminary data for eyeglass/contact lens prescription workflows.
Measurement of pupil size and pupillary distance to support comprehensive optometric evaluations.
High-volume eye clinics, optical stores, and hospitals requiring fast, repeatable refractive measurements with minimal operator input.
Situations where automated alignment and confidence indices improve measurement consistency.

Key Features :

Accurate objective refraction measurement across a broad range of refractive powers.
Large pupil zone imaging method (up to 6 mm) for assessment of central vs peripheral refraction.
Super Luminescent Diode (SLD) + high-sensitivity CCD for sharper, clearer imaging — even with low reflectance (e.g., cataract patients).
Y-direction automatic tracking and auto shot — faster, easier alignment and measurement without manual adjustments.
Tiltable colour LCD screen (approx. 6.5″) for operator convenience.
High-speed thermal line printer with easy paper loading and automatic paper cutter.
Multiple interfaces (RS-232C, USB, LAN) for seamless data connectivity.
Optional NIDEK EyeCare card for wireless data transfer (accessory).

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The NIDEK AR-1 Auto Refractometer is a tabletop ophthalmic diagnostic device designed to measure the objective refractive error (sphere, cylinder, axis) of the eye with speed and clinical precision. Using advanced imaging and tracking technology, it provides accurate, consistent results with minimal...
