Oxymed Air Smart ST/30 BPAP Machine

New

4.2|7 Ratings

Quantity :

Specifications

Device Type : BiPAP ST (Spontaneous/Timed)
Therapy Modes : CPAP, S, ST, T, PC, VAT/VAPS
Pressure Range : 4–30 cmH₂O
IPAP : Adjustable up to 30 cmH₂O
EPAP : Adjustable
Backup Breath Rate : 0–30 BPM
Pressure Increment : 0.5 cmH₂O
Ramp Time : 0–45 Minutes
Humidifier : Heated & Detachable
Humidity Levels : 1–5 Levels
Water Tank Capacity : 320 mL ±10 mL
Sound Level : <30 dB
Display : Color TFT Ergonomic Tilted Display
Data Storage : USB/SD Card Support
Storage Capacity : Up to 16 GB
Leak Compensation : Up to 60 L/min
Auto On/Off : Yes
Trigger Sensitivity : Adjustable
Cycle Sensitivity : Adjustable
Weight : 1.2 kg (without humidifier), approx. 2.0 kg (with humidifier)
Power Supply : 100–240V AC, 50/60 Hz
Operating Temperature : 5°C – 35°C
Warranty : 3 Years

highlights

Advanced ST Mode with timed backup breaths
VAT technology automatically adapts pressure support
Compact and lightweight design
Quiet turbine ensures minimal sleep disturbance
Heated humidification with adjustable levels
Adjustable ramp time from 0–45 minutes
Stores long-term therapy data through USB/SD support
Detachable humidifier for easy cleaning and maintenance

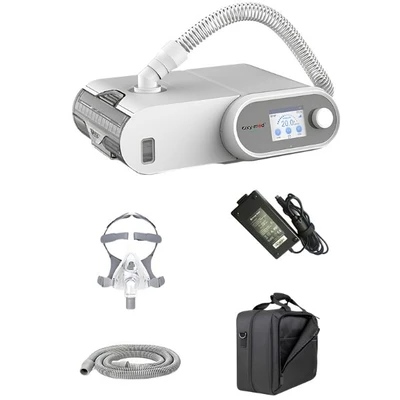

in the box

BPAP Device
Heated Humidifier
Full Face Mask
Air Tube / Hose Pipe
Power Adapter with Wire
Filter
USB Pen Drive / SD Card
Carry Bag / Travel Bag
User Manual
Certification : CE Certified
Country of Origin : India
Turbine : German-engineered Turbine

Use Cases :

Obstructive Sleep Apnea (OSA)
Central Sleep Apnea
COPD management
Chronic Respiratory Failure
Hypoventilation Syndrome
Neuromuscular Disorders
Home-based non-invasive ventilation (NIV)
Patients intolerant to standard CPAP therapy

Key Features :

Supports multiple therapy modes: CPAP, S, ST, T, PC, VAT
Volume Assured Technology (VAT/VAPS) for personalized tidal volume support
Backup breath rate for continuous ventilation support
Adjustable pressure range from 4–30 cmH₂O
Heated humidifier with detachable design
Ergonomic tilted TFT color display
Auto On/Off functionality
Leakage compensation up to 60 L/min
Trigger and cycle sensitivity adjustment
Ultra-quiet operation below 30 dB
USB data storage support with up to 16 GB capacity
Preheat functionality for faster humidification
German-engineered turbine technology
CE Certified device

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Oxymed AirSmart ST/30 BPAP Machine is a non-invasive BiLevel ventilation device designed for patients with respiratory insufficiency, obstructive sleep apnea (OSA), COPD, and other breathing disorders. The machine features advanced Volume Assured Technology (VAT), backup breath rate support, mul...
