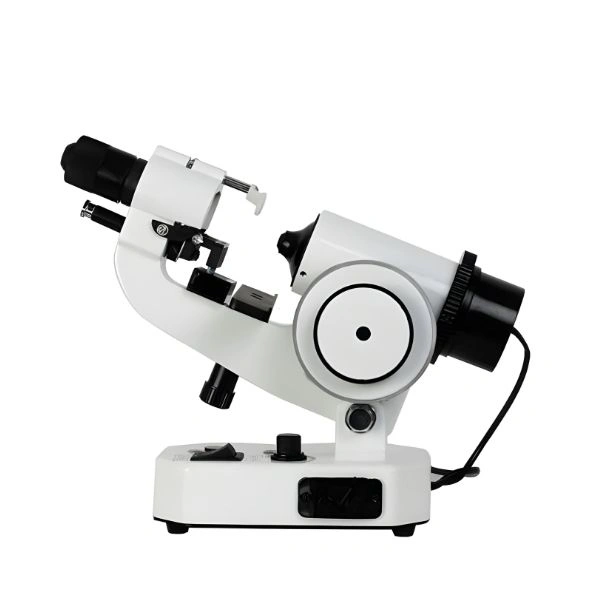

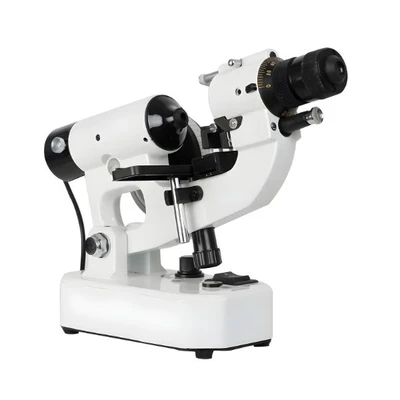

Equipmedy RL100 Manual Lensmeter

New

₹7,900₹14,00044% off

Specifications

Model : RL-1000 Manual Lensometer
Operation Mode : Manual
Target System : Direct scale reading with cross/corona target
Vertex Power Scale : ~0 to ±20 diopters (approx.)
Graduations : 0.25 D scale steps
Prism Scale : 0 to 5 prism diopters
Lens Diameter Capacity : ~30–80 mm
Tilt Angle : Adjustable 0°–90°
Power Source : AA dry cells (2×1.5 V) or AC mains (220 V/110 V depending on variant)
Illumination : Low-voltage lamp (≈2.3 V)
Material : Aluminium body
Dimensions : ~300 × 150–160 × 200 mm
Weight : ~2.5–3.7 kg (model dependent)

highlights

✔ Accurate manual measurement of lens powers without digital components.
✔ Clear cross target for straightforward optical alignment.
✔ Adjustable tilt enables easy lens handling and adds versatility.
✔ Lightweight and portable — ideal for small clinics or on-the-go verification.
✔ Cost-effective alternative to automated lensometers for basic optometry needs.

in the box

Manual Lensometer unit (RL-1000)
Eyepiece and optical target assembly
Lens holder / clamp
Power adapter / dry cells (where applicable)
Instruction manual & warranty card

Use Cases :

Verify eyeglass prescriptions before dispensing.
Measure spherical, cylindrical and axis power of lenses.
Check prism power and base direction in lenses.
Confirm RX data on finished lenses in optical stores.
Assist in toric and bifocal lens alignment during fitting and verification.

Key Features :

Manual operation with direct scale reading for precise measurements.
Cross line / corona target for easy and clear observation.
Adjustable tilt angle (0° – 90°) to facilitate lens placement and contact lens measurement.
Portable and lightweight, suitable for clinic or lab environments.
Dual power options: Works with dry cell batteries or AC mains supply (depending on model).
Durable construction (often aluminium body).

Warranty

No Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Manual Lensometer RL-1000 is a manual optical measuring device designed to provide accurate lens power measurements, including spherical and cylindrical power, axis of astigmatism, and prism values. It uses an optical system with a direct scale and cross-target to deliver reliable readings for v...
