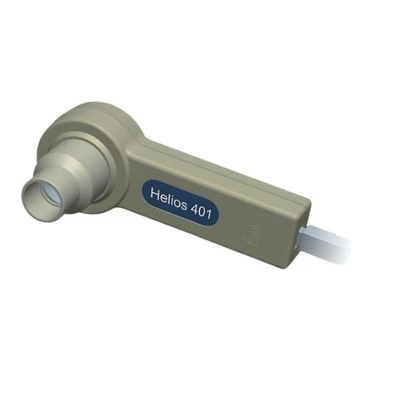

RMS Helios 401 PC Spirometer (PFT)
New4.1|57 Ratings
₹33,050₹45,00027% off
Quantity :
1
Specifications
- Model : RMS Helios 401 PC Based Spirometer
- Spirometry Tests : FVC, SVC, MVV
- Flow Range : –10 to +16 L/sec
- Maximum Volume : Up to 8 L
- Accuracy : ±1 %
- Transducer : Bi-directional turbine cartridge
- Turbine Sensor : Infrared interruption
- Flow Detection : Volume differential
- Power & Interface : USB powered and USB communication
- Dimensions : ~150 × 35 × 25 mm (handset)
- Weight : ~120 g (handset)
- Software Support : Windows-based PC (via USB connection)
highlights
- Comprehensive Parameter Set: Measures core and derived spirometry parameters with accuracy.
- Intuitive Software: Visual graphs and automated interpretation support faster clinical decisions.
- Lightweight & Portable: The ergonomic handset weighs around ~120 g, making it easy to transport.
- Customizable Reports: Generate tailored patient reports with doctor notes and curve printouts.
- Hygienic Operation: Easy-to-clean turbine and reusable mouthpieces support infection control.
in the box
- USB-Powered Ergonomic Handset
- Detachable Turbine Transducer
- USB Cable
- Software CD (or downloadable software)
- Reusable Mouthpieces
- Pediatric Nose Clip
- Carry Bag
- User Manual
Use Cases :
- Hospitals & Diagnostic Centers: Comprehensive lung function assessment for patients with respiratory symptoms.
- Outpatient Clinics & Pulmonology Practices: Routine monitoring of chronic respiratory diseases (e.g., asthma, COPD).
- Health Camps & Screening Programs: Portable and USB-powered design enables use in community health screenings.
- Research & Pulmonary Studies: Generates detailed spirometry data and trend analysis for clinical research.
Key Features :

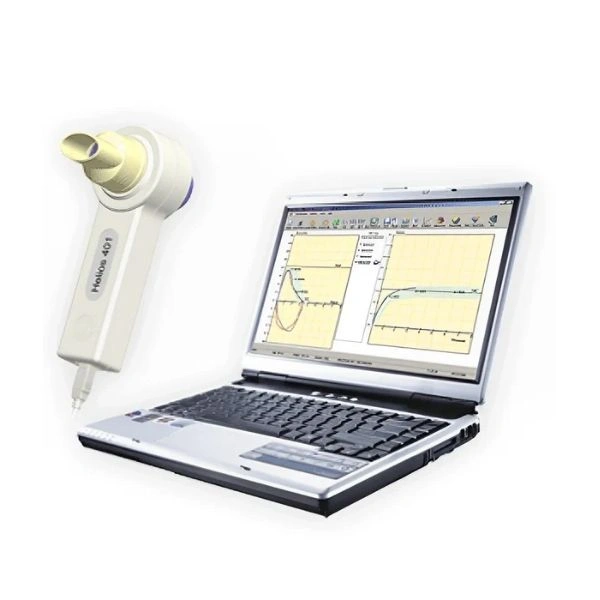

- PC Based Integration: Connects to a desktop or laptop via USB for real-time testing, analysis, and reporting.
- Advanced Software: Offers up to 34 spirometry parameters, pre- and post-bronchodilator comparisons, lung age estimation, trend reports, and auto-interpretation.
- Advanced Software: Offers up to 34 spirometry parameters, pre- and post-bronchodilator comparisons, lung age estimation, trend reports, and auto-interpretation.

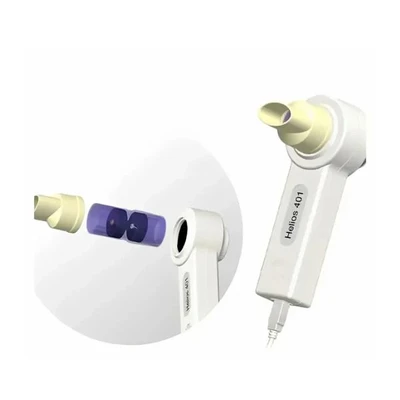

- Detachable Turbine Transducer: Digital turbine sensor with infrared interruption for accurate airflow measurement; easy to disinfect.
- Pediatric Incentives: Interactive graphics to help motivate children through test maneuvers.
- Pediatric Incentives: Interactive graphics to help motivate children through test maneuvers.
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The RMS Helios 401 PC Based Spirometer is a computer-integrated pulmonary function testing (PFT) device designed to assess lung function by measuring airflow and lung volumes. It connects via USB to a PC or laptop and uses advanced software to perform spirometry tests such as FVC (Forced Vital Capac...
