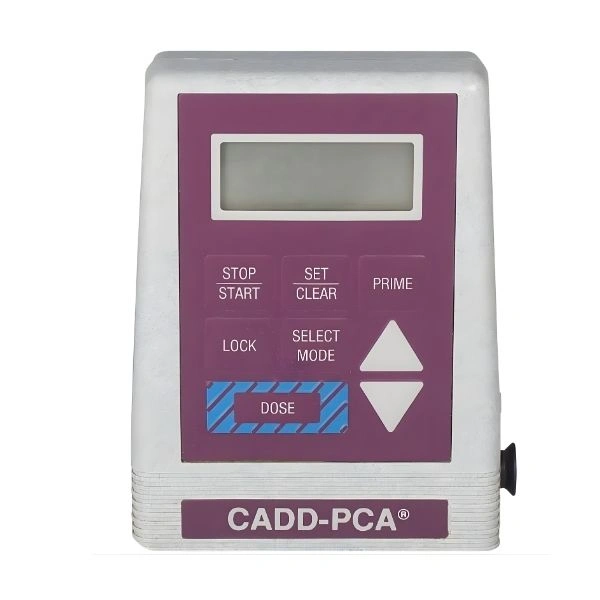

Smiths Medical CAD5800 PCA Pump

New

Specifications

Model : Smiths Medical CADD-5800 PCA Infusion Pump
Infusion Type : Ambulatory PCA infusion (patient controlled with lockout)
Patient-Activated Dose Interval : 5 min – 999 min (1 min increments)
Continuous Rate : 0–20 mL/hr or 0–99.5 mg/hr (depending on drug concentration)
Pump Resolution : 50 µL per interval
Delivery Accuracy : ± 6 % nominal
Reservoir Volume Range : 1–999 mL (rounded in 1 mL increments)
Display : LCD (basic numeric/parameter info)
Battery Type : 9 V alkaline (typical)
Weight : ≈ ~1 lb (~0.45 kg) including battery & reservoir
Dimensions : ~1.1″ × 3.5″ × 6.4″ (incl. reservoir)
Alarms & Alerts : Low battery, high pressure (delivery issues), pump errors
Control Keys : STOP/START, SET/CLEAR, PRIME, LOCK

highlights

Patient-Controlled Analgesia (PCA) — Empowers patients to manage pain within safe programmed limits.
Portable Design — Lightweight and battery compatible for mobile use
Safety Alarms — Integrated alerts enhance safe operation.
Simple Controls — Logical keypad and display make programming intuitive.

in the box

CADD-5800 PCA Pump unit
9 V Alkaline Battery
50 mL Medication Cassette Reservoir (demo)
Operator’s Manual & Warranty Info
Carrying Case / Carrying Pouch
Pump Key / Lock Key

Use Cases :

Post-operative Pain Management — Allows patients to self-administer controlled analgesic boluses post surgery.
Ambulatory/Recovery Units — Supports pain control during rehabilitation or slow-track recovery.
Oncology & Palliative Care — Provides flexible pain dosing in chronic or advanced care.
Outpatient/Home Analgesia — Portable battery operation supports pain therapy outside hospital settings.

Key Features :

Ambulatory PCA Delivery — Supports continuous flow and patient-controlled bolus dosing for individualized pain control.
Programmable Dose & Lockout — Clinician sets PCA dose, lockout intervals and safety limits to prevent overdose.
LCD Display — Visual interface shows current therapy settings and status.
Pump Controls & Keys — START/STOP, PRIME, SET/CLEAR and LOCK keys for simple operation and safe locking of settings.
Alarm & Safety Systems — Alerts for low battery, delivery errors, improper operation, and high pressure.
Battery Powered — Typically runs on a 9 V battery for true portable use.
Reservoir Compatible — Works with medication cassette reservoirs (e.g., 50–100 mL).

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Smiths Medical CADD-5800 PCA Pump is an ambulatory patient-controlled analgesia (PCA) infusion pump designed to deliver controlled medication therapy — typically pain management drugs such as opioids or other analgesics — using a flexible programmable regimen. The device is lightweight and power...
