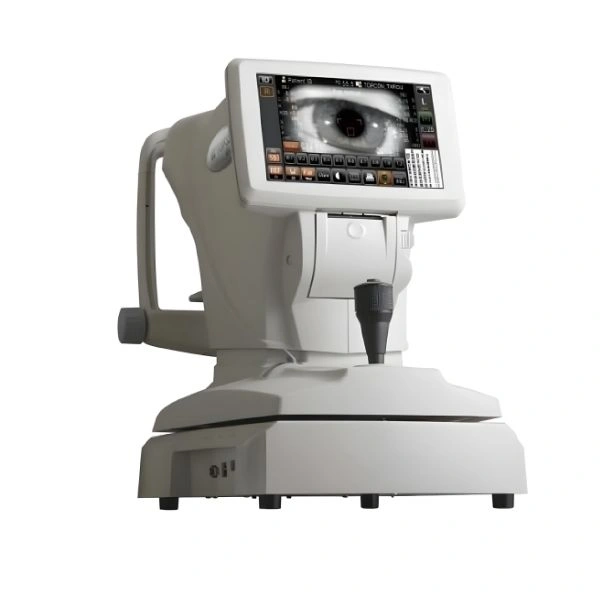

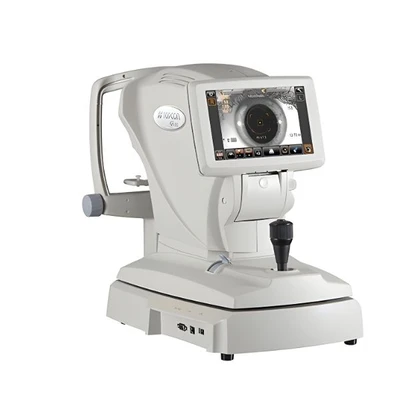

Topcon KR-800 Auto Kerato-Refractometer

New

4.2|55 Ratings

₹4,72,000₹640,00026% off

Quantity :

Specifications

Measurement Type : Refractive power + Keratometry (auto)
Spherical Refractive Power : -25D to +22D (0.01D/0.12D/0.25D steps)
Cylindrical Refractive Power : 0D to +10D (0.12D/0.25D steps)
Astigmatic Axial Angle : 0° to 180° (1°/5° steps)
Minimal Measurable Pupil Diameter : Ø 2 mm
Corneal Curvature Radius : 5.00 mm to 10.00 mm (0.01 mm steps)
Corneal Refractive Power : 67.50D to 33.75D (0.12D/0.25D steps)
PD (Pupillary Distance) Range : 20 mm to 85 mm (0.5 mm steps)
Display : 8.5-inch color touchscreen
Data Terminal : USB (Import) / RS-232C (Export) / LAN (Export)
Dimensions (W×D×H) : ~317–341 mm × 521–538 mm × 447–477 mm
Weight : ~15 kg
Power Supply : 100–240 V AC, 50–60 Hz, 30–70 VA

highlights

Reliable Decision Support: Delivers consistent and accurate measurements essential for clinical diagnosis.
Space-Efficient Design: Compact footprint suitable for small or multiple examination rooms.
Intuitive Operation: Touchscreen plus joystick controls reduce training time and improve patient throughput.
Advanced Connectivity: Export data quickly via USB or LAN for integration with EMR systems.
Reduced Operator Fatigue: Ergonomic design enhances ease of use during repetitive measurements.

in the box

Main Topcon KR-800 Auto Kerato-Refractometer unit
Power cord/adapter
Patient chinrest and forehead support assembly
USB/LAN interface cables
Operating manual and calibration documentation
(Optional) Built-in or external printer roll
Quick start guide

Use Cases :

Routine Eye Exams: Quickly assess refractive errors (myopia, hyperopia, astigmatism) in general optometric or ophthalmic practice.
Pre-Prescription Screening: Provides baseline objective refraction data before subjective refraction tests.
Contact Lens Fitting: Helps evaluate corneal curvature to assist in lens selection.
Post-Surgical Assessment: Used to monitor corneal and refractive changes after cataract or refractive surgery.
High-Volume Clinics: Efficient testing and fast capture ideal for busy eye care facilities.

Key Features :

Rotary Prism Technology: Provides accurate, stable refractive and keratometric measurements by measuring a wider retinal area even through small pupils (Ø 2 mm).
8.5-inch Color Touchscreen: Large touchscreen panel allows easy access to functions, clear data display, and efficient operation.
Compact & Ergonomic Design: Space-saving footprint and lightweight construction contribute to smooth joystick control and improved workflow.
Data Connectivity: Supports USB and LAN export for seamless data transfer to EMR systems.
Built-In Printer (Optional/Model Dependent): Some versions offer easy-load printing of measurement results for patient records.
Precise Objective Measurements: Measures spherical, cylindrical power, axial angles, and pupillary distance accurately.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Topcon KR-800 Auto Kerato-Refractometer is a compact, user-friendly ophthalmic instrument that combines objective autorefraction and keratometry to measure the refractive error and corneal curvature of the eye. It uses Topcon’s proprietary Rotary Prism technology for reliable and precise measure...
