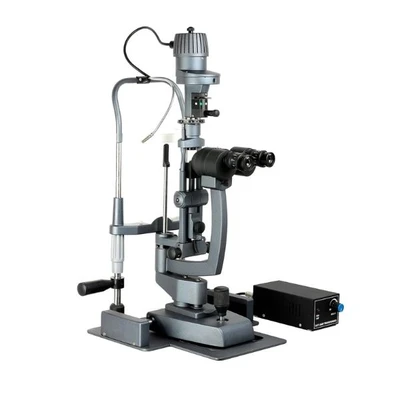

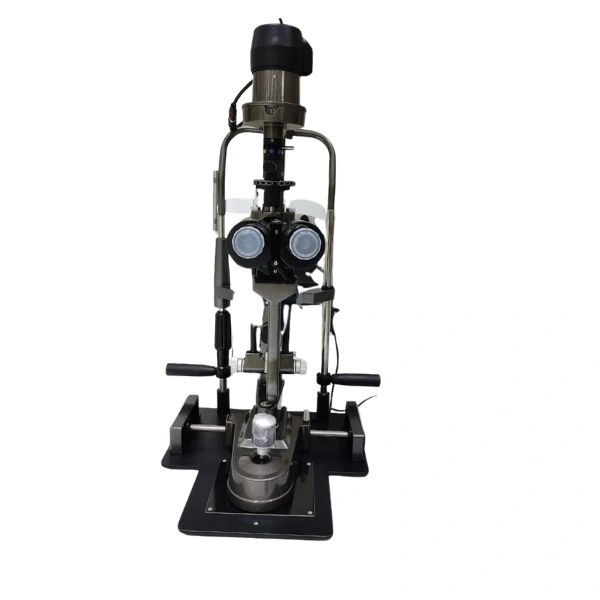

Unitech Vision Haag Striet Type Slit Lamp ( 2 Step )

New

₹34,000₹50,00032% off

Specifications

Brand / Model : Unitech Vision Haag Streit Type Slit Lamp
Optical System : Binocular stereoscopic microscope
Magnification Levels : Typically 10×, 16×, 24× (varies by model)
Eyepiece Magnification : 10× (standard)
Objective Magnification : 1×, 1.6×
Total Magnification : 10×, 16×, 24×
Slit Image Rotation : 0° to 180° continuous
Illumination Source : Halogen 6 V/20 W or LED (model variant)
Filters Included : Cobalt Blue, Red-Free (Green), Yellow, Neutral Density, Open Aperture
Filter Wheel : Rotating disc with multiple filters
Slit Width/Length : Adjustable (depending on diaphragms)
Joystick Control : 3-axis precision movement
Patient Support : Adjustable chinrest and forehead bar
Base Movement : Longitudinal, lateral, vertical travel (joystick controlled)
Power Supply : AC 100–240 V, 50/60 Hz (varies by model)
Mounting Type : Table-top
Application : Ophthalmic anterior segment examination
Country of Origin : India

highlights

Optical clarity and stereopsis provided by Haag-Streit style optics
Versatile illumination and filter options for enhanced diagnostics
Reliable build quality and smooth mechanical adjustments
Comfortable patient positioning with adjustable chin and head support
Compatible with accessories such as applanation tonometer adapters or camera modules (optional)

in the box

Haag Streit Slit Lamp (Haag Streit type slit lamp unit)
Earthing/Power cable
Chinrest & forehead support assembly
Illumination lamp (halogen/LED) standard
Dust cover
User manual & warranty documents

Use Cases :

Anterior segment examination (cornea, iris, lens)
Diagnosis of ocular surface disorders such as dry eye, conjunctivitis, and corneal abrasions
Evaluation of cataracts and lens opacities
Assessment of glaucoma and anterior chamber depth
Contact lens fitting evaluation
Routine vision screenings and clinical checkups

Key Features :

Haag-Streit style binocular microscope for clear 3D visualization
Multiple magnification levels (e.g., 10×, 16×, 24×) depending on model configuration
Adjustable slit illumination (rotation 0° – 180°) for versatile examination angles
Halogen or LED illumination source for bright, even lighting
Filter wheel (e.g., cobalt blue, red-free/green, yellow, neutral density, open aperture) for enhanced tissue contrast
Smooth mechanical joystick control for precise positioning
Adjustable chin rest and forehead support for patient comfort

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Unitech Vision Haag Streit Type Slit Lamp is a binocular ophthalmic biomicroscope designed to provide high-resolution, stereoscopic views of the eye’s anterior structures — including the cornea, conjunctiva, iris, lens, and anterior chamber. Built on the Haag-Streit optical configuration, this s...
