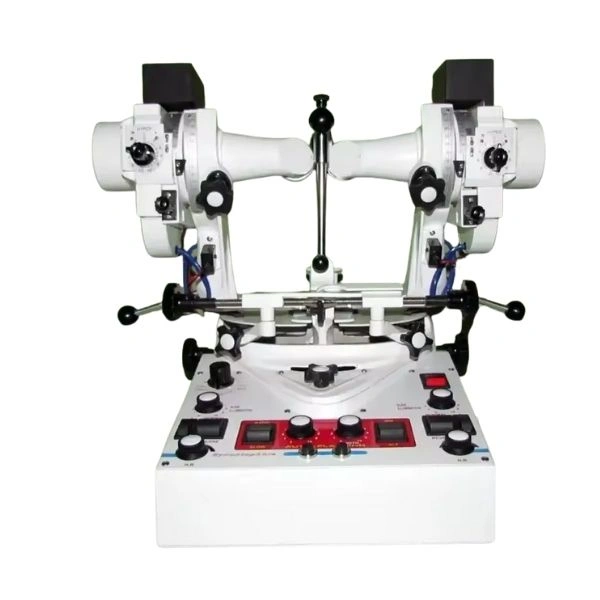

Unitech Vision Synoptophore Ophthalmic Machine

New

₹48,599₹75,00035% off

Specifications

Device Type : Binocular Vision Testing & Therapy Instrument
Function : Strabismus assessment, binocular vision testing & orthoptic therapy
Optical : Magnification ~1.65× (typical)
Diameter of Visual Field : ≥ 56 mm
Horizontal Movement Converge : ~+50°, Diverge ~−40°
Vertical Movement : ±30°
Torsional Adjustment : ±20° (optional)
Pupil Distance Adjustment : ~45–75 mm
Illumination : LED or Halogen illumination system
Flashing/Coruscation : Manual and Automatic (≈30–300/min)
Test Modes : Simultaneous, alternate, fusion, stereopsis tests
Power Supply : AC 220–240 V, 50/60 Hz
Weight : ~60–70 kg (unit + stand; varies by model)
Test Slides : Includes sets for various binocular tests
Mount : Adjustable chinrest & head support

highlights

Precise binocular vision measurement
Supports both diagnostic and therapeutic applications
Adjustable optical system for horizontal, vertical, and torsional alignment
Multiple illumination modes for comprehensive testing
Enhances treatment planning for strabismus & amblyopia
Useful in clinical, hospital, and ophthalmic practice settings

in the box

Synoptophore Main Unit
Pair of Adjustable Eyepiece Optical Tubes
Power Cable & Adapter
Set of Test Slides (various binocular vision stimuli)
Chinrest & Forehead Rest
User Manual / Instruction Guide
Warranty Card

Use Cases :

Assessment of strabismus (squint) and measurement of ocular deviation angles
Binocular vision testing (fusion, stereopsis, sensory evaluation)
Orthoptic therapy for amblyopia and other binocular anomalies
Pre- and post-operative evaluation in eye alignment surgery
Vision training for improved eye coordination
Pediatric and adult ophthalmic clinics

Key Features :

Adjustable binocular optical arms with precise alignment controls
Measures angle of deviation (horizontal, vertical, torsional)
Simultaneous, alternate, and flashing illumination modes
Adjustable interpupillary distance
Tests for simultaneous perception, fusion, stereopsis
Haidinger brush and after-image tests for sensory evaluation
LED or halogen illumination with variable brightness
Manual and/or automatic coruscation (flash) modes
Stable mechanical design for repeated clinical use

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Synoptophore is an ophthalmic diagnostic and therapeutic instrument used primarily in orthoptic and binocular vision assessment and therapy. It enables clinicians to measure ocular deviation angles, assess binocular function, and treat conditions such as strabismus, amblyopia, diplopia, and othe...
