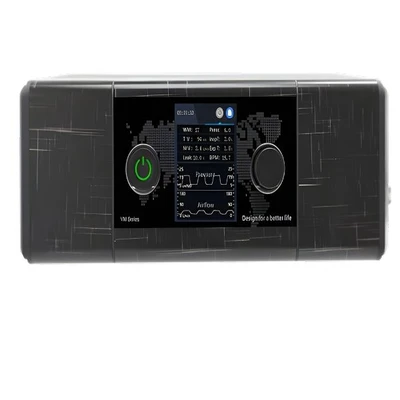

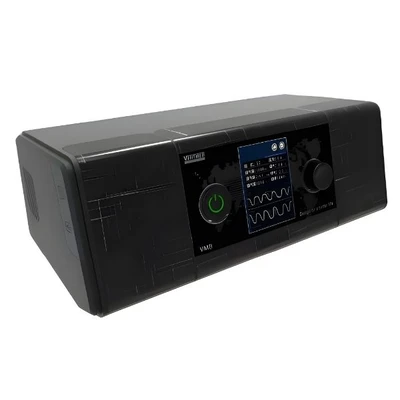

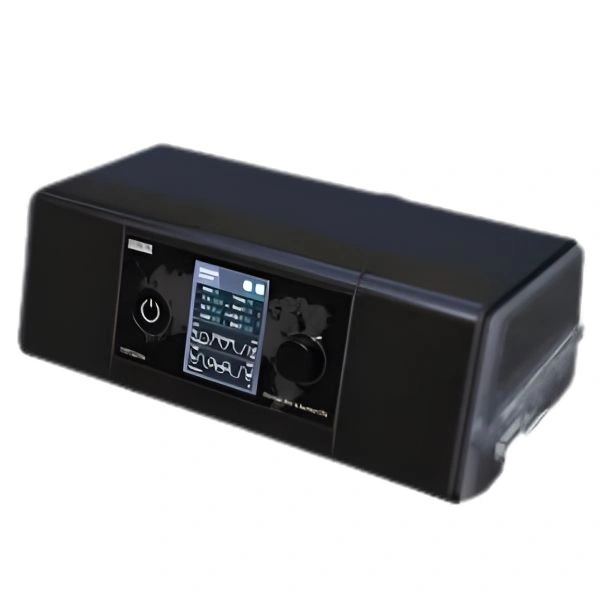

Ventmed VM8 Bipap Machine

New

₹27,500₹37,00026% off

Specifications

Modes : CPAP, Auto, S, T, ST, Auto S, APCV
Pressure Range : 4–30 cmH₂O
IPAP : 4–30 cmH₂O
EPAP : 4–20 cmH₂O
Backup Respiratory Rate : 5–50 BPM
Ramp Time : 0–60 minutes (adjustable)
EPR (Expiratory Pressure Relief) : 0–3 levels
Humidifier : Integrated heated (0–5 levels)
Leak Compensation : Yes
Auto Altitude Adjustment : Yes
Display : 2.8” TFT (320 × 240)
Data Storage : >5 years (TF/SD card support)
Power Supply : Input 100–240V, 50–60Hz; Output 24V, 2.5A
Over-temperature Protection : Auto shutdown with alarm
Alarms : Mask off, power failure
Dimensions : ~29 × 15 × 10 cm
Water Tank Capacity : ~200 mL
Noise level : <28 dB

highlights

Advanced multi-mode ventilation system for different patient needs
Fast response and intelligent breathing algorithm
Quiet and compact design for uninterrupted sleep
Integrated humidification for patient comfort
Long-term data storage (>5 years)
Suitable for both mild and severe respiratory conditions

in the box

VentMed VM8 BiPAP main unit
Integrated heated humidifier & water tank
Power adapter and cable
Air tubing
Filters
User manual
Carry bag
Mask (depends on kit configuration)

Use Cases :

Obstructive Sleep Apnea (OSA) treatment
Chronic Obstructive Pulmonary Disease (COPD) management
Respiratory insufficiency / hypoventilation syndromes
Home respiratory therapy
Hospital, sleep labs, and clinics (POCT/NIV support)

Key Features :

Multi-mode ventilation: CPAP, Auto, S, T, ST, Auto S, APCV
Wide pressure range: 4–30 cmH₂O (IPAP/EPAP adjustable)
Automatic breath synchronization based on patient demand
Integrated heated humidifier with adjustable levels
Low noise operation (<28 dB) for comfortable sleep
2.8-inch TFT color display with user-friendly interface
Auto ON/OFF and ramp function (0–60 min)
Leak compensation & altitude adjustment
Breath event detection & sleep monitoring

Warranty

No Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The VentMed VM8 BiPAP Machine is a non-invasive positive pressure ventilator (NIV) designed for treating respiratory disorders such as obstructive sleep apnea (OSA), COPD, and respiratory insufficiency. It delivers bi-level airway pressure (IPAP & EPAP) and supports multiple ventilation modes to mat...
