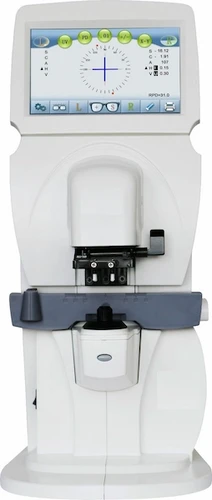

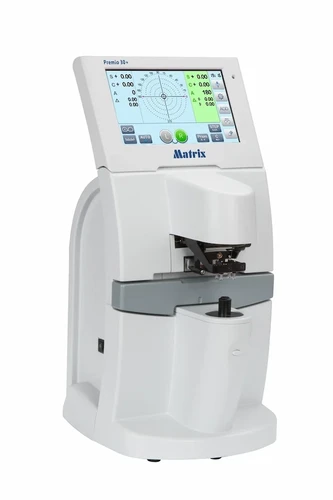

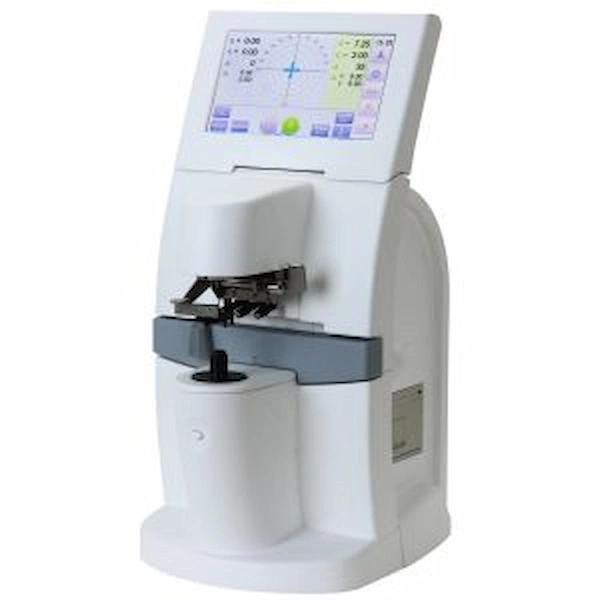

Matrix Premio 30+ Auto Lensmeter

New

₹72,000₹98,00027% off

Specifications

Model : Matrix Premio 30+ Auto Lensmeter
Measuring Technology : Green LED (≈545 nm) with Hartmann sensor
Sphere Range : ±25.00 D (steps 0.01 / 0.06 / 0.12 / 0.25 D)
Cylinder Range : ±10 D (modes +, −, mix)
Axis Range : 0–180° (1° step)
Addition (ADD) : 0 – +10 D (multiple step options)
Prism : 0 – 20Δ (multiple step options)
Lens Diameter : Approx. 20 – 120 mm (spectacle); contact ≥5 mm
PD Range : ~42–82 mm
Display : ~7″ Color TFT touch screen
Printer : Built-in 58 mm thermal printer
Power Supply : 100-240 VAC, 50-60 Hz
Net Weight ~5 kg
Environment Operating : 0–40 °C, ≤ 85 % humidity

highlights

High Accuracy: Uses multi-point Hartmann sensor data to improve measurement precision.
Fast Operation: Automatic measurement reduces workflow time and operator effort.
Rich Data Output: Displays and prints comprehensive lens data, including power, axis, ADD and PD.
User-Friendly Interface: Touchscreen control with intuitive menus reduces training time.
Versatile Lens Support: Handles a wide variety of lens types, including sunglasses and progressive lenses.

in the box

Main Matrix Premio 30+ Auto Lensmeter unit
Power cable (AC)
Thermal printer paper roll (sample)
Lens holders/adapter for contact lenses
User manual and quick setup guide
Calibration/adjustment tools (if provided)

Use Cases :

✔ Optical clinics and eye care centers for prescription verification and eyeglass checks.
✔ Eyewear retail stores to guide lens dispensing with accurate measurements.
✔ Lens laboratories for quality control and lens verification.
✔ Hospital ophthalmology departments as part of routine pre-examination checks.
✔ Mobile eye testing units that require portable, reliable lens measurement tools.

Key Features :

Advanced LED Measuring Technology: Uses green LED beam (~545 nm) with Hartmann sensor for fast, accurate measurements and better detection, even on complex lenses.
Wide Measurement Range: Capable of measuring a large range of lens powers (e.g., spherical ±25 D, cylinder ±10 D).
Multi-Lens Compatibility: Works with single vision, bifocal, multifocal, progressive lenses and contact lenses (with proper holders).
PD & Frame Measurements: Built-in pupillary distance measurement (approx. 42–82 mm) and frame length assessment.
Color Touch Screen: Typically features a 7″ color TFT touch display for easy operation and clear visualization of results.
Built-In Thermal Printer: Prints measurement results instantly on 58 mm thermal paper.
Automatic Lens Detection: Identifies lens type automatically and adjusts measuring mode accordingly.
Interfaces: RS-232, USB and sometimes Ethernet connectivity for data transfer or integration with practice systems.

Warranty

No Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Matrix Premio 30+ Auto Lensmeter is an automatic digital lensmeter designed for accurate, fast and reliable measurement of ophthalmic lenses. It uses advanced green LED measuring technology with a Hartmann sensor for precise readings of spherical power, cylindrical power, axis, prism, ADD values...
