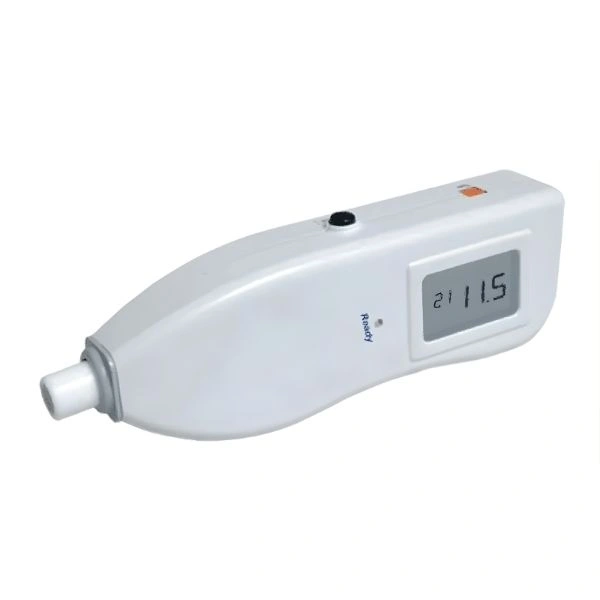

VNG JD-20 Transcutaneous Jaundice Detector

Shipping time and rates

Shipping about 5-7 days
7-day replacement
Manufacturer warranty
Fast shipping
100% authentic

VNG JD-20 Transcutaneous Jaundice Detector

New
0.0
₹1,01,000₹175,99943% off

Quantity :

1

Specifications

  • Measurement Range : 0.0 – 32.0 mg/dL
  • Accuracy : ±1.5 mg/dL (±25.5 µmol/L)
  • Repeatability : <10%
  • Measurement Time : < 5–12 seconds
  • Display : LCD (3-digit)
  • Indicator : Ready indicator (Green)
  • Data Storage : Up to 21 records
  • Power Supply : 2 × AA 1.5V batteries
  • Dimensions : 176 × 59 × 35.5 mm
  • Weight : ~215 g (with batteries)
  • Temperature : 10°C – 40°C
  • Humidity : ≤80% RH
  • Optical system : Fiber optics, spectrum splitter, filters
  • Measurement Method : Transcutaneous photometric detection

highlights

  • Completely pain-free testing for newborns
  • Instant results improve clinical workflow efficiency
  • Helps reduce lab costs and workload
  • Portable and easy-to-use for bedside diagnosis
  • Improves patient safety and comfort
  • Reliable correlation with serum bilirubin values

in the box

  • Instruction Manual
  • Calibrator (optional)
  • Quality Certificate
  • Warranty Card
  • AA 1.5V Batteries (2 units)
  • JD-20 Main Device

Use Cases :

  • Neonatal jaundice screening in hospitals and clinics
  • Dynamic monitoring of bilirubin levels during treatment
  • Early detection of hyperbilirubinemia
  • Use in NICU, pediatric, and maternity wards
  • Reducing dependency on invasive serum bilirubin testing

Key Features :

  • Non-invasive bilirubin measurement (no blood sample required)
  • Instant, accurate, and safe test results
  • LCD display for easy reading
  • Handheld, lightweight, and ergonomic design
  • Storage & memory function for previous readings
  • Mean value computation (average readings)
  • Battery indicator with low-power alert
  • Self-calibration capability
  • Browse and delete stored data
  • Long service life and low energy consumption

Warranty

Product Description

The JD-20 Transcutaneous Jaundice Detector by VNG Medical Innovation System Pvt. Ltd. is a non-invasive, handheld bilirubinometer designed for neonatal jaundice screening and monitoring. It measures the transcutaneous bilirubin concentration by placing the probe on the newborn’s skin, providing resu...
