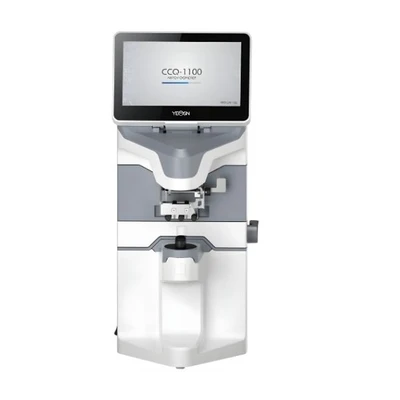

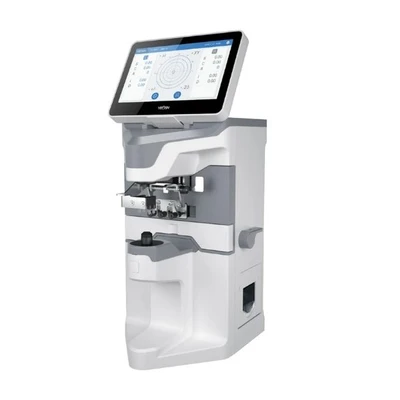

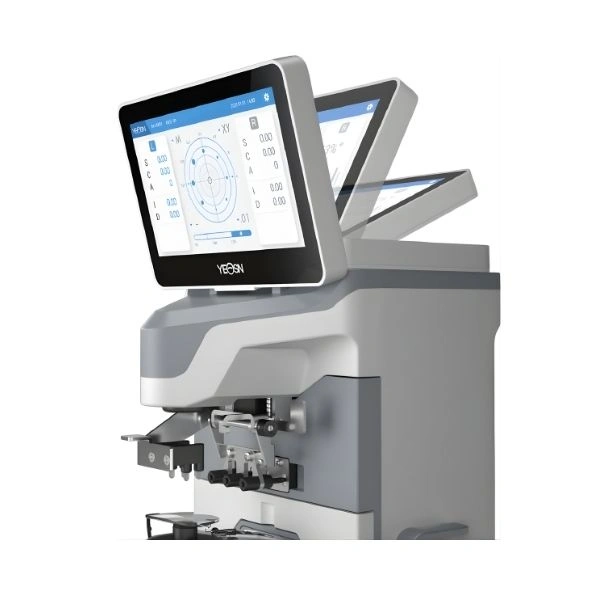

Yeasn CCQ-1100 Automatic Lensometer

New

Specifications

Model : CCQ-1100 Auto Lensometer
Measurement System : Hartmann multi-point measurement with 165 sampling points
Sphere Range : –25D to +25D (0.01/0.06/0.12/0.25 steps)
Cylinder Range : –9.99D to +9.99D (same step increments)
Axis Range : 0° – 180° (1° step)
Prism Range : 0 Δ – 20 Δ (0.01 Δ step)
Add Power : 0 – +9.99D
Contact Lens Range : –20D to +20D
Blue Light Transmittance : 0–100% (1% steps)
UV Transmittance : 0–100% (1% steps)
Display : 7″ HD color touchscreen (1024×600)
Printer : Built-in thermal printer (paper width approx. 57 mm)
Interface : RS-232, USB
Dimensions : ~200 × 211 × 339 mm
Weight : ~4.1 kg
Power Supply : AC 100–240 V, 50/60 Hz

highlights

AI-Driven Lens Analysis: Makes progressive lens measurements effortless and fast.
Comprehensive Protection Metrics: Displays both UV and blue light transmission results graphically.
Robust & Durable Design: Sealed optical pathway and ergonomic body for long-term reliable performance.
Easy Operation: Intuitive touchscreen, on-screen guidance, and quick result printing.

in the box

Yeasn CCQ-1100 Automatic Lensometer Unit
Built-in Thermal Printer (with starter paper roll)
Power Adapter & Cables
User Manual / Quick Start Guide
Optional Warranty Card

Use Cases :

Optical Retail Stores – Quick prescription verification during customer consultations.
Eye Clinics and Hospitals – Fast measurement during eye examinations and spectacle fittings.
Optical Laboratories – Benchmarking finished lenses before shipment or quality control.
Training & Education – Demonstrating real-world lens characteristics and measurement techniques to students and trainees.
Specialty Lens Evaluation – Measuring protective qualities like blue-light and UV filtration for specific lens types.

Key Features :

Advanced Hartmann Measurement System – Uses 165 data sampling points for accurate lens power and prism readings.
AI-Assisted Progressive Lens Measurement – Neural-network algorithm to simplify and speed up complex lens analysis.
Blue Light & UV Protection Measurement – Quantifies the lens’s protective ability against harmful blue and ultraviolet light.
Automatic Lens Recognition – Detects and switches measurement mode for single-vision, multifocal, and progressive lenses.
Large 7″ HD Touchscreen – Clear and intuitive interface for simple operation and data display.
Rapid & Stable Data Processing – Dual-core processor with ultra-high-definition imaging system for fast and reliable results.
Built-In Thermal Printer – Instantly print measurement results directly from the device.
Supports Low-Transmittance Lens Measurement – Capable of handling lenses with minimal light transmission.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Yeasn CCQ-1100 Automatic Lensometer is a professional-grade optical measuring instrument designed for precise and automated measurement of eyeglass lenses. Leveraging advanced technologies such as a Hartmann multi-point measurement system and AI-powered progressive lens analysis, it rapidly and ...
