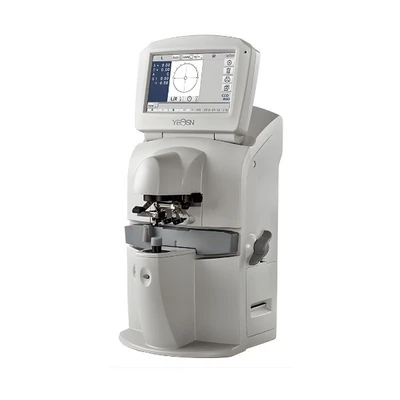

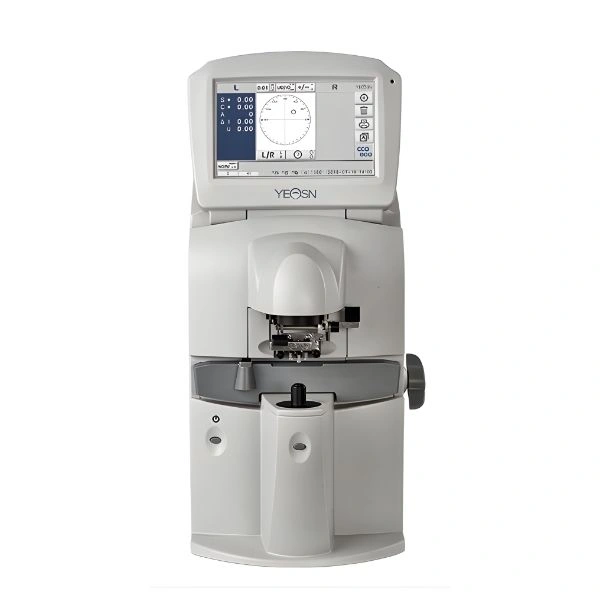

Yeasn CCQ-800 Automatic Lensometer

New

Specifications

Model : CCQ-800
Measurement Range : Sphere: –25.00 D to +25.00 D (steps 0.01/0.06/0.12/0.25), Cylinder: –9.99 D to +9.99 D (same steps)
Add Power Range : –9.99 D to +9.99 D
Contact Lens : –20.00 D to +20.00 D
Axis : 0° – 180° (1° step)
Prism Power : 0 – 20 Δ (0.01Δ step)
Lens Diameter : Ø10 mm – Ø100 mm
Center Thickness : ≤ 20 mm
PD Range : 40 mm – 82 mm
UV Transmittance : Qualitative measurement supported
Display : 7″ TFT HD colour touch screen
Printer : Built-in thermal printer
Dimensions (approx) : 235 × 246 × 487 mm
Weight (approx) : ~5.45 kg
Power Supply : Input AC 110-240 V, 50/60 Hz

highlights

Fast measurement speed (typically in under 50 ms).
Measurement of contact lenses and high-index lenses without extra settings.
Checks prism and distortion conditions.
Built for ease of use — minimal training required.

in the box

Yeasn CCQ-800 Auto Lensmeter unit
Built-in thermal printer
Printer paper
Digital user manual
Power adapter and cables

Use Cases :

Optical shops and labs — for rapid lens verification and prescription confirmation.
Eye clinics — to assist in routine eye examinations and lens checks.
Quality control departments — verifying finished spectacle lenses before delivery.
Training & educational use — demonstrating lens characteristics to students.

Key Features :

Automatic Lens Identification: Detects and differentiates single-vision and progressive lenses automatically.
Green LED Light Source: Provides accurate and stable illumination for precise measurements.
Hartmann Measurement Method: High-accuracy optical system for quality data capture.
Multi-Point Optical System: Ensures reliable data from various lens types.
Large Touch Display: 7″ industrial HD touch screen for easy operation and results display.
Built-In Thermal Printer: Instant printout of measurements.
Supports Multiple Measurements: Can measure PD (pupil distance), PH, UV transmittance and prism values.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Yeasn CCQ-800 Automatic Lensometer is an advanced optical instrument designed to accurately measure prescription lenses quickly and reliably. With an automatic measurement system, it identifies lens type and displays detailed prescription data (sphere, cylinder, axis, PD, PH, UV, etc.) without m...
