Shipping time and rates
Shipping about 5-7 days

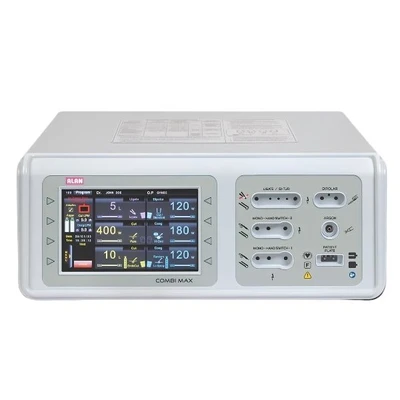

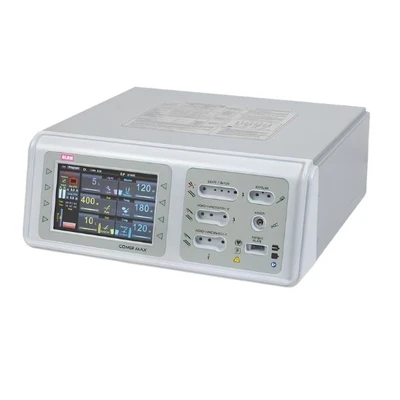

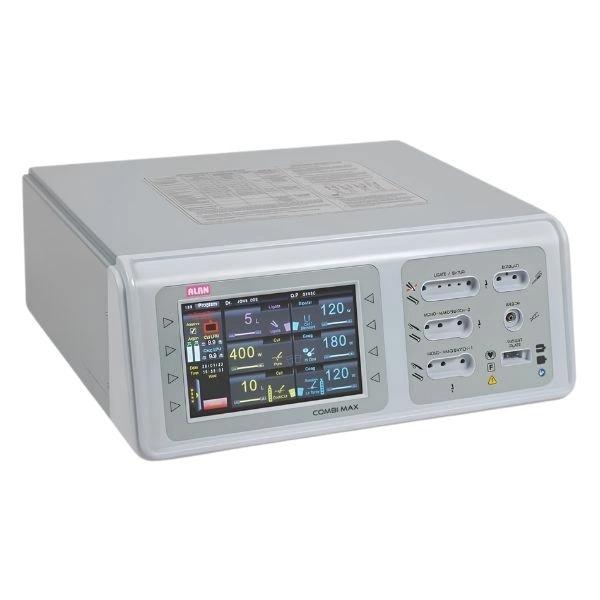

Alan Combi MAax Series ElectroSurgical Unit
New0.0|0 Ratings
Quantity :
1
Specifications
- Product Type : ElectroSurgical Unit
- Brand : ALAN
- Series : Combi Max
- Maximum Output Power : 400 W
- Display : 7" Colour TFT LCD Touchscreen
- Input Voltage : 88–265 VAC
- Frequency : 50/60 Hz
- Power Consumption : 750 VA Max
- Protection Class : Class I
- Medical Device Class : Class IIb
- Input Fuse : 5A T
- Operating Temperature : +10°C to +40°C
- Operating Humidity : 30–75% Non-condensing
- Storage Temperature : -30°C to +65°C
- Storage Humidity : 0–90% Non-condensing
- Weight : Max 8 kg
- Argon : Inlet Pressure 2.5–4.5 bar
- Max Argon Cylinders : 2
highlights
- All-in-one modular ESU platform
- Advanced real-time tissue impedance monitoring
- Precise power delivery using multiple microcontrollers
- Supports Argon-based and saline plasma procedures
- High safety standards compliant with IEC 60601
- Graphical contact-quality monitoring
- Built-in surge and leakage protection
- Designed for multispecialty OT usage
in the box
- Combi Max ElectroSurgical Unit Main Console
- Power Cord
- Patient Plate / Return Electrode
- Hand Switch Pencil
- Foot Switch (model dependent)
- User Manual / Documentation
Use Cases :
- General Surgery
- Laparoscopy & Pelviscopy
- Gynecology
- Thoracic Surgery
- Liver Surgery
- Gastroenterology
- Cardiac Surgery
- Plastic & Reconstructive Surgery
- TURP / TUVP / TUEB / TCRE
- Underwater Surgery
Key Features :
- Maximum Output Power: 400 Watts
- 7-inch wide-angle LCD touchscreen display
- 199 programmable user memory profiles
- Seals vessels up to 7 mm diameter
- 7 ligation levels for different vessel thickness
- ScalCut mode for plasma dissector applications
- EndoCut mode with 10 adjustable levels
- Auto Start / Auto Stop in Bipolar mode
- Compatible with single, double, and three-pedal footswitches
- Audio-visual operation indicators
- PPCM (Patient Plate Contact Monitoring) safety system
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The ALAN Combi Max Series ElectroSurgical Unit (ESU) is a premium microcontroller-based electrosurgical generator designed for precise tissue cutting, coagulation, vessel sealing, bipolar saline resection (Bi-TUR), and argon plasma coagulation. It supports multiple surgical specialties and both open...
