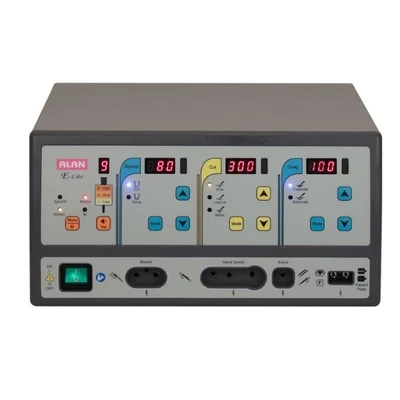

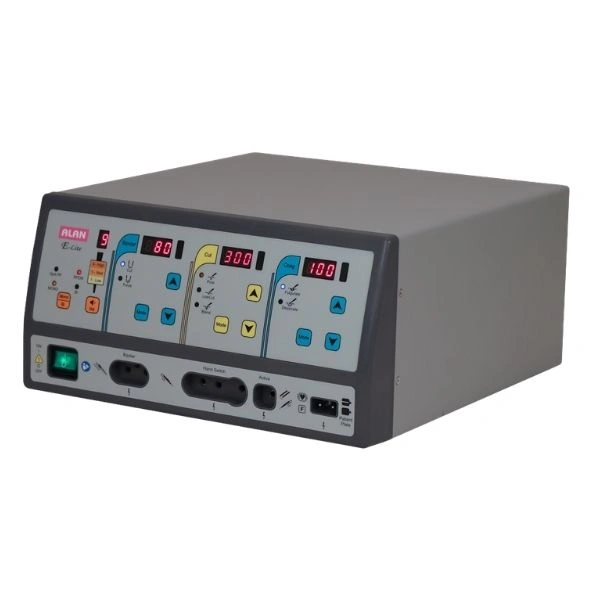

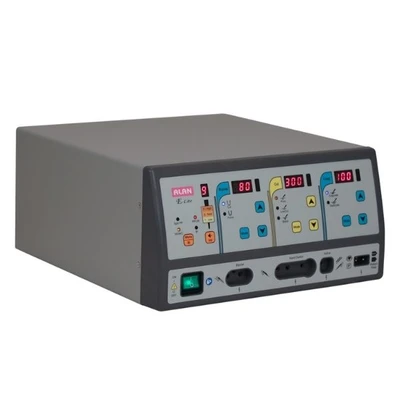

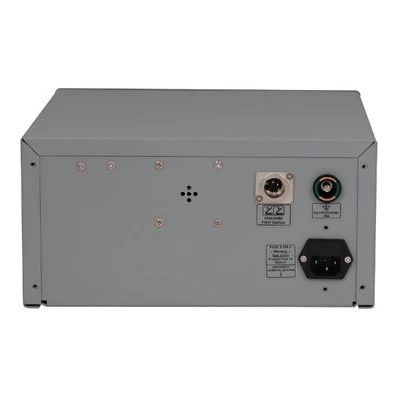

Alan E-Lite ElectroSurgical Unit

New

0.0|0 Ratings

Quantity :

Specifications

Brand : ALAN
Model : E-Lite
Equipment Type : Electrosurgical / Cautery Unit
Maximum Output Power : 300 W
Monopolar Cut Modes : Pure, Low Cut, Blend
Monopolar Coag Modes : Fulgurate, Desiccate
Bipolar Modes : Cut/Standard, Force/Macro
Output Frequency : 660 kHz
Input Supply : 230 VAC ±20%, 50 Hz
Power Consumption : 500 VA Max
Loading Duty Factor : 10 sec active / 30 sec pause
Protection Class : Class I
Applied Part Type : CF
Output Type : Floating Output
Dimensions : 310 × 150 × 280 mm
Weight : 3.2 kg
Safety Standard : IEC 60601-1, IEC 60601-1-2, IEC 60601-2-2

highlights

Compact, space-saving design
Stable high-frequency energy output
Fast response to tissue impedance changes
Simultaneous coagulation for two surgeons
Low maintenance with convection cooling
No external voltage stabilizer required
Built-in surge and leakage protection
Designed and manufactured in India

in the box

Alan E-Lite Electrosurgical Unit (Main Console)
Power Cord
Hand Switch Pencil
Foot Switch (3-Pedal compatible)
Patient Plate / Return Electrode
User Manual
Standard Accessories / Connecting Cables

Use Cases :

General Surgery
Laparoscopic Surgery
Endoscopic Procedures
Gynecology
Urology (including TURP)
Underwater Surgery
Neurosurgery / Spine Surgery
Minor and Major Surgical Procedures requiring cutting/coagulation

Key Features :

Maximum output power: 300 W
Monopolar & Bipolar operation
Multiple cut modes: Pure, Low Cut, Blend
Multiple coagulation modes: Fulgurate, Desiccate
Patient Plate Contact Monitoring (PPCM) for burn prevention
Real-time tissue impedance monitoring
Digital display with push-button controls
Audio-visual activation indicators
3-pedal waterproof / explosion-proof footswitch compatibility
Automatic self-test during startup
Compatible with Generator / UPS / Inverter
Floating RF output for enhanced safety

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Alan E-Lite ElectroSurgical Unit is a microcontroller-based digital electrosurgical cautery system designed for precise cutting and coagulation during surgical procedures. It supports both monopolar and bipolar modes, enabling surgeons to perform a wide range of operations with controlled tissue...
