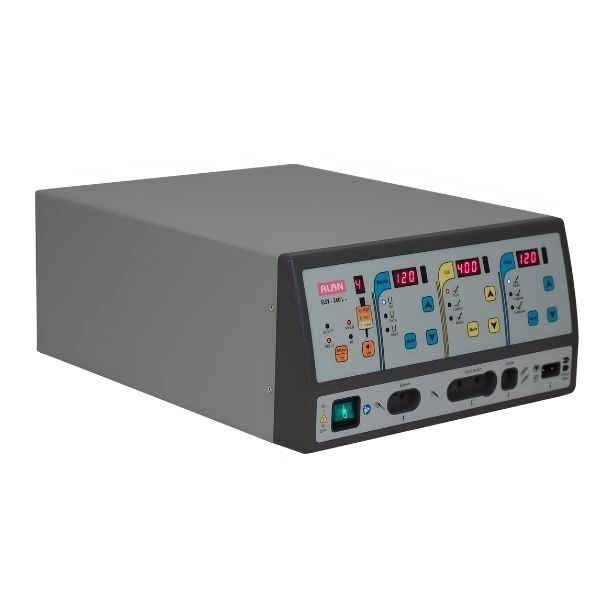

Alan Elsy-360 L+ Electrosurgical Unit
New0.0|0 Ratings
Quantity :
1
Specifications
- Product Type : Electrosurgical Unit / Diathermy
- Model : Elsy-360 L+
- Brand : ALAN
- Technology : Radio Frequency / High Frequency
- Maximum Output Power : 400 W
- Cutting Power : 400 W
- Coagulation Power : 150 W
- Frequency : 550–660 kHz
- Input Voltage : 230 VAC ±20%, 50 Hz
- Power Consumption : 500–750 VA Max
- Output Modes : Monopolar & Bipolar
- Output Control : Digital Display + Push Buttons
- Cooling Convection : Cooling
- Protection Class : Class I
- Unit Type : CF (Cardiac Floating)
- Dimensions : 285 × 150 × 350 mm
- Weight : Approx. 3.2–4.5 kg
- Duty Cycle : 10 sec Active / 30 sec Pause
highlights
- Advanced microcontroller-based RF power control
- Instant power adjustment based on tissue density
- Simultaneous coagulation for two surgeons
- Reduced smoke generation with Low Cut mode
- Safe operation with floating CF-type output
- Built-in surge protection and line filter
- Portable compact design
- High accuracy with minimal RF distortion
- Designed for long service life with enhanced cooling system
in the box
- ALAN Elsy-360 L+ Main Unit
- Power Cable
- Patient Plate / Return Electrode
- Hand Switch Pencil
- Foot Switch (3 Pedal compatible)
- Bipolar Forceps Cable
- User Manual / Documentation
Use Cases :
- General Surgery
- Laparoscopic Surgery
- Gynecology
- Urology / TURP
- Plastic & Reconstructive Surgery
- Cardiac Surgery
- Orthopedic Surgery
- Underwater Surgery
- Neuro Surgery
- Minimally Invasive Procedures
Key Features :
- Maximum Output Power: 400 W
- Supports Monopolar & Bipolar modes
- 3 Monopolar Cut Modes: Pure, Low Cut, Blend
- 3 Monopolar Coag Modes: Desiccate, Fulgurate, Spray
- 3 Bipolar Modes: Standard, Force, Micro
- Real-time tissue impedance monitoring
- Patient Plate Contact Quality Monitoring (PPCM)
- HF leakage monitoring system
- Digital display with push-button controls
- Handswitch & footswitch activation
- Audio-visual alarms and indicators
- Convection cooling system
- Compatible with Generator / Inverter / UPS
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The ALAN Elsy-360 L+ is a microcontroller-based digital electrosurgical unit designed for precise tissue cutting and coagulation during surgical procedures. It supports both monopolar and bipolar electrosurgery, enabling surgeons to perform cutting, coagulation, desiccation, and fulguration with con...
