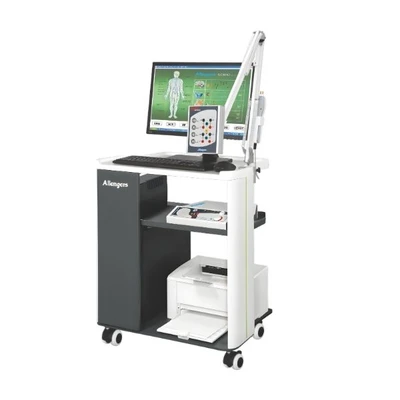

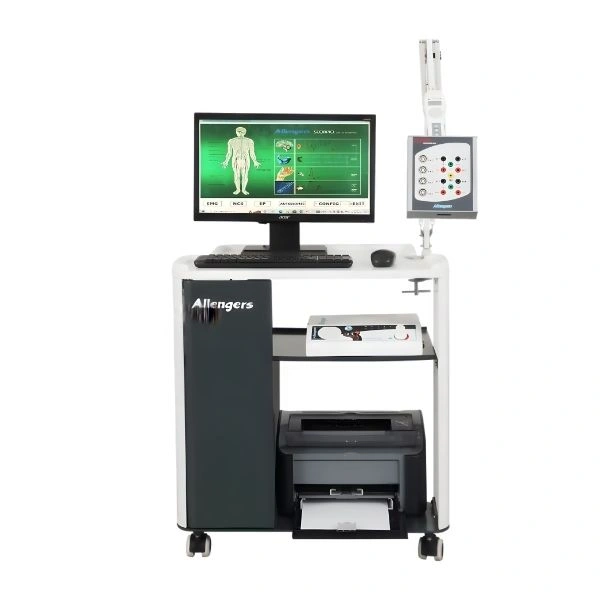

Allenger Scorpio 2-Channel EMG Machine

New

₹2,35,000₹320,00027% off

Specifications

Product Name : Allengers Scorpio 2-Channel EMG Machine
Type : Digital PC-based EMG/NCS/EP System
Acquisition : Channels 2 (simultaneous)
Test Modes Supported : EMG, NCS, Evoked Potentials (EP), Autonomic studies
Sensitivity Range : Adjustable across multiple μV/div level
Filters : Selectable high pass & low pass filters
Sweep Speeds (EMG) : Multiple steps (e.g., 2 – 500 ms/div)
Sweep Speeds (NCS/EP) : 1 – 1000 ms/div (selectable)
Signal Isolation : Optical isolation for patient safety
Data Storage : EMG data review, replay and export
PC Interface : USB (Windows compatible)
Stimulator Type : Integrated shock stimulator (adjustable)
Audio Output : Playback and speaker output support
Software Features : Protocol customization, export to MATLAB/LAB/DICOM
Power Supply : AC mains + PC interface

highlights

Broad Test Support: Combines EMG, NCS, EP and autonomic modalities in a single system.
Audio & Replay Capability: EMG signals can be reviewed with audio for deeper clinical insight.
Customizable Protocols: User-definable markers, sweep speeds, sensitivities and stimulation protocols.
Robust Software Integration: Compatible with data analysis and export to external software tools.

in the box

EMG Machine main unit (2-Channel Scorpio)
Shock stimulator with control interface
Electrode leads and sensors (surface and/or needle)
NCS/EP accessory electrodes (e.g., headphones, VEP goggles)**
Power supply and cables
USB interface cable
User manual and documentation
Software installation media
Warranty/support documentation

Use Cases :

Neurology Departments: Diagnostic evaluation of conditions such as neuropathies, myopathies, radiculopathies and neuromuscular junction disorders.
Hospitals & Diagnostic Centres: Routine nerve conduction and EMG/EP testing across adult and paediatric populations.
Rehabilitation Clinics: Monitoring neuromuscular recovery and therapy progress.
Academic & Research Facilities: Teaching and research in electrophysiology and physiologic signal analysis.

Key Features :

2-Channel EMG Acquisition: Simultaneous bilateral electromyography recording with real-time display.
Multimodal Diagnostics: Performs EMG, EP, NCS, and autonomic studies (over 15 protocols).
Shock Stimulator Controls: On-unit adjustment for current, start/stop, save, live averaging and display of stimulation current.
Patient Safety Isolation: Optical isolation of the acquisition module enhances patient safety.
Adjustable Sensitivity & Sweep Speed: Can be modified even after data acquisition.
Large EMG Data Storage: Stored data can be reviewed, replayed (audio), and exported.
Windows Compatibility: Software works on standard Microsoft Windows platforms.
Export & Analysis Tools: Results can be saved in formats usable by MATLAB, LabVIEW or DICOM/PACS systems.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Allengers Scorpio 2-Channel EMG Machine is a high-performance electromyograph (EMG) and neurodiagnostic system developed by Allengers Global Healthcare. It leverages modern digital signal processing and PC-based software to record, analyze, and display electrical activity from muscles and periph...
