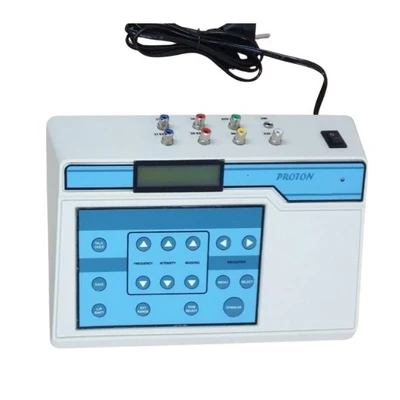

Arphi Proton DX3 Portable Digital Audiometer

Shipping time and rates

Shipping about 5-7 days
7-day replacement
Manufacturer warranty
Fast shipping
100% authentic

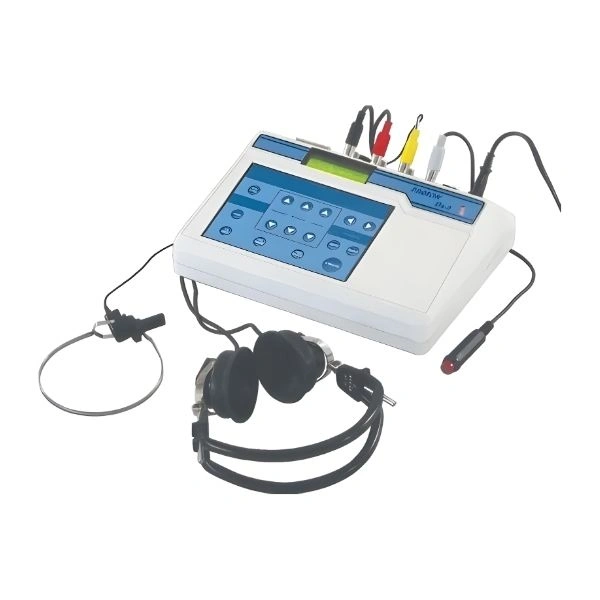

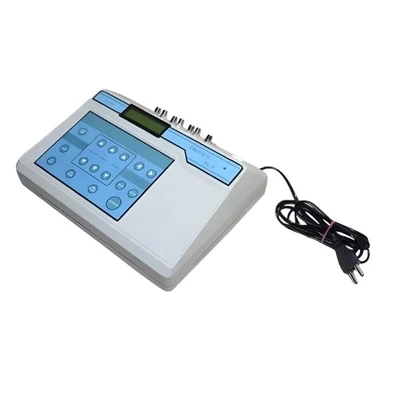

Arphi Proton DX3 Portable Digital Audiometer

New
0.0

Quantity :

1

Specifications

  • Test Types : Air Conduction, Bone Conduction, Tone Decay, Speech Audiometry
  • Frequency Range : 250 Hz – 8000 Hz
  • Hearing Level Range (Air) : Up to 120 dB HL (500–6000 Hz)
  • Attenuator Range : –10 dB to 120 dB (click-free)
  • Masking : Wide Band Noise
  • Display : LED/LCD with backlight (≈155×16 mm)
  • Output Channels : Left, Right, Bone L+R, Free Field
  • Weight : Approx. 1.7 kg
  • Power : AC mains (100–240 V, 50/60 Hz)
  • Masking Input : Microphone / Tape/CD

highlights

  • Medical-grade accuracy with clinical-standard test protocols.
  • Ergonomic, compact build suited for daily clinical use.
  • Clear visual feedback via LED/LCD helps clinicians interpret results quickly.
  • Flexible testing — works for adults and children with straightforward controls.

in the box

  • Arphi Proton DX3 Portable Digital Audiometer unit
  • Bone conduction transducer with headband
  • Patient response hand switch
  • Headphones for air conduction testing
  • Dust cover / protective cover
  • User manual / documentation
  • Carrying case (optional)
  • Cables & accessories (USB or power cables)

Use Cases :

  • Routine hearing screening in hospitals and clinics.
  • ENT specialists & audiologists performing diagnostic evaluations.
  • Community & mobile hearing screening camps due to its portability.
  • Hearing aid centers to assess hearing thresholds before and after fitting.
  • Occupational health programs for workplace hearing monitoring.

Clinical Benefits

  • Reliable Hearing Threshold Assessment: The specified frequency accuracy of better than ±2% and total harmonic distortion below 1% support consistent audiometric measurements.
  • Improved Masking Control: Ipsilateral masking and simultaneous stimulus and masking presentation help clinicians assess hearing thresholds when cross-hearing is a concern.
  • Multiple Testing Capabilities: Air conduction, bone conduction, free-field testing, tone decay and speech audiometry support a broad range of routine hearing assessments.
  • Convenient Patient Interaction: Click-free attenuation, talk-over functionality and a visible patient response indicator help make testing more straightforward.
  • Clear Communication During Testing: Built-in talk-over and microphone input support communication between the clinician and patient during hearing assessments.
  • Audiogram Documentation: The Proton SX 3 version supports digital record storage and review through its PC software. Printing options depend on the selected configuration and compatible equipment.

Why Choose the Arphi Proton DX 3 Audiometer?

  • Comprehensive Hearing Testing: Combines air conduction, bone conduction, free-field, tone decay and speech audiometry functions.
  • Simple Operation: The menu-driven interface and clear display support convenient daily use.
  • Comfortable Testing Experience: Click-free attenuation helps minimise distracting sounds during examinations.
  • Portable and Lightweight: Its compact design makes it suitable for clinics, hearing camps and other testing locations.
  • Flexible Masking Options: Independent channels and ipsilateral masking support different hearing assessment requirements.
  • Expandable Record Management: The Proton SX 3 version offers PC connectivity and software for storing, reviewing and printing audiograms.
  • Calibration Standards: The supplied specifications reference recognised IEC, ISO and ANSI standards for audiometric testing.

Key Features of the Arphi Proton DX 3 Audiometer

  • Fully Digital Design: Compact construction measuring approximately 275 × 200 × 80 mm and weighing around 1.7 kg.
  • Click-Free Attenuator: Provides smooth operation across the −10 to 120 dB range, with a Range Extender function.
  • Multiple Testing Options: Supports air conduction, bone conduction and free-field audiometry.
  • Two Independent Channels: Separate stimulus and masking channels support hearing threshold assessment.
  • Ipsilateral Masking: Supports masking during audiometric testing.
  • Binaural Presentation: Allows simultaneous presentation of stimulus and masking.
  • Tone Decay Testing: Includes a built-in tone decay test with pulse counter display.
  • Speech Audiometry: Supports speech testing through a microphone or tape/CD input.
  • Continuous and Pulsed Tones: Offers pulsed tones at a rate of 1.5 Hz.
  • Menu-Driven Display: Features a 2-row, 16-character LED-backlit transreflective LCD designed for clear viewing under different lighting conditions.
  • Talk-Over and Monitoring: Includes talk-over, adjustable monitoring and a bar-graph VU meter for stimulus level and input sensitivity.
  • Patient Response Indicator: Displays patient responses directly on the LCD.
  • Stored Calibration Data: Uses programmable non-volatile memory to retain calibration data.
  • Battery-Operated Option: Available with a built-in rechargeable, maintenance-free battery.

Warranty

Product Description

The Arphi Proton DX 3 audiometer is a compact, fully digital hearing testing device designed for ENT clinics, audiology centres and hospitals. It supports air conduction, bone conduction, free-field testing and speech audiometry, making it suitable for routine hearing assessments in clinical setting...

Other Details

Similar Products

Triveni Classic 1 Audiometer
₹42,900
₹70,00039% off
Buy Now
Labat Audiomini Digital Audiometer
₹45,000
₹70,00036% off
Buy Now

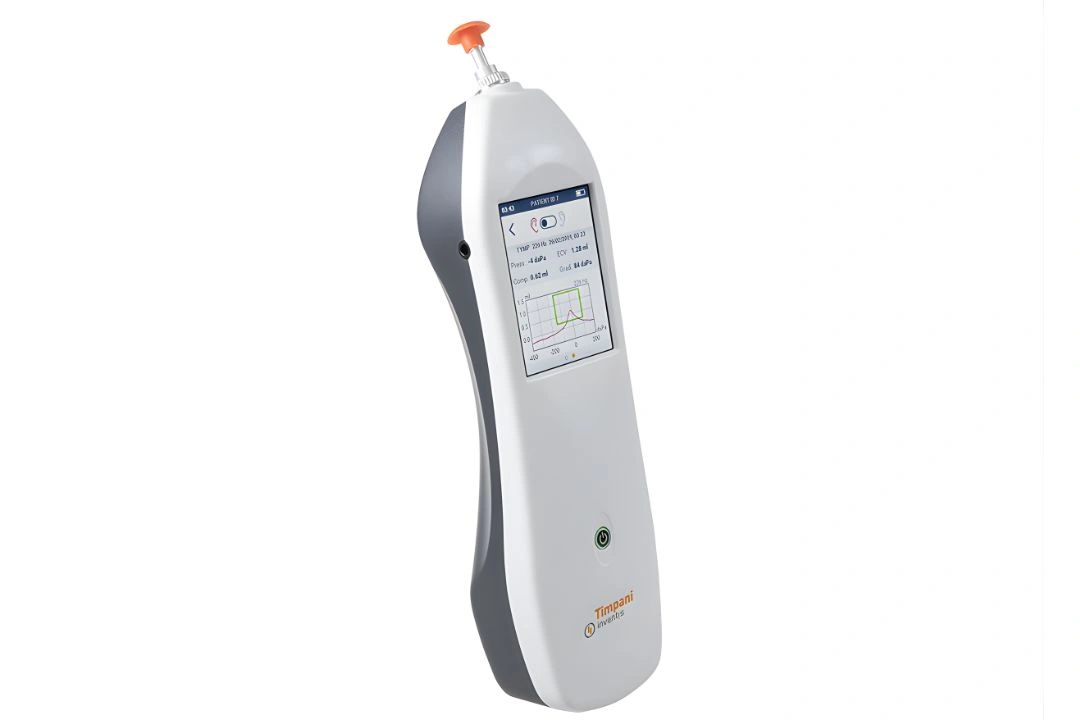

Inventis Timpani Handheld Tympanometer
₹1,75,000
₹2,75,00036% off
Buy Now

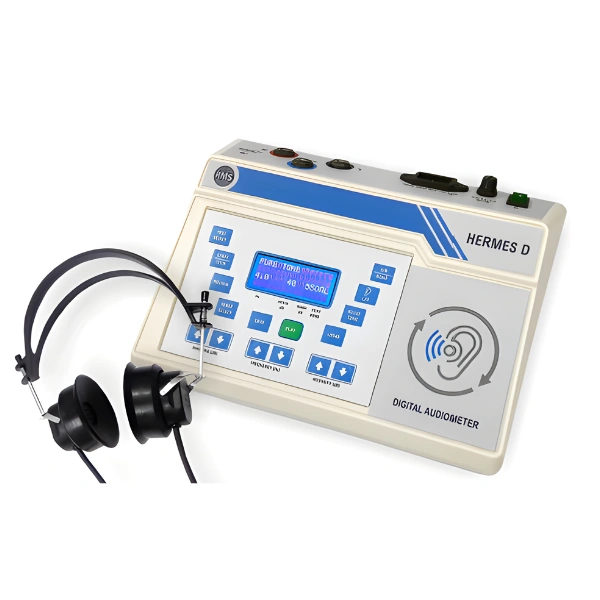

RMS Hermes-D Digital Audiometer - With Software
