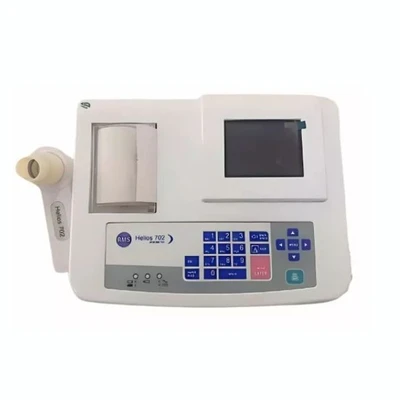

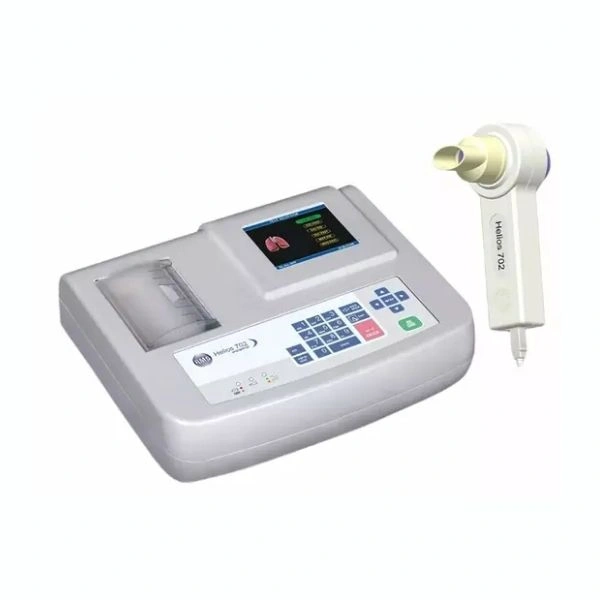

RMS Helios 702 Portable Spirometer (PFT)

New

₹66,670₹85,00022% off

Specifications

Product Name : RMS Helios 702 Portable Spirometer (PFT)
Brand : RMS
Model : Helios 702
Display : High-resolution colour graphic TFT (≈3.5″, 320 × 240)
Printer : Built-in thermal printer (80 mm)
Test Types : FVC, SVC, MVV with interpretation
Parameters Evaluated : 51+ respiratory parameters
Data Storage : Up to 2,500 patient records
Connectivity : USB for PC data transfer
Power Supply : Mains 220–240 V, 50 Hz ±10%; rechargeable battery (12 V, 1.2 Ah)
Charging Time : ~3 hours
Weight : Approx. 1.8 kg
Memory : SDHC card: 4 GB; RAM: 2 GB; HDD: 40 GB
Operating Requirements : (PC) Windows XP/7 (32-bit), Core2Duo or higher
Voltage Range : 220–240 V
Warranty : Typically 1 year (varies by seller)

highlights

Portable and lightweight design (~1.8 kg), ideal for on-site and clinic use.
Real-time graphical outputs for immediate interpretation.
COPD severity grading and enhanced respiratory analytics.
Comprehensive parameter evaluation with clinical interpretation software.
Battery + mains operation makes it versatile in areas with unstable power.

in the box

Handset (main spirometer unit)
Turbine transducer (digital, detachable)
Software CD
USB cable for PC connection
Reusable mouthpieces
Adult nose clip
Pediatric nose clip
Carry bag
User manual

Use Cases :

Clinical pulmonary function testing in hospitals, clinics, and diagnostic centers.
Respiratory disease diagnosis and monitoring, including asthma and COPD.
Pre- and post-bronchodilator evaluations to assess treatment effectiveness.
Routine health screenings and spirometry camps.
Home health assessments and mobile testing due to battery support and portability.
Lung age estimation and trend analysis for preventive care.

Key Features :

High-resolution colour graphic TFT display for clear visualization of spirometry curves and results.
Built-in thermal printer (80 mm) for immediate printing of test reports.
Internal memory storing up to 2,500 patient records.
Supports FVC, SVC, and MVV tests with interpretation.
Evaluates 51+ vital respiratory parameters with trend assessment and pre/post bronchodilator results.
Includes Indian predicted equations tailored for local patient populations.
Mains and battery operation (portable use with rechargeable battery).
USB connectivity for PC data download and report management.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The RMS Helios 702 Portable Spirometer (PFT) is a professional pulmonary function testing device designed for comprehensive lung function assessment. It performs essential spirometry tests like Forced Vital Capacity (FVC), Slow Vital Capacity (SVC), and Maximum Voluntary Ventilation (MVV), and evalu...
